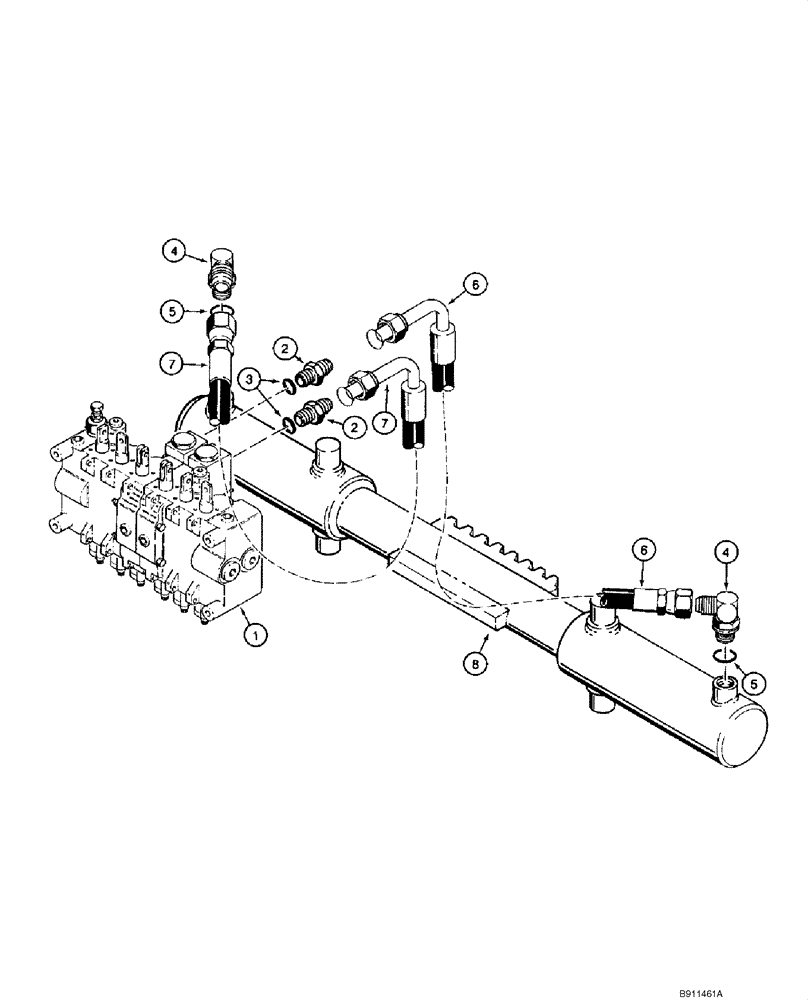

Запчасти Case IH 1845C (08-59) - HYDRAULIC SYSTEM - BACKHOE SWING CYLINDER (NORTH AMERICA), D125 (08) - HYDRAULICS

WITH HOSES AT CONTROL VALVE

1шт.

1

H674500

VALVE

Backhoe; See Fig 08-61 - 08-63

1шт.

1

87400034

VALVE

Backhoe; Replaces H764500; See Fig 08-61 - 08-63

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

H439269

ELBOW

90; Incl. 5

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

H439060

HOSE

1270 mm (50 in); RH

1шт.

7

H439061

HOSE

1040 mm (41 in); LH

1шт.

8

H673149

CYLINDER ASSY.

70 ID x 254 mm strk; Swing; See Fig 08-69; No Longer Available, Order 379623A1

1шт.

8

379623A1

CYLINDER ASSY.,Double Acting, 60.8mm Rod, 254mm Stroke

70 ID x 254 mm strk; See Fig 08-62A

1шт.
