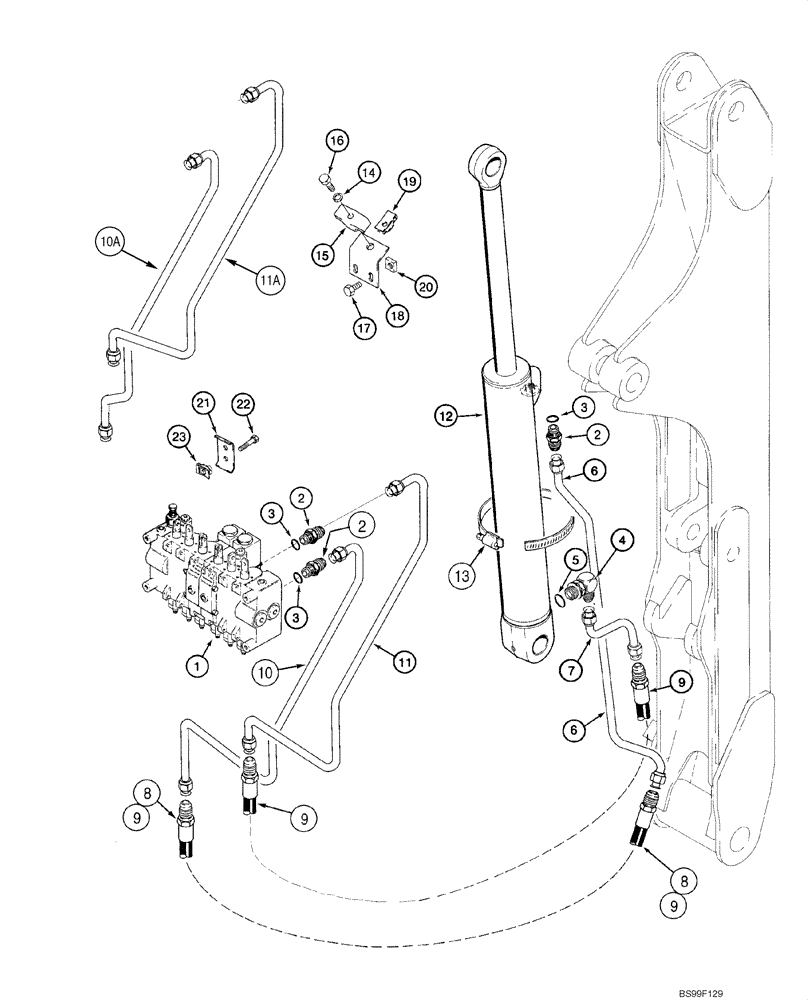

Запчасти Case IH 1845C (08-55) - HYDRAULIC SYSTEM - BACKHOE DIPPER CYLINDER (NORTH AMERICA), D125 (08) - HYDRAULICS

WITH TUBES AT CONTROL VALVE

1шт.

1

H674500

VALVE

Backhoe; See Fig 08-61 - 08-63

1шт.

1

87400034

VALVE

Backhoe; Replaces H764500; See Fig 08-61 - 08-63

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 3

3шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

H439269

ELBOW

90; Incl. 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

255557A1

TUBE

Rod End

1шт.

7

255556A1

TUBE,116, 88 mm Length

Closed End

1шт.

8

256928A1

HOSE,9.52 mm ID x 1480.00 mm

Closed End; No Longer Used, Order 256927A1, Ref 9

1шт.

9

256927A1

HOSE ASSY.

1550 mm (61 in); Rod End

1-2шт.

10

256134A1

TUBE,560, 255 mm Length

Closed End

1шт.

10a

352837A1

TUBE

No Longer Used, Order Ref 10

1шт.

11

256136A1

TUBE,595, 225 mm Length

Rod End

1шт.

11a

352838A1

TUBE

No Longer Used, Order Ref 11

1шт.

12

1346411C3

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 497.8mm Stroke

76 ID x 498 mm strk; Dipper; See Fig 08-67A; Replaces 1346411C2, See Fig 08-67

1шт.

13

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

1шт.

14

492-11031

LOCK WASHER,5/16"

2шт.

15

D120613

CLAMP,20mm ID

1шт.

16

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

17

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

18

253977A1

SUPPORT

1шт.

19

H346650

NUT

5/16-18 U-TYPE

1шт.

20

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

2шт.

21

H45476

CLAMP

2шт.

22

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

23

H346650

NUT

5/16-18 U-TYPE

4шт.
