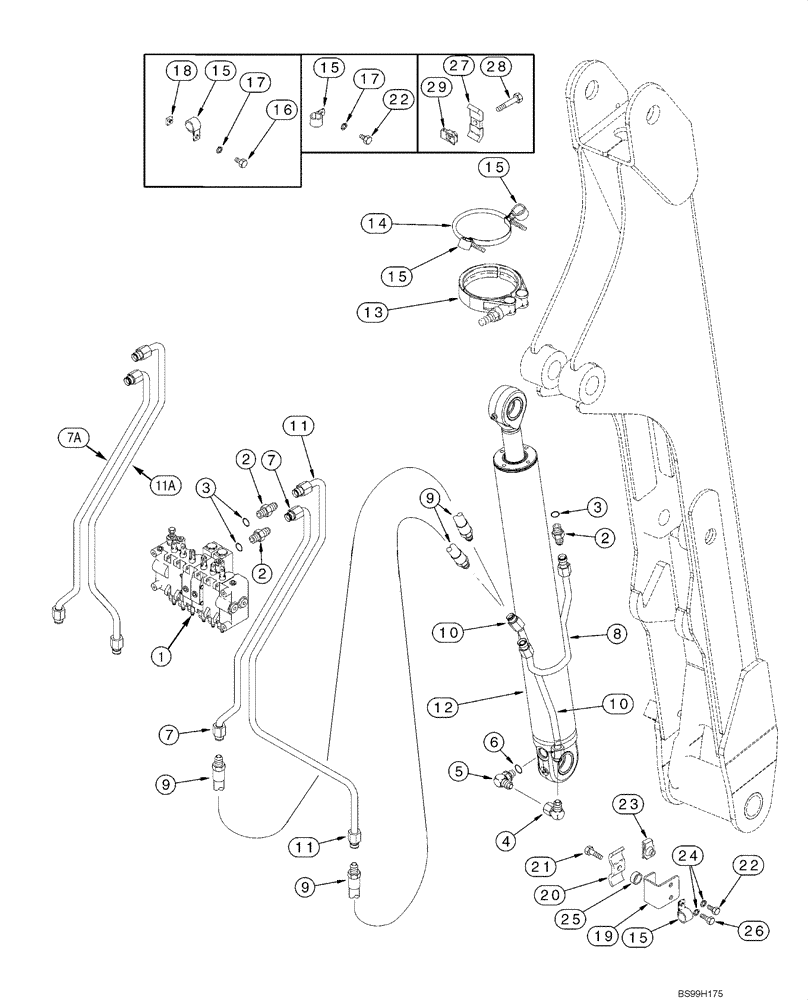

Запчасти Case IH 1845C (08-53) - HYDRAULIC SYSTEM - BACKHOE BOOM CYLINDER (NORTH AMERICA), D125 (08) - HYDRAULICS

WITH TUBES AT CONTROL VALVE

1шт.

1

H674500

VALVE

Backhoe; See Fig 08-61 - 08-63

1шт.

1

87400034

VALVE

Backhoe; Replaces H764500; See Fig 08-61 - 08-63

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 3

3шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

5

H439269

ELBOW

90; Incl. 6

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

256130A1

TUBE,506, 198 mm Length

Rod End

1шт.

7a

352835A1

TUBE

No Longer Used, Order Ref 7

1шт.

8

256820A3

TUBE,343, 110 mm Length

Rod End

1шт.

9

256930A1

HOSE ASSY.

2300 mm (90-1/2 in)

2шт.

10

256816A3

TUBE,12 mm ID, 360 mm Length

Closed End

1шт.

11

256132A1

TUBE,675, 290 mm Length

Closed End

1шт.

11a

352836A1

TUBE

No Longer Used, Order Ref 11

1шт.

12

305352A1

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 551mm Stroke

76 ID x 551 mm strk; Boom; See Fig 08-65

1шт.

13

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

Replaces 214-2192

1шт.

14

304650A1

CLAMP

1шт.

15

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

8шт.

16

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

17

492-11031

LOCK WASHER,5/16"

8шт.

18

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

2шт.

19

255013A1

SUPPORT

2шт.

20

A12032

CLAMP

2шт.

21

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

22

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

23

H346650

NUT

5/16-18 U-TYPE

2шт.

24

492-11031

LOCK WASHER,5/16"

2шт.

25

304086A1

SPACER

2шт.

26

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

27

H45476

CLAMP

2шт.

28

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

5/16 x 1-1/8

4шт.

29

H346650

NUT

5/16-18 U-TYPE

4шт.
