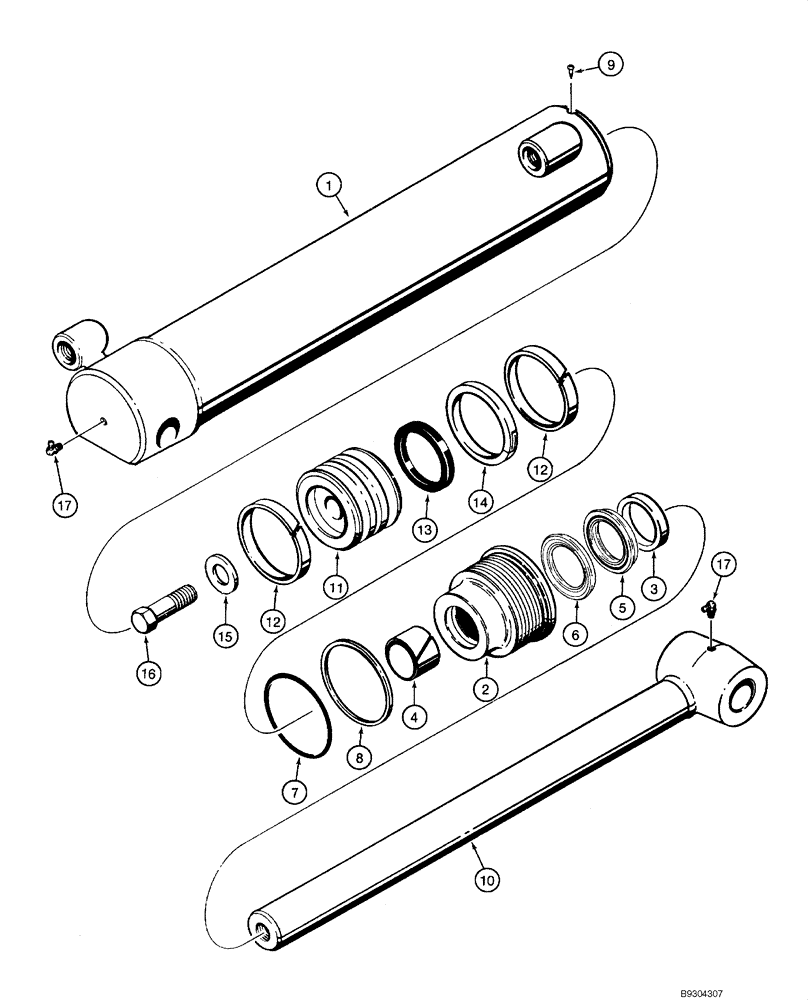

Запчасти Case IH 1845C (08-46) - CYLINDER ASSY - BACKHOE (NORTH AMERICA), D100, D100XR (08) - HYDRAULICS

BOOM, DIPPER, AND BUCKET CYLINDER

1шт.

D100 BACKHOE ONLY

1шт.

BOOM AND BUCKET CYLINDER

1шт.

D100XR BACKHOE ONLY

1шт.

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

76 ID x 372 mm strk; Incl. 1 - 17

2-3шт.

1

G100937

TUBE,76.2 mm DIA x 550.9 mm L

1шт.

NSS

NOT SOLD SEPARAT

Gland, Packing; Incl. 2 - 8; Not Serviced as an Assembly, Order Components

1шт.

2

1542962C1

GLAND

1шт.

3

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

1шт.

4

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

1шт.

1542874C1

SEAL KIT,38.1mm Rod

Incl 5, 6; NSS, Order 1543252C1, See below

1шт.

5

NSS

NOT SOLD SEPARAT

Seal; Rod; Order 1543252C1

1шт.

6

NSS

NOT SOLD SEPARAT

Buffer Seal; Order 1543252C1

1шт.

1543252C1

SEAL KIT

Incl. 3 - 8, 12 - 14

1шт.

7

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

8

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

1шт.

9

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

10

G101357

ROD

38 mm (1/2 in) dia

1шт.

11

G100442

PISTON

1шт.

12

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

2шт.

13

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

1шт.

14

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

1шт.

15

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

1шт.

16

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

1шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.
