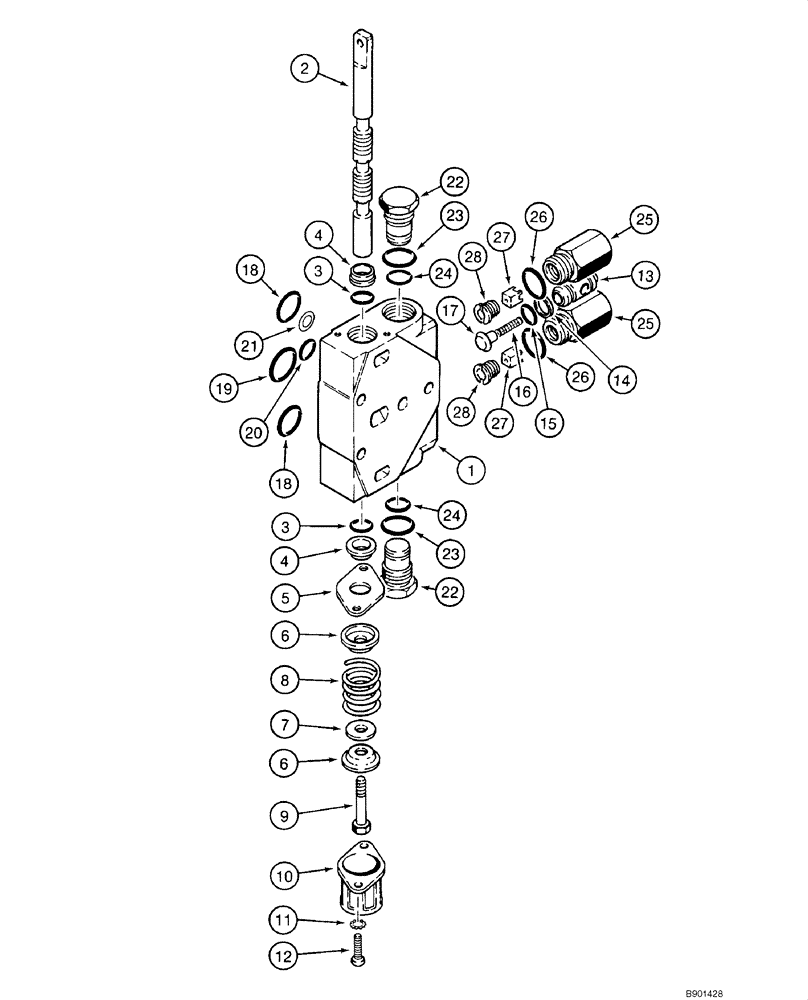

Запчасти Case IH 1845C (08-41) - VALVE, CONTROL - BACKHOE (NORTH AMERICA), D100 , D100XR (08) - HYDRAULICS

H672636

VALVE

Backhoe; Manufactured By Kontak; Incl. 08-38 - 08-42; No Longer Available, Order H674300; See Figs 08-43 - 08-45

1шт.

H674591

VALVE

Swing; Incl. 1 - 28

1шт.

H674594

VALVE

Bucket; Incl. 1 - 24

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

4

N14043

WIPER SEAL

2шт.

5

N14042

SHIN

2шт.

6

H401208

SEAT PLATE

2шт.

7

1329639C1

SPACER

1шт.

8

H401216

SPRING

1шт.

9

H401190

SCREW

1шт.

10

H438212

CAP

1шт.

11

493-41026

LOCK WASHER,Ext Tooth, 1/4"

4шт.

12

440-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

2шт.

13

H438205

VALVE

1шт.

14

N14047

GASKET

1шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

16

H438206

SPRING

1шт.

17

H438207

GUIDE

1шт.

18

H438208

O-RING

2шт.

19

H438209

O-RING

1шт.

20

H438210

O-RING

1шт.

21

H438211

SHIM

1шт.

N14057

PLUNGER ASSY.

Incl. 22 - 24

2шт.

22

NSS

NOT SOLD SEPARAT

Plug

1шт.

23

H398685

O-RING

8 x 3/32

1шт.

24

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

H674020

RESTRICTOR

Incl. 25 - 28; Load Check; Swing Section; Used with H674591

2шт.

25

NSS

NOT SOLD SEPARAT

Body

1шт.

26

H398685

O-RING

8 x 3/32

1шт.

27

H437221

VALVE

0.093 in

1шт.

28

NSS

NOT SOLD SEPARAT

Plug

1шт.
