Запчасти Case IH 1845C (08-39) - VALVE, CONTROL - BACKHOE (NORTH AMERICA), D100, D100XR (08) - HYDRAULICS

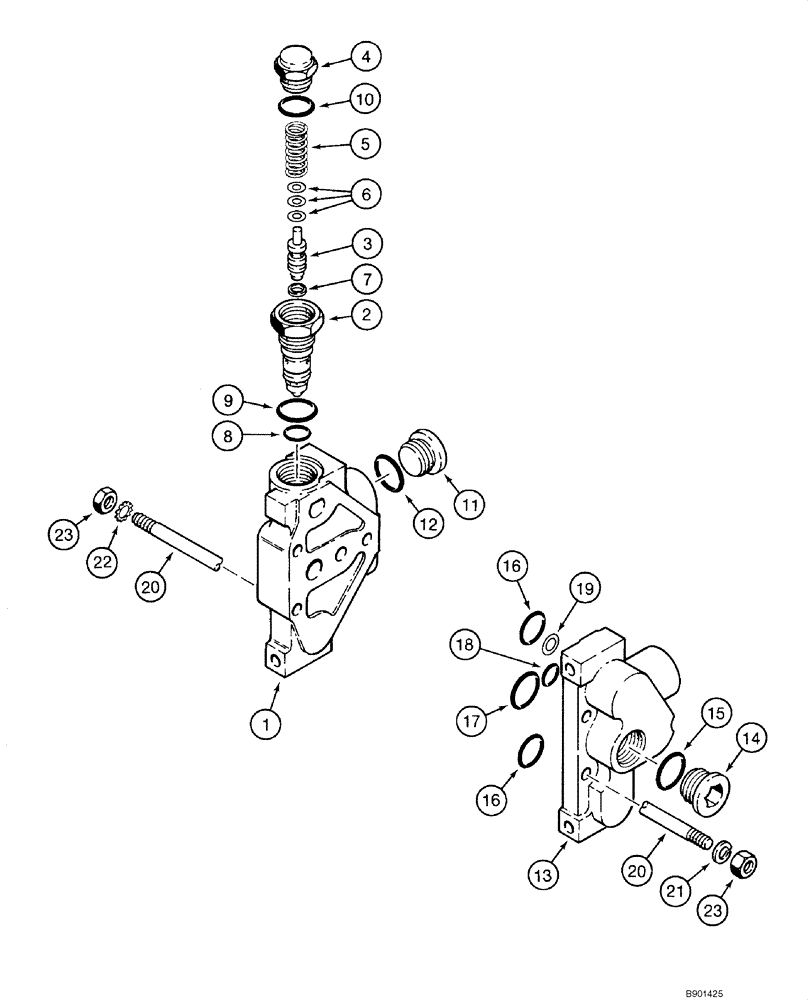

Схема запчастей Case IH 1845C - (08-39) - VALVE, CONTROL - BACKHOE (NORTH AMERICA), D100, D100XR (08) - HYDRAULICS
8
15
20
12
7
16
2
10
9
4
6
23
1
21
5
19
20
18
22
23
14
13
16
17
11
3

Артикул

Название

Примечание

Количество

H672636

VALVE

Backhoe; Manufactured By Kontak; Incl. 08-38 - 08-42; No Longer Available, Order H674300; See Figs 08-43 - 08-45

1шт.

H437197

MOUNTING PARTS

Inlet; Incl. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

H674017

VALVE

Main; Incl. 2 - 10

1шт.

2

NSS

NOT SOLD SEPARAT

Body

1шт.

3

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

4

NSS

NOT SOLD SEPARAT

Cap

1шт.

5

H437223

SPRING

1шт.

6

H398644

BLOCK

0,08 mm (0,003 in)

1шт.

7

H398651

BLOCK

0,51 mm (0,020 in)

1шт.

8

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

9

H398685

O-RING

8 x 3/32

1шт.

10

238-5117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

1шт.

11

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Incl. 12

1шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

H674021

OUTLET

Incl. 13 - 19; Not Available as an Assembly, Order Components

1шт.

13

N13758

COVER

1шт.

14

86512512

PLUG,7/8" - 14 ORB

Incl. 15

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

16

H438208

O-RING

2шт.

17

H438209

O-RING

1шт.

18

H438210

O-RING

1шт.

19

H438211

SHIM

1шт.

N14041

SET

Incl. 20 - 23

3шт.

20

NSS

NOT SOLD SEPARAT

Rod, Tie

1шт.

21

492-11038

LOCK WASHER,3/8"

1шт.

22

93-41039

LOCK WASHER,Ext Tooth, 3/8"

1шт.

23

425-116

NUT,3/8" - 24, Gr 5

2шт.

Выбрано товаров: 28
