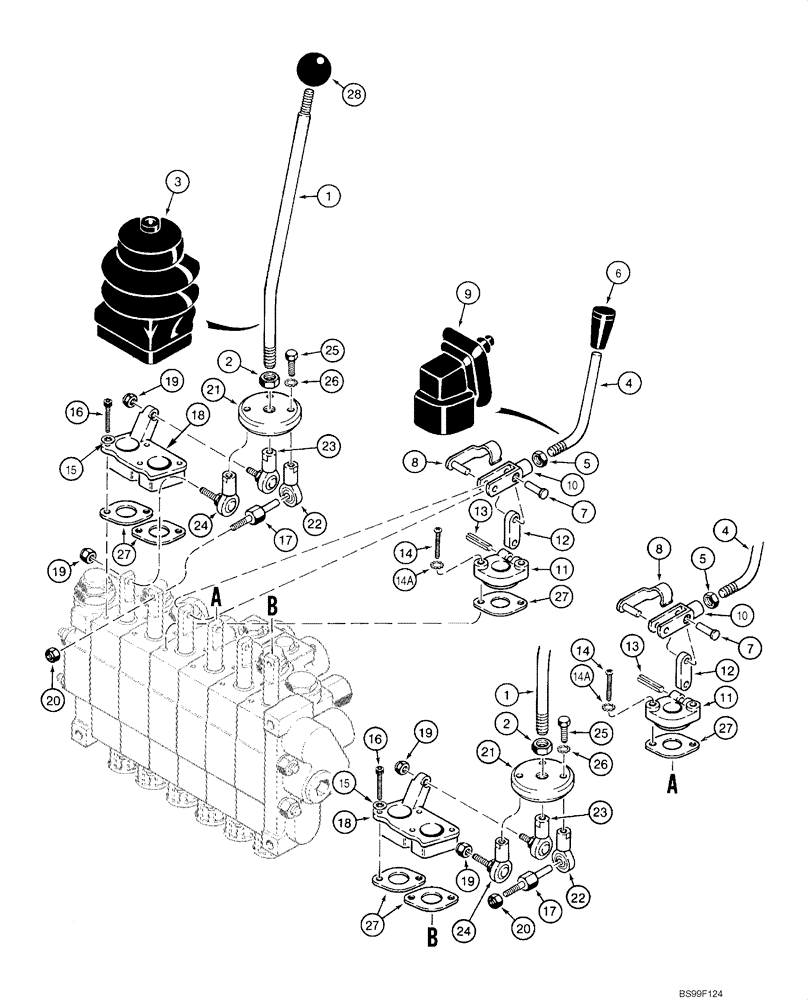

Запчасти Case IH 1845C (08-38) - VALVE, CONTROL - BACKHOE (NORTH AMERICA), D100, D100XR (08) - HYDRAULICS

H672636

VALVE

Backhoe; Manufactured By Kontak; Incl. 08-38 - 08-42; No Longer Available, Order H674300; See Figures 08-43 - 08-45

1шт.

H674023

HANDLE

Incl. 1 - 3; Not Available as an Assembly, Order Components

2шт.

1

H438215

LEVER

Dual Control

1шт.

2

425-117

NUT,7/16"-20, G5

1шт.

3

H438216

BOOT

1шт.

H674024

HANDLE

Stabilizer; Incl. 4 - 10

2шт.

H674024

HANDLE

Incl. 4 - 6

2шт.

4

NSS

NOT SOLD SEPARAT

Lever

1шт.

5

425-116

NUT,3/8" - 24, Gr 5

1шт.

6

H398867

GRIP

1шт.

7

427-4077

CLEVIS PIN,1/4" x .770"

1шт.

8

N14124

CIRCLIP

1шт.

9

N14125

BOOT

1шт.

10

H438219

CLEVIS

1шт.

H674596

BRACKET

Mounting; Incl. 11 - 14A

2шт.

11

H438217

BRACKET

1шт.

12

H438218

LINK

1шт.

13

38-11616

LOCK PIN,1/4" x 1", Slotted

1шт.

14

276-24720

SELF-TAP SCREW,Hex Hd, 1/4" x 1 1/4"

2шт.

14a

493-41026

LOCK WASHER,Ext Tooth, 1/4"

2шт.

H674022

BRACKET

Mounting; Incl. 15 - 26

2шт.

15

493-41026

LOCK WASHER,Ext Tooth, 1/4"

4шт.

16

61-32520

HEX SOC SCREW,1/4"-20 x 1 1/4"

4шт.

17

H437229

GUIDE

1шт.

18

H437230

BRACKET

1шт.

19

H438214

NUT

2шт.

20

H438213

NUT

1шт.

H674595

ADAPTER

Incl. 21 - 26

2шт.

21

H437228

DISC

1шт.

22

H437227

END

, Serial Range: Plate-Guide

1шт.

23

H437225

END

, Serial Range: Plate-Bracket

1шт.

24

H437226

END

Plate to Spool Eye

1шт.

25

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

26

893-11008

LOCK WASHER,Ext Tooth, M8

3шт.

27

N14042

SHIN

6шт.

28

CAS31375

KNOB

2шт.
