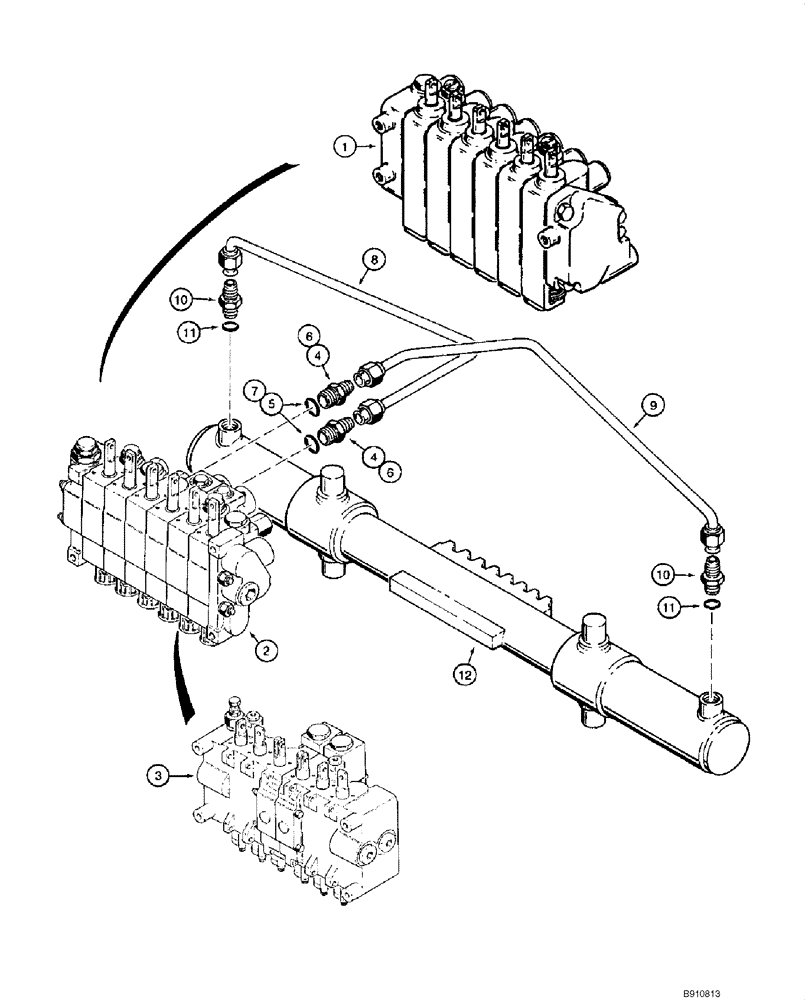

Запчасти Case IH 1845C (08-36) - HYDRAULIC SYSTEM - BACKHOE SWING CYLINDER (NORTH AMERICA), D100, D100XR (08) - HYDRAULICS

1

H513788

LOCK VALVE

Backhoe; Manufactured By Cessna; See Fig 08-37; D100XR Backhoe Only; No Longer Available, Order HR513788

1шт.

2

H672636

VALVE

Backhoe; Manufactured By Kontak; See Figs 08-38 - 08-42; No Longer Available, Order H674300

1шт.

3

H674300

VALVE

Backhoe; Manufactured By Dukes; See Fig 08-43 - 08-45

1шт.

3

87400023

VALVE

Backhoe; Replaces H674300; See Fig 08-43 - 08-45

1шт.

4

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. 5; Used with H672636

2шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 7; Used with H513788, H674300

2шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

H669697

TUBE,12.7 mm OD

Used with Cessna Valve Only

1шт.

8

H672643

TUBE,12.7 mm OD

Used with Kontak Valve Only

1шт.

8

H674419

TUBE,0.5" OD

Used with Dukes Valve Only

1шт.

9

H669705

TUBE ASSY.,12.7 mm OD

Used with Cessna Valve Only

1шт.

9

H672644

TUBE,12.7 mm OD

Used with Kontak Valve Only

1шт.

9

H674420

TUBE,0.5" OD

Used with Dukes Valve Only

1шт.

10

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 11

2шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

H514125

CYLINDER ASSY.

70 ID x 203 mm strk; Swing; See Fig 08-50; No Longer Available, Order 384865A1

1шт.

12

384865A1

CYLINDER ASSY.

2-3/4 (70) ID x 8 in (203 mm); See Fig 08-69B

1шт.
