Запчасти Case IH 1845C (08-35) - HYDRAULIC SYSTEM - STABILIZER CYLINDER (NORTH AMERICA), D100, D100XR (08) - HYDRAULICS

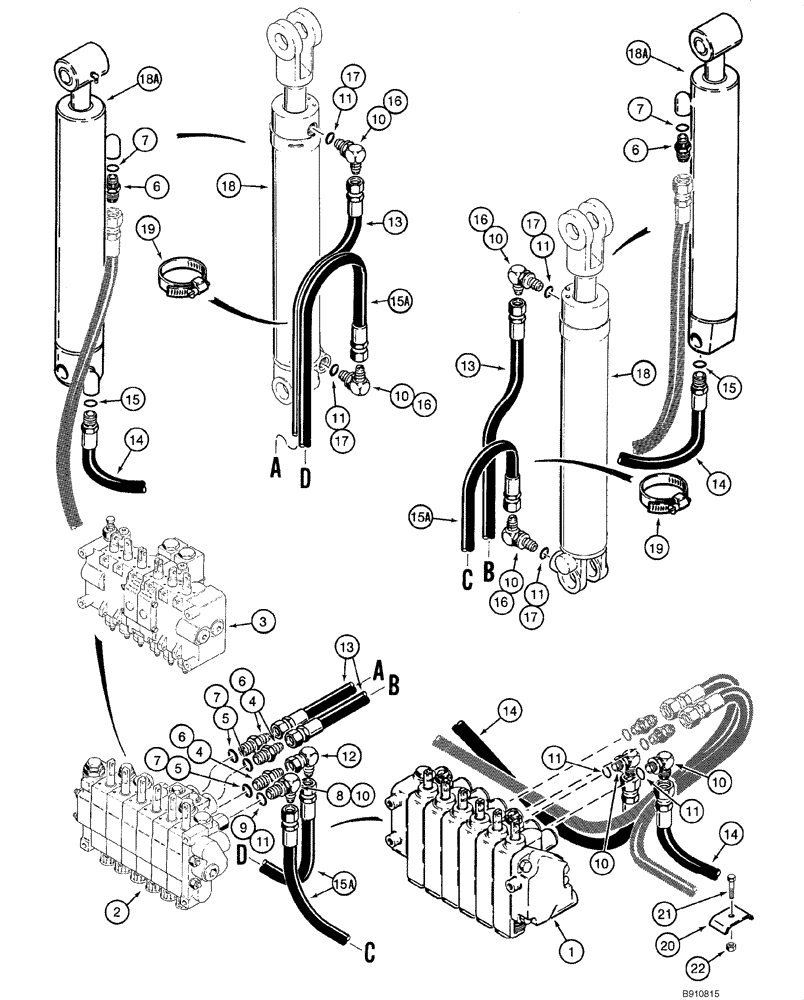

Схема запчастей Case IH 1845C - (08-35) - HYDRAULIC SYSTEM - STABILIZER CYLINDER (NORTH AMERICA), D100, D100XR (08) - HYDRAULICS
21
3
7
5
14
13
12
8
17
16
11
18
15
9
4
4
16
10
6
11
14
14
10
14
6
10
7
17
18a
19
15
13
15a
2
11
16
22
5
18
17
11
6
1
7
10
13
11
15a
10
16
10
15a
6
11
20
10
19
18a
17
11
7

Артикул

Название

Примечание

Количество

1

H513788

LOCK VALVE

Backhoe; Manufactured By Cessna; See Fig 08-37; D100XR Backhoe Only; No Longer Available, Order HR513788

1шт.

2

H672636

VALVE

Backhoe; Manufactured By Kontak; See Fig 08-38 - 08-42; No Longer Available, Order H674300

1шт.

3

H674300

VALVE

Backhoe; Manufactured By Dukes; See Fig 08-43 - 08-45

1шт.

3

87400023

VALVE

Backhoe; Replaces H674300; See Fig 08-43 - 08-45

1шт.

4

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. 5; Used with H672636

2шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

Incl. 7; Used with H513788, H674300

2шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. 9; Used with H672636

1шт.

10

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Incl. 11; Used with H513788, H674300

2-5шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

Used with H672636

1шт.

12

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

Used with H513788, H674300

1шт.

13

H243790

HYDRAULIC HOSE,6.35 mm ID x 1473.20 mm, SAE 100R1

Used with Cessna Valve Only

2шт.

13

H434457

HOSE

1800 mm (70-7/8 in); Used with Kontak Valve Only

2шт.

13

H437861

HOSE

1500 mm (59-1/8 in); Used with Dukes Valve Only

2шт.

14

H264564

HYDRAULIC HOSE,9.52 mm ID x 914.40 mm, SAE 100R1

Incl. 15; Used with Cessna Valve Only

2шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15a

H375774

HOSE,9.53mm ID x 1500mm L, SAE 100R1

Used with Kontak Valve Only

2шт.

15a

H437862

HOSE

1800 mm (70-7/8 in); Used with Dukes Valve Only

2шт.

16

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 17; Used with Kontak Valve only

4шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

18

REF

INSTRUCTION

Cylinder; Stabilizer; See Figs 08-48, 08-49; Used with Kontak or Dukes Valve Only

2шт.

18a

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

76 ID x 372 mm strk; Stabilizer; See Fig 08-46; Used with Cessna Valve Only

2шт.

19

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

2шт.

20

H46888

CLAMP

Used with Cessna Valve Only; D100XR Backhoe Only

2шт.

21

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

D100XR Backhoe Only; Used with Cessna Valve Only

2шт.

22

230-4215

NUT,5/16"-18, GA

D100XR Backhoe Only; Used with Cessna Valve Only

2шт.

Выбрано товаров: 28
