Запчасти Case IH 1845C (08-34) - HYDRAULIC SYSTEM - BACKHOE DIPPER CYLINDER (NORTH AMERICA), D100, D100XR (08) - HYDRAULICS

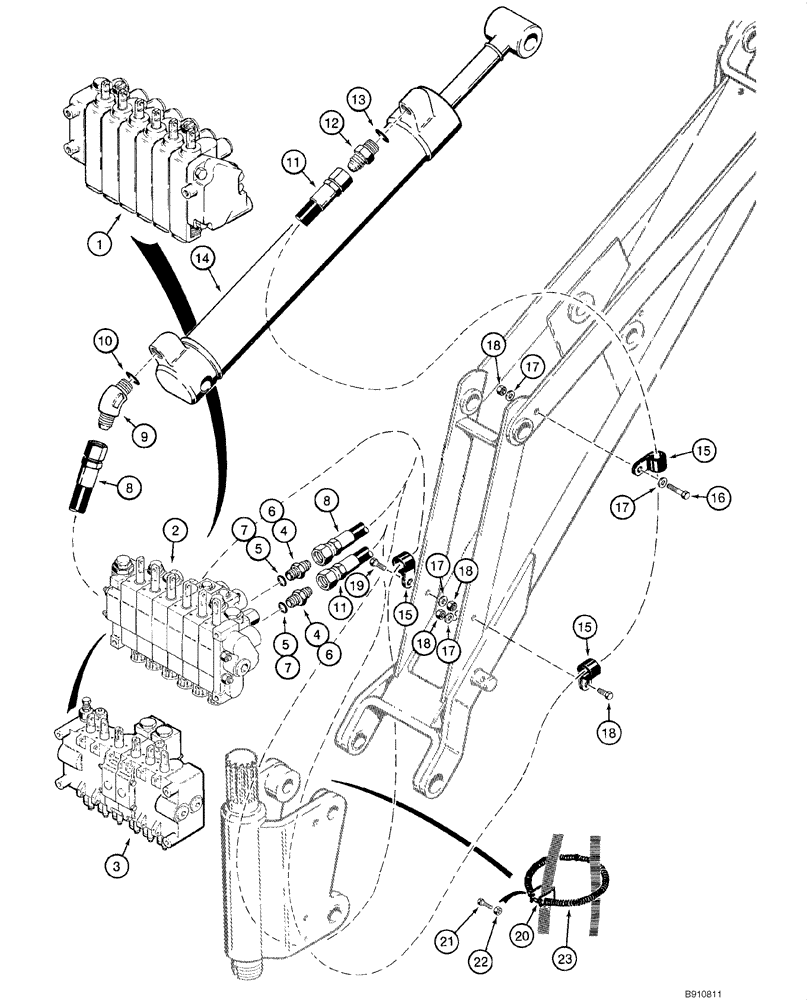

Схема запчастей Case IH 1845C - (08-34) - HYDRAULIC SYSTEM - BACKHOE DIPPER CYLINDER (NORTH AMERICA), D100, D100XR (08) - HYDRAULICS
18
16
21
2
9
5
17
8
8
1
3
17
15
11
7
4
18
6
15
10
18
5
4
23
15
7
22
14
11
6
13
17
12
17
19
18
20

Артикул

Название

Примечание

Количество

1

H513788

LOCK VALVE

Backhoe; Manufactured By Cessna; See Fig 08-37; D100XR Backhoe Only; No Longer Available, Order HR513788

1шт.

2

H672636

VALVE

Backhoe; Manufactured By Kontak; See Fig 08-38 - 08-42; No Longer Available, Order H674300

1шт.

3

H674300

VALVE

Backhoe; Manufactured By Dukes; See Fig 08-43 - 08-45

1шт.

3

87400023

VALVE

Backhoe; Replaces H674300; See Fig 08-43 - 08-45

1шт.

4

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. 5; Used with H672636

2шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 7; Used with H513788, H674300

2шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

H434465

HOSE

1600 mm (63 in)

1шт.

8

H268524

HYDRAULIC HOSE,9.52 mm ID x 1473.20 mm, SAE 100R1

D100XR Backhoe Only; Used with Cessna Valve Only

1шт.

9

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 10

1шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

11

H434464

HOSE

2200 mm (86-5/8 in)

1шт.

11

H331637

HYDRAULIC HOSE,9.52 mm ID x 2082.80 mm, SAE 100R1

D100XR Backhoe Only; Used with Cessna Valve Only

1шт.

12

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 13

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

76 ID x 372 mm strk; Dipper; See Fig 08-46; D100 Backhoe Only

1шт.

14

G109376

CYLINDER BLOCK

76 ID x 605 mm strk; Dipper; See Fig 08-47; D100XR Backhoe Only

1шт.

15

H51763

CLAMP

3шт.

16

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

17

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

4шт.

18

230-4214

LOCK NUT,1/4"-20, GA

3шт.

19

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

20

H52571

CLAMP

D100XR Backhoe Only; Used with Cessna Valve Only

1шт.

21

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

D100XR Backhoe Only; Used with Cessna Valve Only

1шт.

22

230-4214

LOCK NUT,1/4"-20, GA

D100XR Backhoe Only; Used with Cessna Valve Only

1шт.

23

H52548

SPRING

D100XR Backhoe Only; Used with Cessna Valve Only

1шт.
