Запчасти Case IH 1845C (08-32) - HYDRAULIC SYSTEM - BACKHOE BOOM CYLINDER (NORTH AMERICA), D100, D100XR (08) - HYDRAULICS

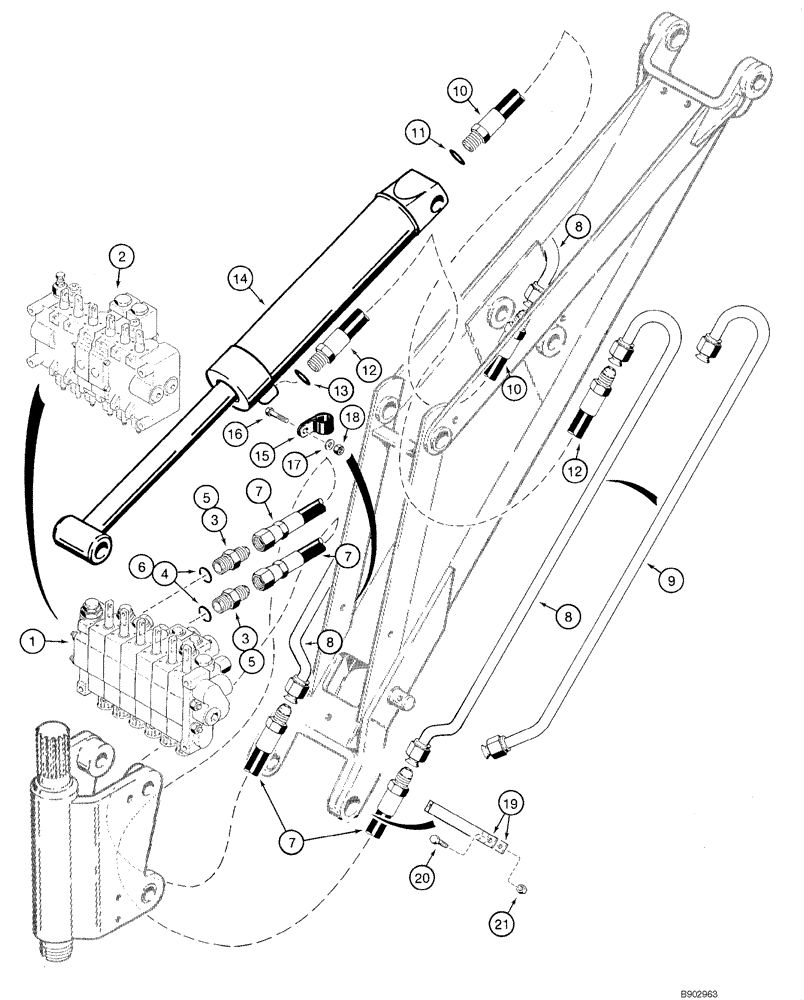

Схема запчастей Case IH 1845C - (08-32) - HYDRAULIC SYSTEM - BACKHOE BOOM CYLINDER (NORTH AMERICA), D100, D100XR (08) - HYDRAULICS
9
21
7
12
5
10
13
19
10
20
18
8
3
14
8
5
7
8
17
11
1
16
15
4
12
7
3
6
2

Артикул

Название

Примечание

Количество

1

H672636

VALVE

Backhoe; Manufactured By Kontak; See Figs 08-38 - 08-42; No Longer Available, Order H674300

1шт.

2

H674300

VALVE

Backhoe; Manufactured By Dukes; See Figs 08-43 - 08-45

1шт.

2

87400023

VALVE

Backhoe; Replaces H674300; See Fig 08-43 - 08-45

1шт.

3

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. 4; Used with H672636

2шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

5

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 4; Used with H672636

2шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

H200378

HOSE,0.38" ID x 45.00", SAE 100R1

2шт.

8

H593392

TUBE,0.5" OD

D100 Backhoe Only

2шт.

9

H669804

TUBE,1.27 mm OD x 1065, 35 mm L

D100XR Backhoe Only

2шт.

10

H244921

HYDRAULIC HOSE,9.52 mm ID x 381.00 mm, SAE 100R1

Incl. 11

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

H268540

HYDRAULIC HOSE,9.52 mm ID x 889.00 mm, SAE 100R1

Incl. 13

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

76 ID x 372 mm strk; Boom; See Fig 08-46

1шт.

15

H51763

CLAMP

2шт.

16

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

17

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

2шт.

18

230-4214

LOCK NUT,1/4"-20, GA

2шт.

19

H429696

MOUNTING CLIP

2шт.

20

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

21

230-4214

LOCK NUT,1/4"-20, GA

2шт.

Выбрано товаров: 22
