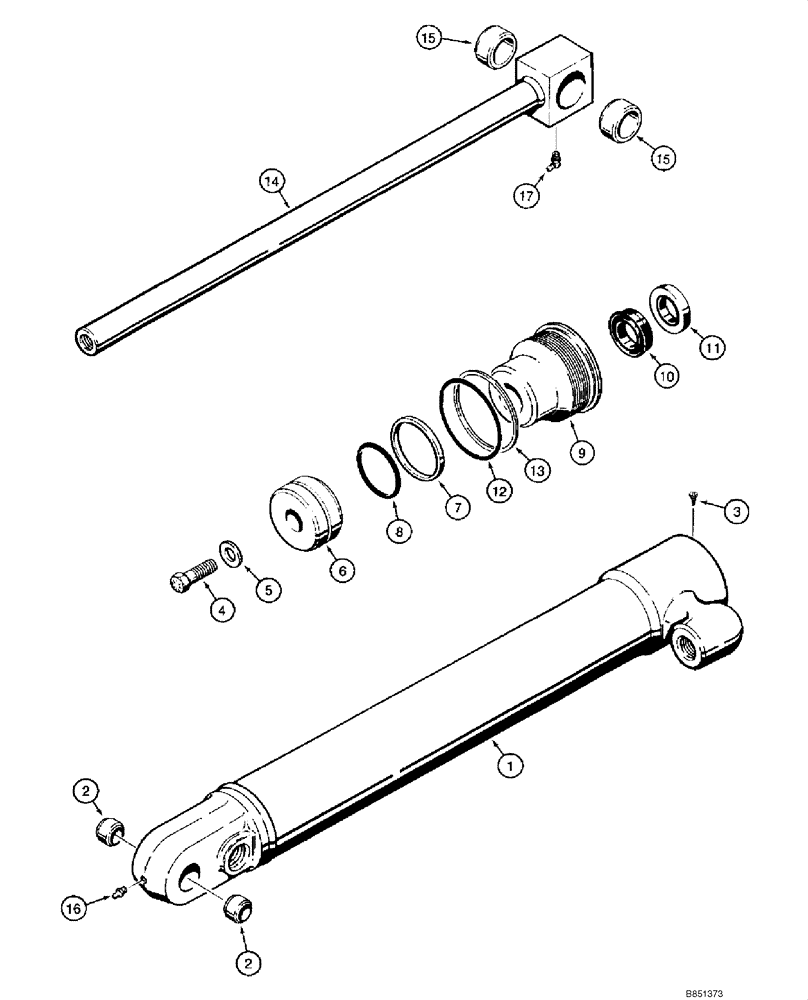

Запчасти Case IH 1845C (08-29) - CYLINDER ASSY - LOADER BUCKET (08) - HYDRAULICS

G34926

CYLINDER

64 ID x 540 mm strk; Loader Bucket; Incl. 1 - 17; No Longer Available, For Service Order 118156A1; See Fig 08-28

2шт.

118156A1R

1845C - CASE UNI-LOADER SKID STEER LOADER (NORTH AMERICA) (1/86-); Reman for new P/N G34926

REMAN-HYD CYLINDER

2шт.

118156A1C

Return Number

CORE-HYD CYLINDER

1шт.

1

G34927

TUBE,2.5" DIA x 28.93" L

Incl. 2; No Longer Available, For Service Order 118115A2, 118157A1, 128728A1; See Fig 08-28

1шт.

2

G35361

BUSHING,25.7mm ID x 31.82mm OD x 15.7mm L

2шт.

3

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

4

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

5

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

6

G104098

PISTON

No Longer Available, For Service Order G33138, G100714; See Fig 08-28

1шт.

7

G33140

RING,59.68mm ID x 64.26mm OD x 3.94mm Thk

1шт.

8

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

1шт.

G103568

GLAND

Incl. 9 - 13; Not Serviced as an Assembly, Order 125163A1, Ref 9; 128728A1; See Fig 08-28

1шт.

9

125163A1

CYLINDER END CAP

Has 1/4" Groove At Top Of Threads, Spanner Wrench Holes @ 58.7 Mm Centers

1шт.

10

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

1шт.

11

D95141

WIPER SEAL

1шт.

12

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

13

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

1шт.

14

G34932

PISTON ROD

32 mm (1/4 in); Incl. 15; No Longer Available, For Service Order 242317A1; See Fig 08-28, If Outer Molded Rings are Worn Upgrade to G33138

1шт.

15

G35361

BUSHING,25.7mm ID x 31.82mm OD x 15.7mm L

2шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

G109476

GASKET KIT

Incl. 7, 8, 10 - 13; No Longer Available, For Service Order 128728A1; See Fig 08-28

1шт.
