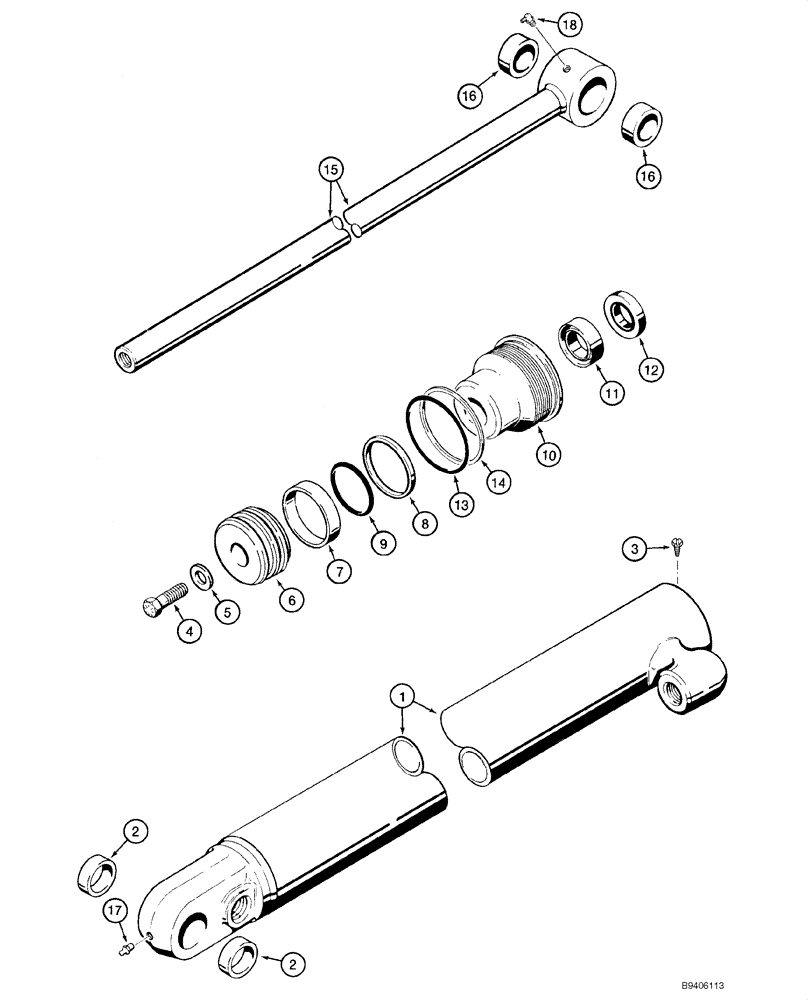

Запчасти Case IH 1845C (08-28) - CYLINDER ASSY - LOADER BUCKET (08) - HYDRAULICS

118156A1

CYLINDER,Double Acting, 31.8mm Rod, 539.8mm Stroke

65 ID x 540 mm strk; Loader Bucket; Incl. 1 - 18

2шт.

118156A1R

1845C - CASE UNI-LOADER SKID STEER LOADER (NORTH AMERICA) (1/86-)

REMAN-HYD CYLINDER

2шт.

118156A1C

Return Number

CORE-HYD CYLINDER

1шт.

1

118157A1

TUBE,63.32mm Bore Dia

Incl. 2

1шт.

2

G35361

BUSHING,25.7mm ID x 31.82mm OD x 15.7mm L

2шт.

3

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

4

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

5

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

6

G33138

PISTON,62.94mm Bore, 31.85mm Rod, 25.4mm W

1шт.

7

G100714

RING

1шт.

8

G33140

RING,59.68mm ID x 64.26mm OD x 3.94mm Thk

1шт.

9

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

1шт.

NSS

NOT SOLD SEPARAT

Gland, Cylinder; Incl. 10 - 14

1шт.

10

118115A2

GLAND

Replaces 118115A1; Has 1/4" "Below" The Threads, Spanner Wrench Holes @ 63.5 Mm Centers

1шт.

11

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

1шт.

12

D95141

WIPER SEAL

1шт.

13

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

14

G109297

BACK-UP RING,56.9mm ID x 63.5mm OD x 1.4mm Thk

1шт.

15

242317A1

PISTON ROD

Incl. 16; Replaces G34932

1шт.

16

G35361

BUSHING,25.7mm ID x 31.82mm OD x 15.7mm L

2шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

18

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

128728A1

SEAL KIT

Incl. 7 - 9, 11 - 14

1шт.
