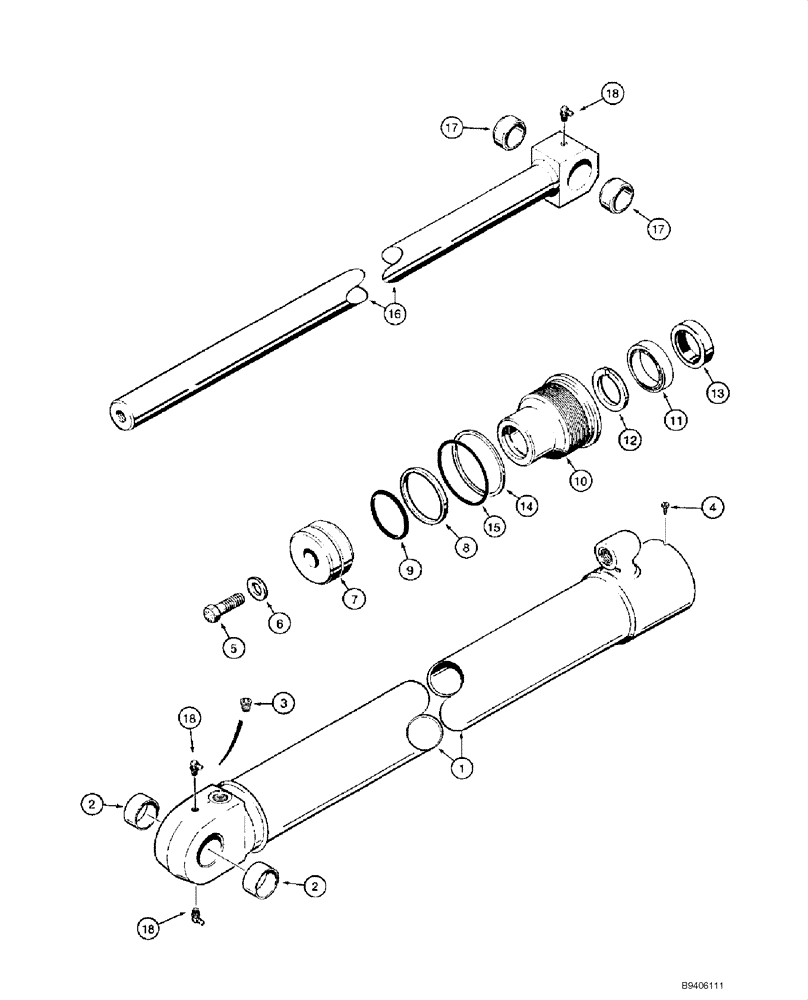

Запчасти Case IH 1845C (08-26) - CYLINDER ASSY - LOADER LIFT (08) - HYDRAULICS

G109773

CYLINDER

64 ID x 749 mm strk; Loader Lift; Incl. 1 - 18; No Longer Available, Order 117903A1; See Fig 08-27; For Mounting, See Fig 09-01

2шт.

G109777

CYLINDER

64 ID x 29-1/2 mm strk; Loader Lift; Incl. 1 - 18; Service Replacement For G109773; No Longer Available, Order 117903A1; See Fig 08-27; For Mounting, See Fig 09-01

2шт.

117903A1R

REMAN-HYD CYLINDER

1845C (1/86), Reman for new P/N G109777

2шт.

117903A1C

CORE-HYD CYLINDER

Return Number

1шт.

1

G109778

TUBE,2.497" ID x 2.5" DIA x 36.69" L

Incl. 2; No Longer Available, For Service Order 129012A1, 117830A2, 128725A1; See Fig 08-27

1шт.

2

D34359

BUSHING,25.63mm ID x 34.92mm OD x 15.75mm L

2шт.

3

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

If used

1шт.

4

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

5

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

6

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

7

S220090

PISTON

1шт.

8

G33140

RING,59.68mm ID x 64.26mm OD x 3.94mm Thk

1шт.

9

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

1шт.

G104008

GLAND

Incl. 10 - 15; Not Serviced as an Assembly; Order Component Parts Below

1шт.

10

1542960C1

GLAND

1шт.

11

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

1шт.

12

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

1шт.

13

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

1шт.

14

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

1шт.

15

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

16

242313A1

PISTON ROD

Incl. 17; Replaces G34924, 175659A1

1шт.

17

G35361

BUSHING,25.7mm ID x 31.82mm OD x 15.7mm L

2шт.

18

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2-3шт.

G109458

GASKET KIT

Incl. 8, 9, 11 -15; No Longer Available, Order 128725A1; See Fig 08-27

1шт.
