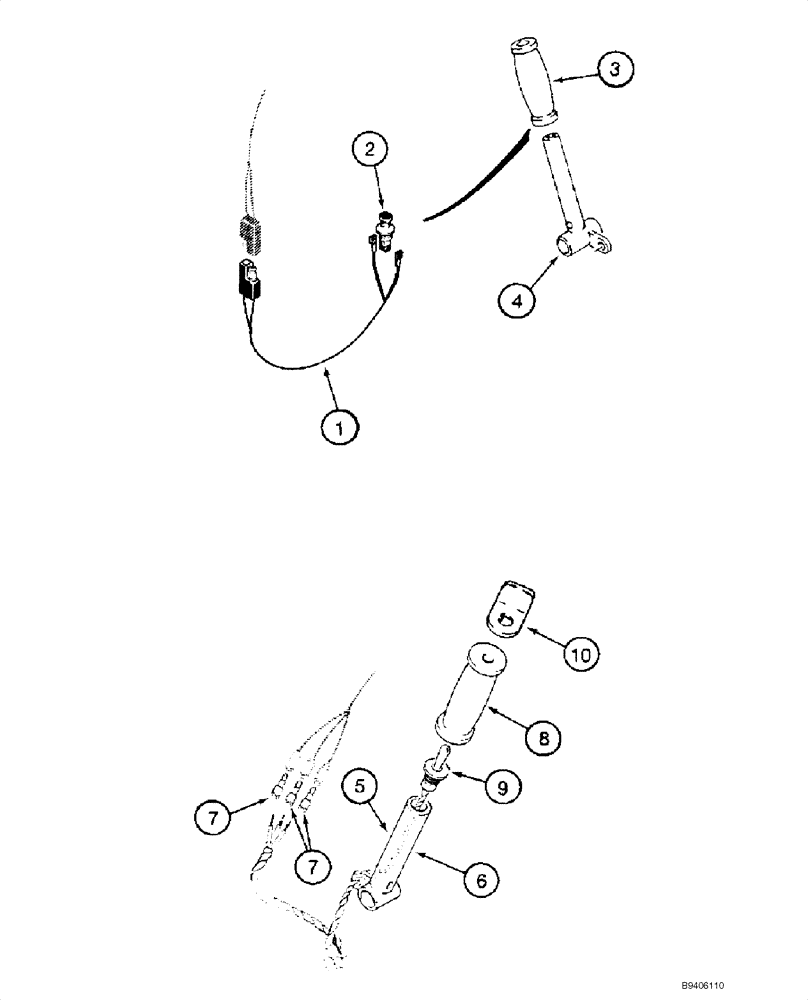

Запчасти Case IH 1845C (08-25) - CONTROLS - HYDRAULIC, OPTIONAL HIGH FLOW (08) - HYDRAULICS

MODELS WITH SINGLE DIRECTIONAL SOLENOID VALVE

1шт.

1

D134076

HARNESS

High Flow Switch; Ref 1 - 4A, Used on Models with Single Directional Solenoid Valves

1шт.

2

112653A1

SWITCH

High Flow; Ref 1 - 4A, Used on Models with Single Directional Solenoid Valves

1шт.

3

D133282

HANDLE

1шт.

4

D133283

LEVER

1шт.

4a

347922A1

HANDLE

Not Illustrated; See Fig 06-01

1шт.

MODELS WITH BI-DIRECTIONAL SOLENOID VALVE

1шт.

5

182100A1

LEVER ASSY.

Incl. 5 - 10, Used on Models with Bi-Directional Solenoid Valves; Not Available As An Assembly, Order Component Parts Below; Replaces 120225A1

1шт.

6

H439164

LEVER

1шт.

7

E20680

TERMINAL CONNECTOR,Male

1шт.

8

D133282

HANDLE

3шт.

9

177673A1

PRESSURE SWITCH

Replaces 101615A1

1шт.

10

182099A1

SHIELD

Replaces 123676A1

1шт.
