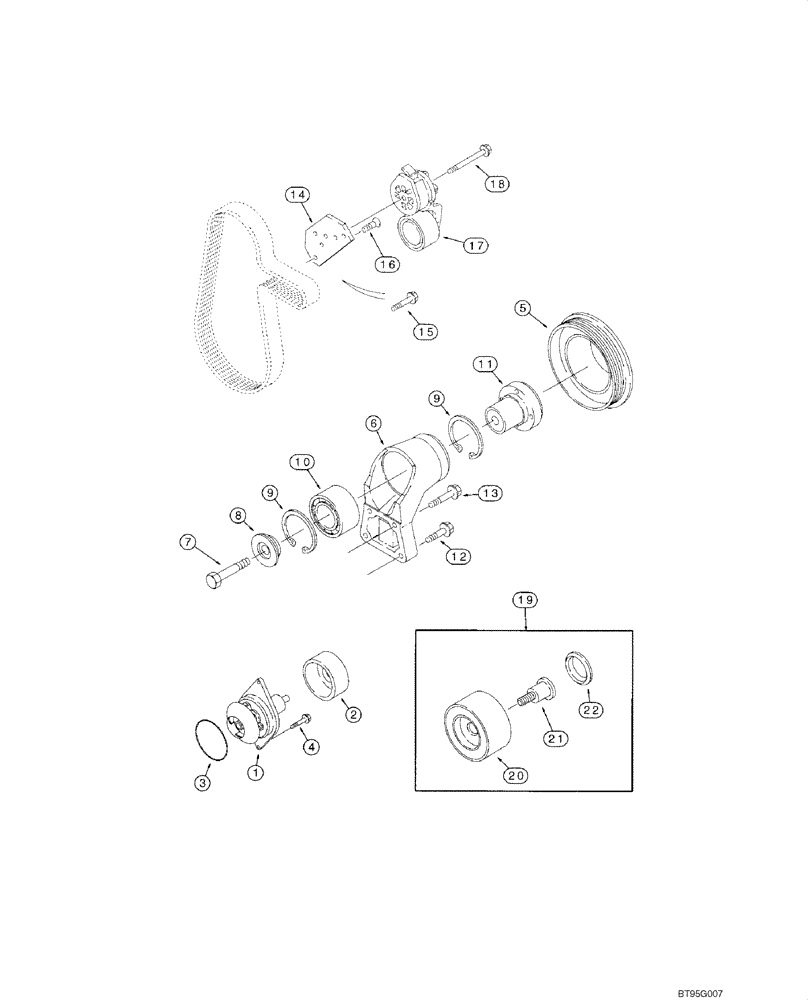

Запчасти Case IH 1845C (02-09) - WATER PUMP SYSTEM, 4-390 EMISSIONS CERTIFIED ENGINE, ASN JAF0250483 (02) - ENGINE

J286277

PUMP, WATER

Replaces J802358, J802970; Incl. 1- 3

1шт.

J286278R

REMAN-WATER PUMP

1845C w/Emissionized Engine ASN JAF0250483

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Pump Assy

1шт.

2

NSS

NOT SOLD SEPARAT

Pulley

1шт.

3

J906698

RUBBER SEAL,Square, 5.16mm Thk x 88.27mm ID

3-1/2 ID x 3/16; Replaces 238-5341

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J914462

PULLEY,163mm OD

1.1:1 Ratio; North American Models

1шт.

5

87739401

PULLEY,207.26mm OD

0.87:1 Ratio; European Models; Replaces J914461

1шт.

6

J911205

BRACKET

Incl. 7 - 11

1шт.

7

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

M10 x 70

1шт.

8

J923044

RETAINER

1шт.

9

100-21250

SNAP RING,2.50", Int, #250

2шт.

10

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

11

J911924

HUB

1шт.

12

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

Replaces 845-8030

2шт.

13

854-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 10.9

Replaces 845-8040

4шт.

14

J925195

SUPPORT

North America Only

1шт.

14

J925194

SUPPORT

Europe Only

1шт.

15

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

1шт.

16

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

1шт.

17

J934817

BELT TENSIONER

Replaces J918944; No Longer Available; Order J936203

1шт.

17

J936203

BELT TENSIONER

1шт.

18

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

Used with J934817

1шт.

18

844-10070

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

Used with J936203

1шт.

19

A77817

KIT

Belt Tensioner Pulley; Used to Replace Pulley of J934817 Belt Tensioner; Incl. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

Pulley

1шт.

21

NSS

NOT SOLD SEPARAT

Bolt

1шт.

22

NSS

NOT SOLD SEPARAT

Seal

1шт.
