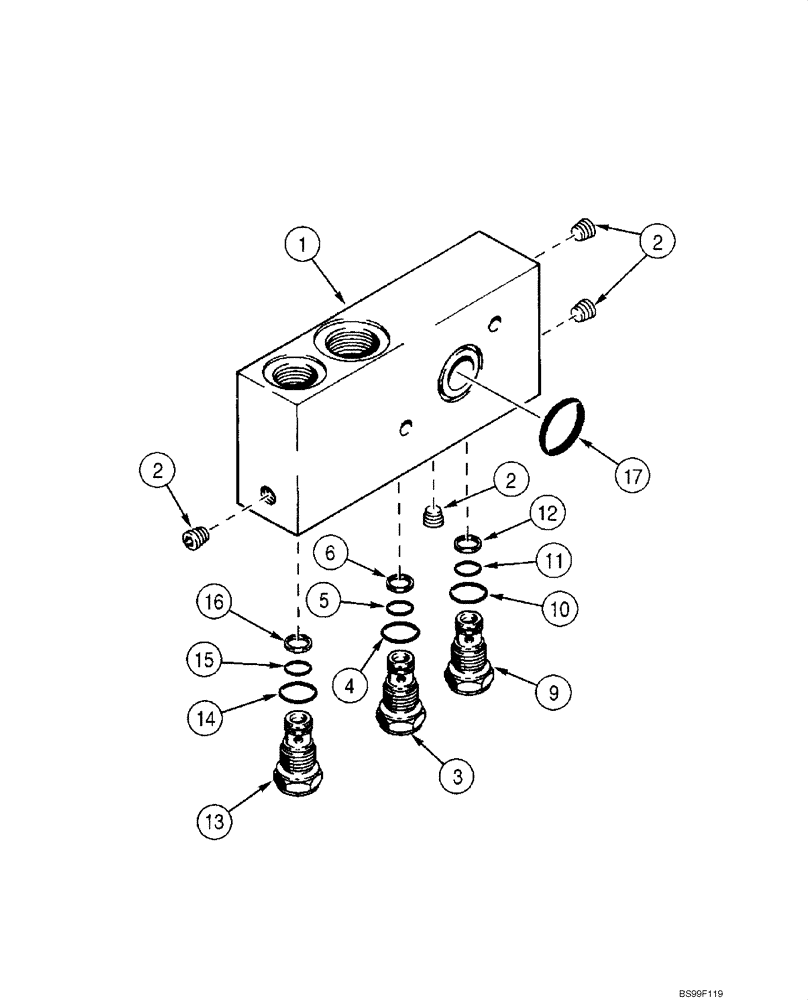

Запчасти Case IH 1845C (08-17) - VALVE ASSY, MANIFOLD, JAF0041368 - JAF0102061 (08) - HYDRAULICS

D137500

MANIFOLD

Check Valve; Hydrostatic Drive manufactured By Waterman or Sterling; Incl. 1 - 17; For Mounting, See Fig 06-04

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

221-841

PLUG

1/4 PT; If Used

4шт.

N14519

VALVE

5 psi; Used with Manifold manufactured by Waterman; Incl. 3 - 8

1шт.

100501A1

VALVE

5 psi; Used with manifold manufactured by Sterling

1шт.

6

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

Used with manifold manufactured by Sterling; Incl. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

Body

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

5

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

Used with manifold manufactured by Waterman

1шт.

5

K692161

O-RING,0.634" ID x 0.76" OD x 0.063"

Used with manifold manufactured by Sterling

1шт.

6

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

Used with manifold manufactured by Sterling

1шт.

6

L30443

BACK-UP RING,0.547" ID x 0.049" Width

Used with manifold manufactured by Waterman

1шт.

6

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

Used with manifold manufactured by Sterling

1шт.

N14520

VALVE

15 psi; Used with manifold manufactured by Waterman; Incl. 9 - 12

1шт.

100501A1

VALVE

15 psi; Used with manifold manufactured by Sterling; Incl. 9 - 12

1шт.

9

NSS

NOT SOLD SEPARAT

Body

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

Used with manifold manufactured by Waterman

1шт.

11

K692161

O-RING,0.634" ID x 0.76" OD x 0.063"

Used with manifold manufactured by Sterling

1шт.

12

L30443

BACK-UP RING,0.547" ID x 0.049" Width

Used with manifold manufactured by Waterman

1шт.

12

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

Used with manifold manufactured by Sterling

1шт.

N14521

VALVE

50 psi; Used with manifold manufactured by Waterman; Blue; Incl. 13 - 16

1шт.

100502A1

VALVE

50 psi; Used with manifold manufactured by Sterling; Incl. 13 - 16

1шт.

13

NSS

NOT SOLD SEPARAT

Body

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

15

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

Used with manifold manufactured by Waterman

1шт.

15

K692161

O-RING,0.634" ID x 0.76" OD x 0.063"

Used with manifold manufactured by Sterling

1шт.

16

L30443

BACK-UP RING,0.547" ID x 0.049" Width

Used with manifold manufactured by Waterman

1шт.

16

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

Used with manifold manufactured by Sterling

1шт.

17

238-5219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

1шт.
