Запчасти Case IH 1845C (08-16) - VALVE ASSY, RELIEF, - JAF0041367 (08) - HYDRAULICS

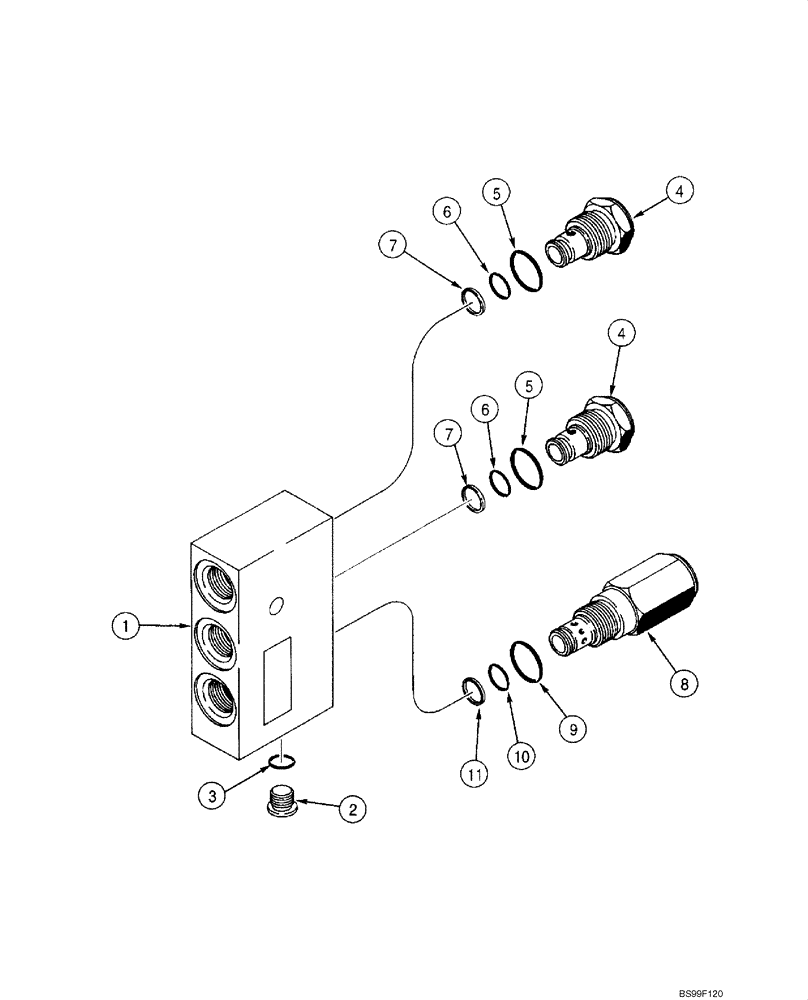

Схема запчастей Case IH 1845C - (08-16) - VALVE ASSY, RELIEF, - JAF0041367 (08) - HYDRAULICS
9
10
2
6
7
3
8
1
6
4
5
7
4
11
5

Артикул

Название

Примечание

Количество

D124376

VALVE

Loader Bucket; Incl. 1 - 11; For Mounting, See Figs 08-04, 08-05

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

278548

PLUG,Hex, 7/16"-20 ORB

Incl 3

1шт.

3

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

N13188

VALVE

Incl. 4 - 7

2шт.

4

NSS

NOT SOLD SEPARAT

Body

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

7

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

1шт.

N13189

VALVE

Incl. 8 - 11

1шт.

8

NSS

NOT SOLD SEPARAT

Body

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

11

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

1шт.

Выбрано товаров: 14
