Запчасти Case IH 1845C (08-14) - VALVE, CONTROL - LOADER, JAF0041368 - JAF0122750 (08) - HYDRAULICS

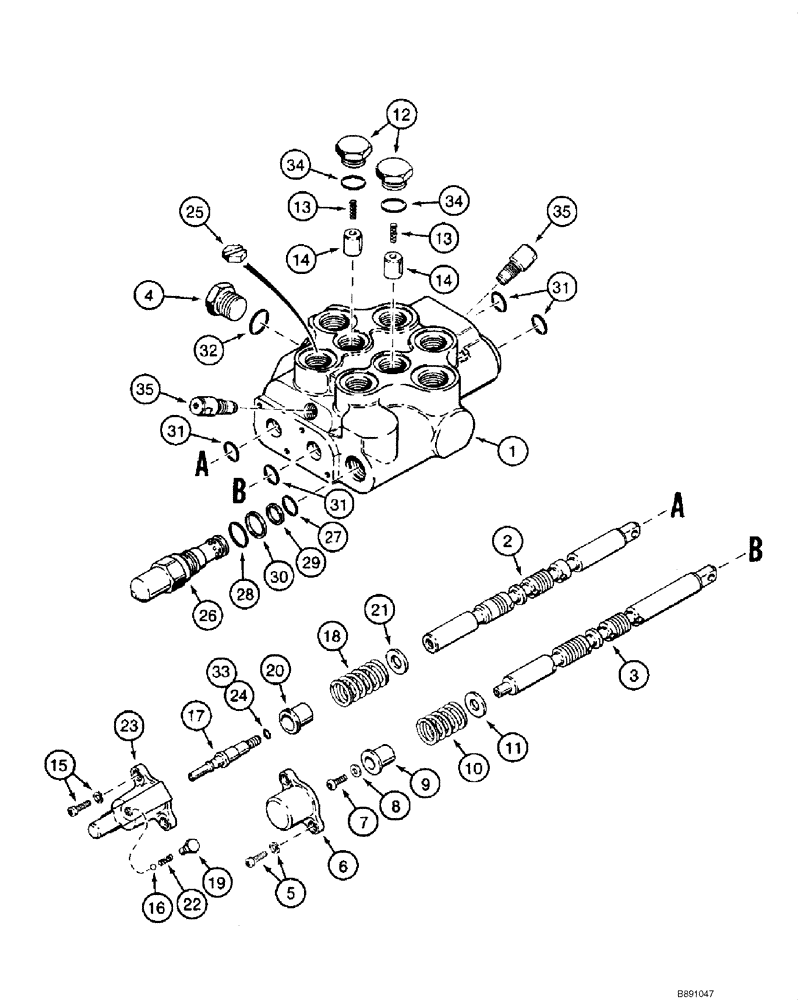

Схема запчастей Case IH 1845C - (08-14) - VALVE, CONTROL - LOADER, JAF0041368 - JAF0122750 (08) - HYDRAULICS
32
34
14
27
30
17
25
21
24
18
10
3
28
15
11
20
31
29
2
9
26
31
6
34
7
35
1
14
5
31
22
35
23
19
13
13
12
33
16
4
8

Артикул

Название

Примечание

Количество

H673322

VALVE

Loader Control; Incl. 1 - 35; No Longer Available, Order H674735

1шт.

H674308

VALVE

1622-90-JC; Loader Control; Incl. 1 - 35; No Longer Available, Order H674735

1шт.

H674735

VALVE

Loader Control; Incl. 1 - 35

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

H674795

CONVERSION PACKAGE

Spool; Loader Lift; Used with H674308; White; If Used

1шт.

2

H674796

CONVERSION PACKAGE

Spool; Loader Lift; Used with H674308; Black; If Used

1шт.

3

NSS

NOT SOLD SEPARAT

Spool

1шт.

4

H436435

PLUG

Power Beyond

1шт.

H673571

KIT

Centering Spring; Incl. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

Screw; Incl. Washer

2шт.

6

N9528

CAP

1шт.

7

NSS

NOT SOLD SEPARAT

Screw

1шт.

8

NSS

NOT SOLD SEPARAT

Washer

1шт.

9

N9529

SEAT

1шт.

10

N9539

TENSION SPRING

1шт.

11

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

142999A1

KIT

Load Check; Incl. 12 - 14

2шт.

12

NSS

NOT SOLD SEPARAT

Plug

1шт.

13

NSS

NOT SOLD SEPARAT

Spring

1шт.

14

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

H673573

KIT

Detent Float; Used with H673322; Incl. 15 - 24

1шт.

H674617

SET

Detent Float; Used with H674308, H674735; Incl. 15 - 23

1шт.

15

NSS

NOT SOLD SEPARAT

Screw Incl. Washer

2шт.

16

NSS

NOT SOLD SEPARAT

Ball

2шт.

17

NSS

NOT SOLD SEPARAT

Spool

1шт.

18

D86558

SPRING

1шт.

19

D86560

SCREW

2шт.

20

D86559

SEAT

1шт.

21

D86557

WASHER

1шт.

22

N9506

COIL SPRING

2шт.

23

N9540

COVER

1шт.

24

NSS

NOT SOLD SEPARAT

O-Ring; Used in H673573

1шт.

25

H436436

PLATE

1шт.

26

H673574

VALVE, PRESSURE RELI

EF Valve, Relief; Incl 27 - 30B

1шт.

H673570

SEAL PACKAGE

Used with H673322; Incl. 27 - 30

1шт.

H674535

GASKET KIT

Used with H674308, H674735; Incl. 27 - 30B

1шт.

27

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

28

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

1шт.

29

H438044

GASKET

1шт.

30

H438329

GASKET

1шт.

30a

H438228

NUT

Nut, 3/8-24UNF; Not Illustrated

1шт.

30b

H438229

ADJUSTMENT SCREW

Bolt, 3/8-24UNF; Not Illustrated

1шт.

31

H438030

O-RING

4шт.

32

H438328

SEAL,7.94mm ID x 11.11mm OD x 1.59mm Thk

1шт.

33

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Used in H673573

1шт.

34

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

35

H673742

VALVE

2шт.

H673743

SEAL PACKAGE

Incl. H673570, Ref 31 - 35

1шт.

H674616

SEAL PACKAGE

Incl. H674535; Used with H674308, H674735

1шт.

Выбрано товаров: 49
