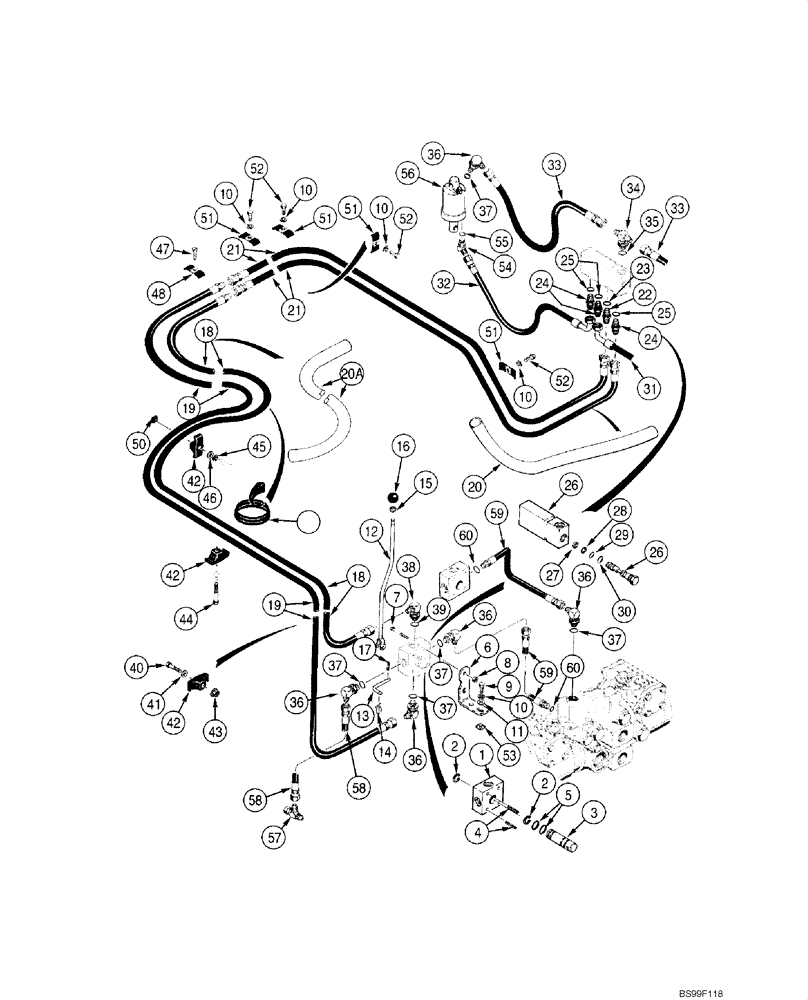

Запчасти Case IH 1845C (08-11) - HYDRAULIC SYSTEM - COUPLER (08) - HYDRAULICS

H673298

VALVE

Incl. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

100-1187

SNAP RING,#87, Ext

Replaces B18206

2шт.

3

H438634

SPOOL

1шт.

4

H438635

PIN, SPLIT (COTTER)

PIN, COTTER

2шт.

5

N60361

O-RING

2шт.

6

143932A1

BRACKET

1шт.

7

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

9

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

10

492-11031

LOCK WASHER,5/16"

6шт.

11

H426775

WASHER

2шт.

12

313176A1

THREADED ROD

Replaces H436612

1шт.

13

H436204

LEVER

1шт.

14

H436613

COTTER PIN

1шт.

15

353-457

PLUG

1шт.

16

A61683

BUTTON

1шт.

17

138-54

LOCK PIN,1/8" x 9/16", Slotted

1шт.

18

H435761

HOSE

3550 mm (139-7/8 in); Upper Port of Control Valve

1шт.

19

H435762

HOSE

3500 mm (137-7/8 in); Lower Port of Control Valve

1шт.

20

H436615

LINING

Loader Arm; Front

1шт.

20a

135246A1

TUBE

Loader Arm

1шт.

21

182842A1

HOSE ASSY.

2550 mm (100-1/2 in); Replaces H435763

2шт.

22

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Incl. 23

1шт.

23

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

24

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 25

3шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

H673299

VALVE

Incl. 26 - 30

1шт.

26

NSS

NOT SOLD SEPARAT

Body; Incl. Spool

1шт.

NSS

NOT SOLD SEPARAT

Valve; Order H673299

1шт.

27

NSS

NOT SOLD SEPARAT

Ring, Piston

1шт.

28

L31330

BACK-UP RING,109mm ID x 128.81mm OD x 12mm Thk

1шт.

29

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

30

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

31

H435765

HOSE

500 mm (19-3/4 in); Valve to Cylinder; RH Cylinder

1шт.

32

H435766

HOSE

280 mm (11-1/8 in); Valve to Cylinder; LH Cylinder

1шт.

33

H435764

HOSE

380 mm (15 in);, Serial Range: Valve-Cylinder

2шт.

34

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 35

1шт.

35

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

36

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 37

5шт.

37

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

38

218-5283

ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

Incl. 39

1шт.

39

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

40

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

41

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

42

D120679

CLAMP,Tube, 1/2"

4шт.

43

231-5146

FLANGE NUT,3/8"-16

1шт.

44

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

45

492-11038

LOCK WASHER,3/8"

3шт.

46

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

47

473-13112

SCREW,Slotted Flat Hd, 5/16"-18 x 3/4"

1шт.

48

H437625

CLAMP

1шт.

49

D36179

LINING

108 mm (4-1/4 in); Cut from F42827

1шт.

50

84899

SQUARE NUT,Sq, 3/8"-16, G2

1шт.

51

R17319

CLAMP

Replaces H434900

4шт.

52

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

53

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

2шт.

54

218-5133

ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

Incl. 55

2шт.

55

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

56

H673117

CYLINDER

Double Acting; Component Parts Not Serviced Separately

2шт.

57

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

58

H435767

HOSE

900 mm (35-1/2 in)

1шт.

59

H435760

HOSE

650 mm (25-5/8 in)

1шт.

60

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
