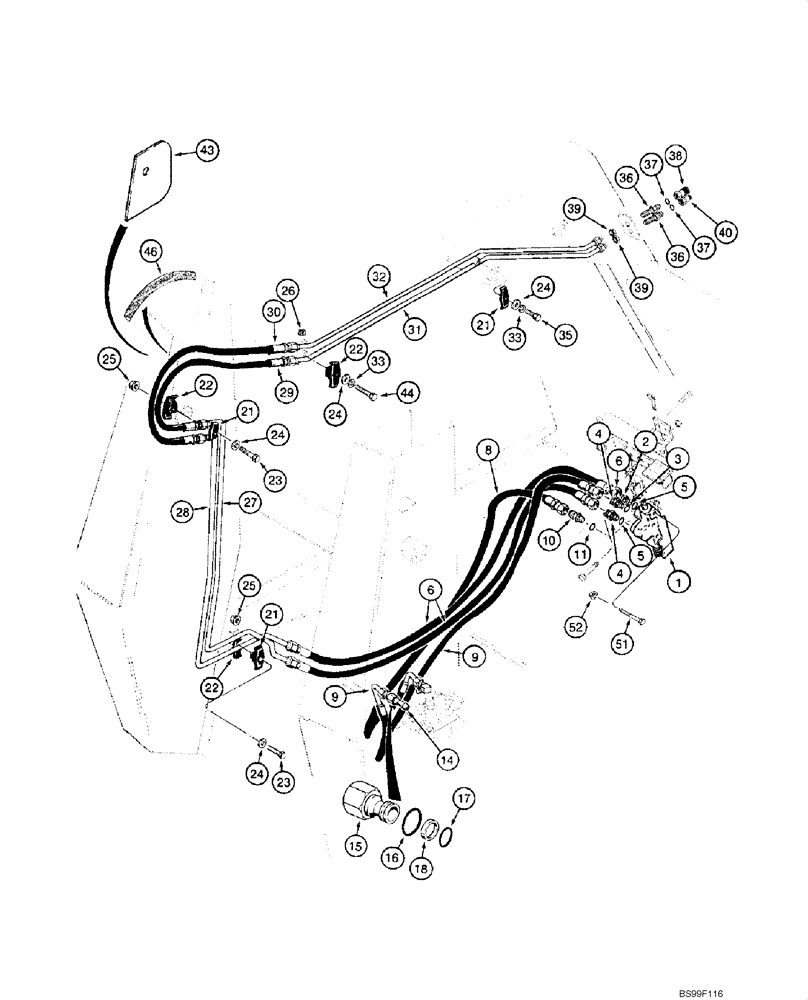

Запчасти Case IH 1845C (08-09) - HYDRAULICS - AUXILIARY SYSTEM, JAF0143531 - (08) - HYDRAULICS

1

H674465

VALVE

Auxiliary Control; See Fig 08-18

1шт.

2

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Incl. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Incl. 5

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

H436707

HOSE,12.7mm ID x 1650mm L

2шт.

8

H436149

HOSE,19.05mm ID x 1950mm L, SAE 100R1

1950 mm (76-7/8 in)

1шт.

9

130470A1

HOSE ASSY.,15.88mm ID x 2150mm L

2150 mm (84-5/8 in)

1шт.

10

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Incl. 11

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

14

129878A1

FITTING

Power Beyond; Incl. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

17

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

18

A52424

BACK-UP RING

1шт.

21

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

3шт.

22

D120613

CLAMP,20mm ID

3шт.

23

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

24

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

25

231-5146

FLANGE NUT,3/8"-16

2шт.

26

84899

SQUARE NUT,Sq, 3/8"-16, G2

1шт.

27

104344A1

HYD TUBE,15.88 mm OD, 946 mm Length

1шт.

28

104343A1

HYD TUBE,15.88 mm OD, 873 mm Length

1шт.

29

D126740

HOSE,12.7mm ID x 850mm L, SAE 100R2

850 mm (33-1/2 in)

1шт.

30

D126739

HOSE,12.7mm ID x 950mm L, SAE 100R2

1100 mm (43-3/8 in)

1шт.

31

185257A1

TUBE,15.88 mm OD, 1294, 244 mm Length

1шт.

32

185255A1

TUBE,15.88 mm OD, 1272, 240 mm Length

1шт.

33

492-11038

LOCK WASHER,3/8"

2шт.

35

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

36

184602A1

FITTING

Incl. 37

2шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

38

143431A1

COUPLING, QUICK, FEM

Female

1шт.

39

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

2шт.

40

122180A1

COUPLING, BREAK AWAY

Male

1шт.

43

D135910

LARGE PLATE

PLATE, LARGE

1шт.

44

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

46

D131814

SLEEVE

1шт.

47

103171A1

CLAMP

European Models with Glazed ROPS Only

1шт.

48

443-13820

SCREW,Cross Flat Hd, 3/8"-16 x 1 1/4"

European Models with Glazed ROPS Only

1шт.

49

103173A1

CLAMP

European Models with Glazed ROPS Only

1шт.

50

443-13812

SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

European Models with Glazed ROPS Only

1шт.

51

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

52

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.
