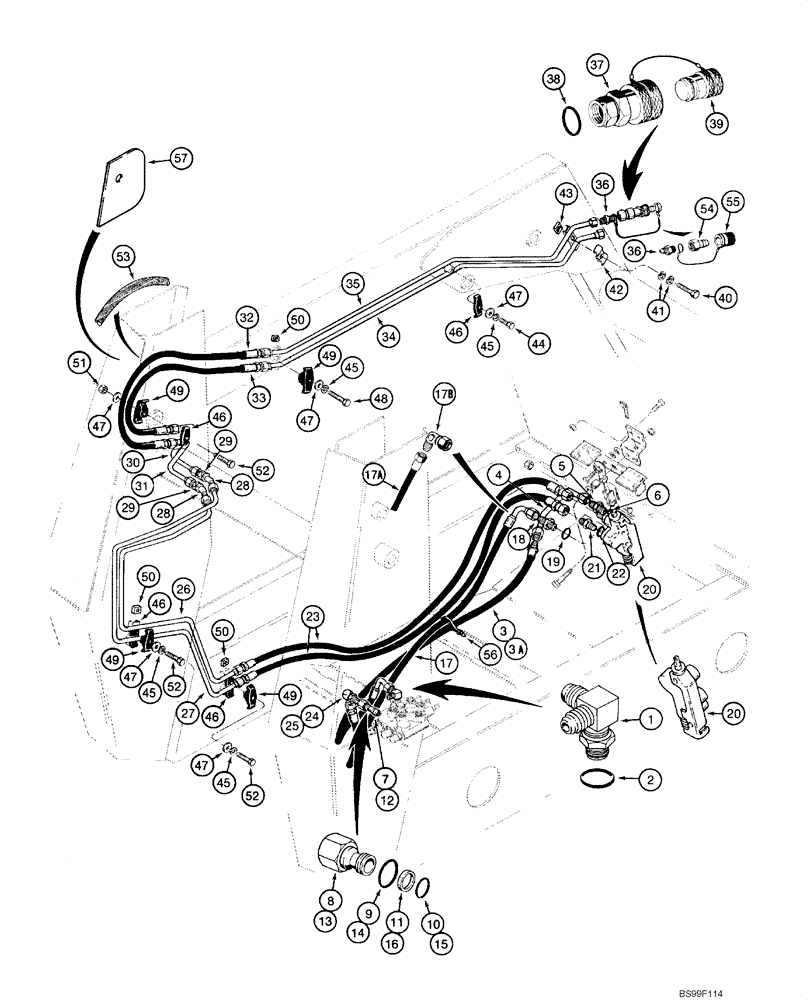

Запчасти Case IH 1845C (08-07) - HYDRAULICS - AUXILIARY SYSTEM, - JAF0102176 (08) - HYDRAULICS

1

D61606

TEE

90; Incl. 2

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

D139278

HOSE

1850 mm (72-7/8 in); No Longer Available; Order H436149, Ref 3A

1шт.

3a

H436149

HOSE,19.05mm ID x 1950mm L, SAE 100R1

1950 mm (76-7/8 in)

1шт.

4

D126724

TUBE

No Longer Available; See Fig 08-08; Order 2, 9A, 19

1шт.

5

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Incl. 6

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

D61608

SLEEVE

Power Beyond; - JAF0041367; Incl. 8 - 11

1шт.

8

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

9

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

10

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

11

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

1шт.

12

H436154

FITTING,7/8" - 14

Power Beyond; JAF0041368 - ; Incl. 13 - 16

1шт.

13

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

15

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

16

A52424

BACK-UP RING

1шт.

17

D126737

HOSE

1650 mm (65 in); Supply; No Longer Used; Replace with H435865, 218-5232, Ref 17A, 17B

1шт.

17a

107026A1

HOSE ASSY.

1650 mm (65 in); Supply; No Longer Available; Order H435865

1шт.

17a

H435865

HOSE ASSY.,15.88mm ID x 2150mm L

2150 mm (84-3/4 in); Supply

1шт.

17b

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

18

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Incl. 19

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

20

REF

INSTRUCTION

Valve, Control; Auxiliary Control; See Fig 08-18

1шт.

21

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Incl. 22

2шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

23

H436707

HOSE,12.7mm ID x 1650mm L

2шт.

24

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. 25

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

26

D126726

TUBE

A Port

1шт.

27

D126728

TUBE

B Port

1шт.

28

218-716

ELBOW,45 Degree Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

2шт.

29

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

2шт.

30

D126730

TUBE

1шт.

31

D126732

TUBE

1шт.

32

D126739

HOSE,12.7mm ID x 950mm L, SAE 100R2

1100 mm (43-3/8 in)

1шт.

33

D126740

HOSE,12.7mm ID x 850mm L, SAE 100R2

850 mm (33-1/2 in)

1шт.

34

D126734

TUBE

1шт.

35

D126736

TUBE

1шт.

36

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

2шт.

37

T40265

COUPLING, BREAK AWAY

Female; - JAF0041367

1шт.

37

H436396

COUPLING

Female; JAF0041368 - ; Incl. 38

1шт.

38

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

39

H436396

COUPLING

Female

1шт.

40

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

41

492-11038

LOCK WASHER,3/8"

2шт.

42

H435737

CLAMP

1шт.

43

84899

SQUARE NUT,Sq, 3/8"-16, G2

1шт.

44

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

45

492-11038

LOCK WASHER,3/8"

4шт.

46

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

4шт.

47

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

5шт.

48

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

49

D120613

CLAMP,20mm ID

4шт.

50

84899

SQUARE NUT,Sq, 3/8"-16, G2

3шт.

51

231-5146

FLANGE NUT,3/8"-16

1шт.

52

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

53

D131814

SLEEVE

1шт.

54

1272770C2

COUPLING, BREAK AWAY

Male

1шт.

55

T40759

PLUG

1шт.

56

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

57

D135910

LARGE PLATE

PLATE, LARGE

1шт.
