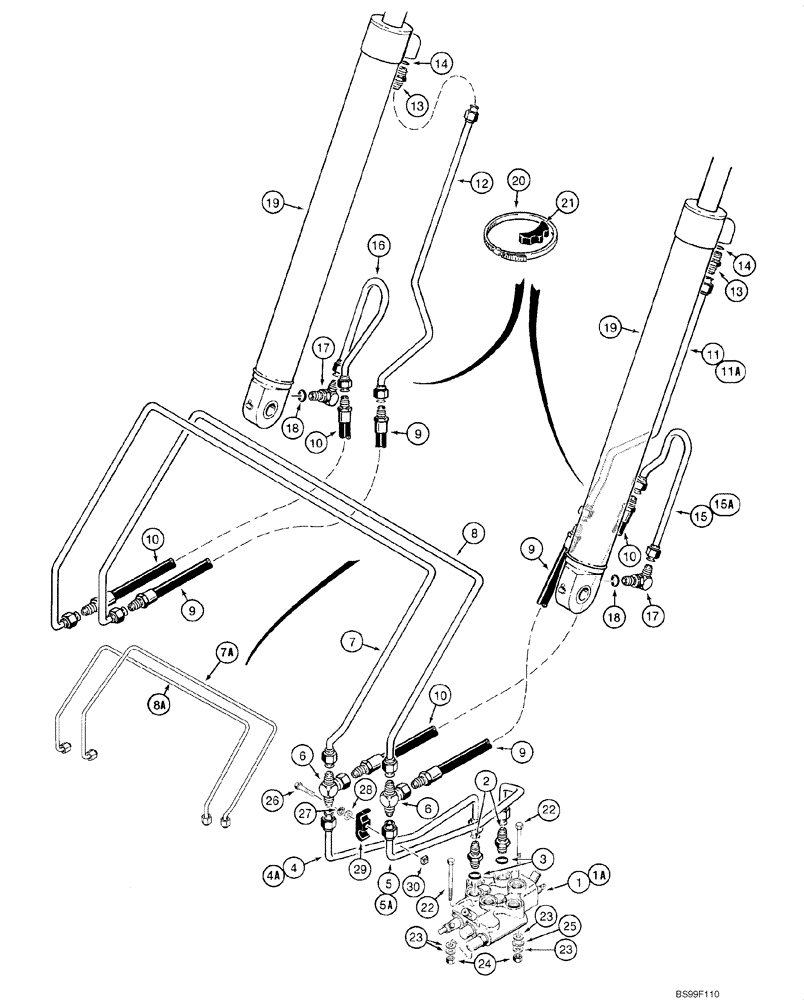

Запчасти Case IH 1845C (08-03) - HYDRAULICS - LOADER LIFT, JAF0041368 - (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve, Control; Loader Control; See Fig 08-14; JAF0041368 - JAF0122750

1шт.

1a

REF

INSTRUCTION

Valve, Control; Loader Control; See Fig 08-15; JAF0122751 -

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

H673721

TUBE,0.5" OD

JAF0041368 - JAF0122750

1шт.

4a

128524A1

TUBE,12.7 mm OD, 447,278 mm Length

JAF0122751 -

1шт.

5

H673719

TUBE,0.5" OD

JAF0041368 - JAF0122750

1шт.

5a

128521A1

TUBE,12.7 mm OD, 477,317 mm Length

JAF0122751 -

1шт.

6

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

2шт.

7

H673723

TUBE,0.5" OD

Crossover

1шт.

7a

295047A1

TUBE

Crossover; Models with Emissions Certified Engine

1шт.

8

H673720

TUBE,0.5" OD

Crossover

1шт.

8a

295042A1

TUBE

Crossover; Models with Emissions Certified Engine

1шт.

9

H436409

HYDRAULIC HOSE,9.53mm ID x 475mm L

2шт.

10

H436674

HOSE,9.53mm ID x 575mm L

575 mm (22-3/4 in)

2шт.

11

D124653

TUBE

RH

1шт.

11a

297953A1

TUBE,746, 125 mm Length

Models with Emissions Certified Engine

1шт.

12

H673581

TUBE,12.7 mm OD x 740, 86 mm L

LH

1шт.

13

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 14

2шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

D124651

TUBE

1шт.

15a

297955A1

TUBE,212, 114 mm Length

Models with Emissions Certified Engine

1шт.

16

H673582

TUBE,0.5" OD

1шт.

17

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 18

2шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

19

REF

INSTRUCTION

Cylinder Assy; Loader Lift; See Fig 08-26, 08-27

2шт.

20

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

2шт.

21

R24703

SUPPORT

2шт.

22

413-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

2шт.

23

H426775

WASHER

4шт.

24

232-4115

LOCK NUT,5/16"-18, GC

2шт.

25

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

1шт.

26

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

27

492-11038

LOCK WASHER,3/8"

4шт.

28

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

29

D120679

CLAMP,Tube, 1/2"

4шт.

30

84899

SQUARE NUT,Sq, 3/8"-16, G2

4шт.
