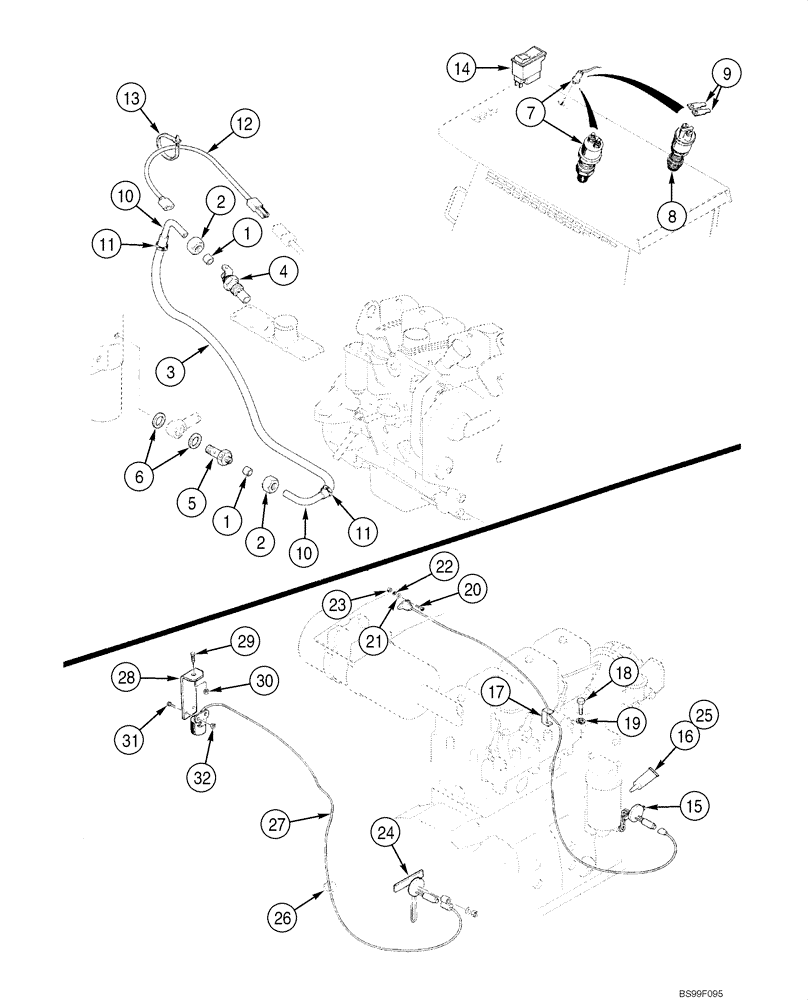

Запчасти Case IH 1845C (02-06) - THERMOSTART - COLD START AID (NORTH AMERICA, JAF0276198 - , EUROPE) (02) - ENGINE

1

114613A1

SEAL

Replaces A77613

2шт.

2

114612A1

TUBE NUT

3/8 NF; Replaces A77614

2шт.

3

119882A1

TUBE

230 mm (9-1/8 in)

1шт.

4

A77616

GLOW PLUG

Element

1шт.

5

A189226

BANJO BOLT

Replaces A77617

1шт.

6

J935171

SEALING WASHER

12 x 19 x 1.5 mm; Replaces J918191, J903037

2шт.

6

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

Replaces J935171

2шт.

7

D34924

SWITCH

Push Button Injector; - JAF0101486

1шт.

8

L72776

SWITCH

Push Button Injector; JAF0101487 -

1шт.

9

L59682

TERMINAL CONNECTOR

Switch to Harness; JAF0101487 -

2шт.

10

119881A1

TUBE,4.76 mm OD, 42, 42 mm Length

2шт.

11

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

12

E99733

ELECTRICAL WIRE

WIRE - JAF02773532

1шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 inch

5шт.

14

223838A1

CONTROL

Used on Models with Emissions Certifed Engine; Replaces D90961; JAF0277353 -

1шт.

15

E20749

HEATER

240V; Cold Start Aid, - JAF0101486; No Longer Available; Order J916662, 112837A1

1шт.

16

331-83

Lubricant 1/2 oz

1шт.

17

E20754

BRACKET

1шт.

18

626-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

19

892-11010

LOCK WASHER,M10

1шт.

20

260-1448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

2шт.

21

895-11044

WASHER

2шт.

22

892-11004

LOCK WASHER,M4

2шт.

23

825-1404

NUT,M4, Cl 8

2шт.

24

J916662

UNIT HEATER

240V; Cold Start Aid, JAF0101487-

1шт.

25

331-83

Lubricant 1/2 oz

1шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 inch

1шт.

27

112837A1

PLUG

1шт.

28

H439391

BRACKET

1шт.

29

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

31

470-1088

SCREW,Slotted Pan Hd, #8-32 x 1/2"

2шт.

32

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

2шт.
