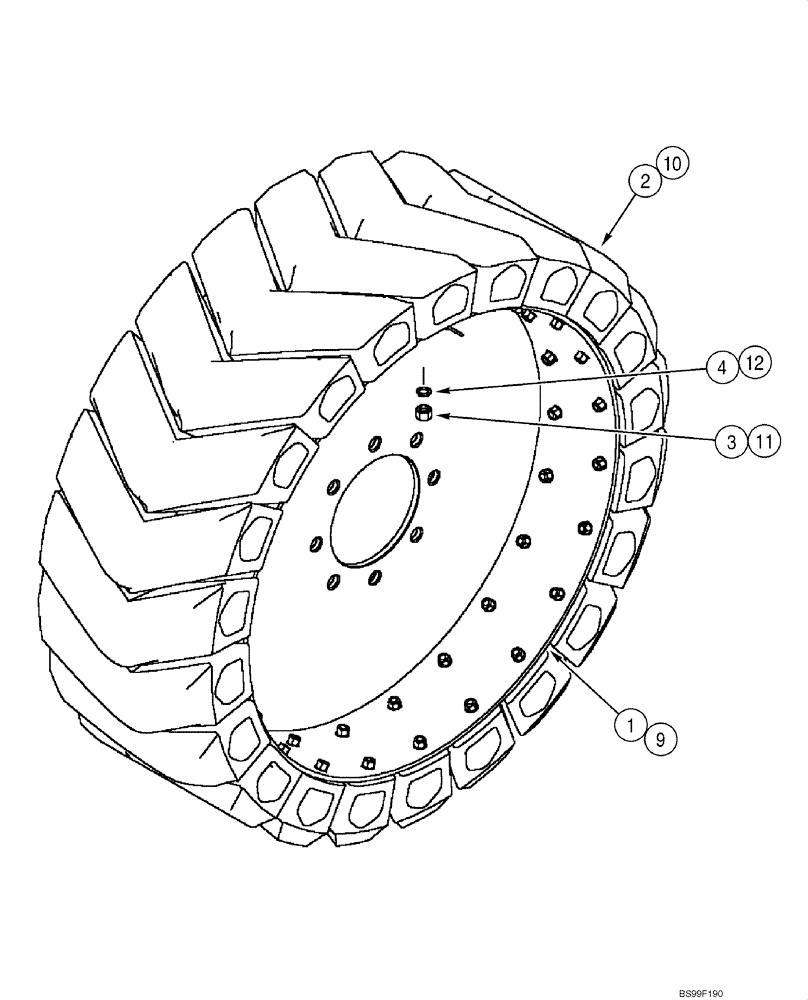

Запчасти Case IH 1845C (06-26) - WHEELS (06) - POWER TRAIN

1

137237A1

RIM

WHEEL 8.25 x 15; LH; Black

2шт.

2

346266A1

SEGMENT

LH; Incl. 3, 4

40шт.

3

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

4шт.

5

138696A1

RIM

WHEEL 8.25 x 15; RH; Black; Not Illustrated

2шт.

6

346266A1

SEGMENT

RH; Incl. 7, 8; Not Illustrated

40шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

Not Illustrated

4шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm; Not Illustrated

4шт.

233385A1

WHEEL ASSY.

12 x 16.5; LH; Flotation; Incl. 9 - 12

2шт.

9

NSS

NOT SOLD SEPARAT

Rim, Wheel

1шт.

10

235444A1

SEGMENT

Flotation; Airboss Altrakka II; Incl. 11, 12

20шт.

11

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

233384A1

WHEEL ASSY.

12 x 16.5; RH; Flotation; Incl. 9 - 12; Not Illustrated

2шт.

13

NSS

NOT SOLD SEPARAT

Rim, Wheel

1шт.

14

235444A1

SEGMENT

Flotation; Airboss Altrakka II; Incl. 15, 16

20шт.

15

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

17

138690A1

RIM

WHEEL 12 x 16.5; LH; Not Illustrated

2шт.

18

346269A1

SEGMENT

Not Illustrated

40шт.

19

137235A1

RIM

WHEEL 12 x 16.5; RH; Not Illustrated

2шт.

20

346269A1

SEGMENT

Not Illustrated; Purchase Tires Locally

40шт.
