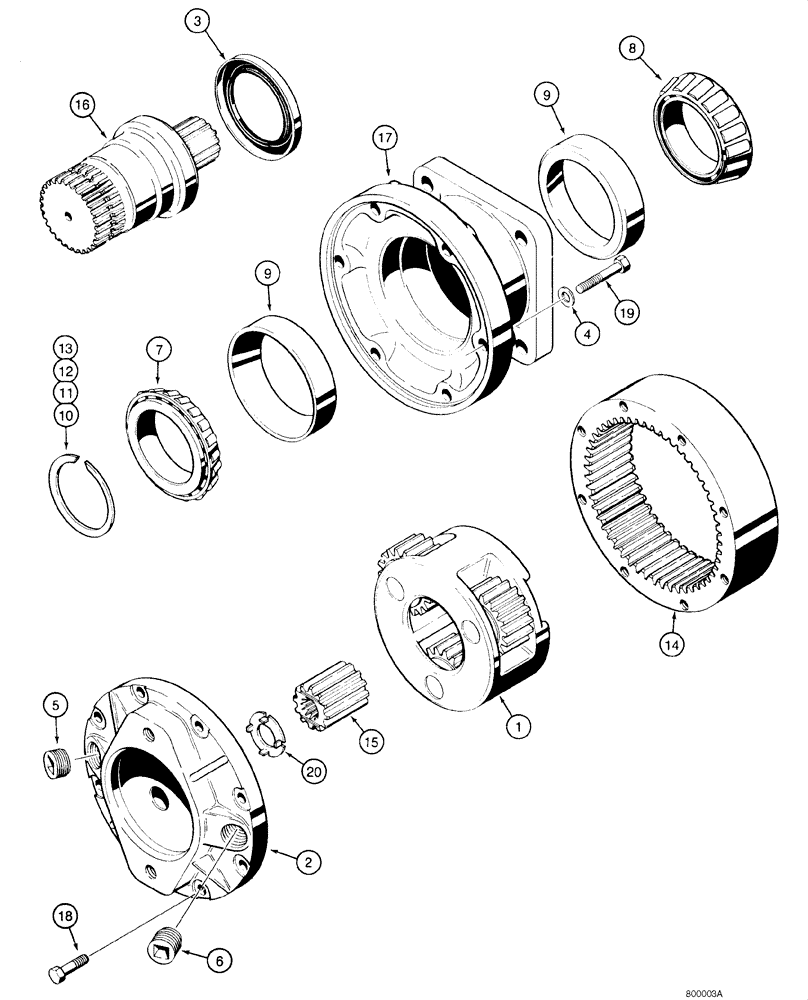

Запчасти Case IH 1845C (06-23) - PLANETARY ASSY, - JAF0067437 (06) - POWER TRAIN

D83254

GEAR WHEEL

Planetary Drive; Incl. 1 - 20; For Mounting, See Fig 06-20

2шт.

D83254R

1845C Prior To P.I.N JAF0067437

REMAN-REDUCTION UNIT

2шт.

D83254C

Return Number

CORE-REDUCTION UNIT

1шт.

D83254R

1845C Prior To P.I.N JAF0067437

REMAN-REDUCTION UNIT

2шт.

D83254C

Return Number

CORE-REDUCTION UNIT

1шт.

1

N6350

CARRIER

1шт.

2

N6351

COVER

1шт.

3

N6352

OIL SEAL

1шт.

4

N6353

WASHER

6шт.

5

221-844

PLUG,Hex Soc, 1/2"-14

2 PT

1шт.

6

221-886

DRAIN PLUG,Hex Hd, 1/2" NPT

2 x 3/8 fem

1шт.

7

T15892

TAPERED BEARING,2.625" ID x 0.866"

1шт.

8

ST2039

BEARING CONE,68.26mm ID x 22.07mm W

11/16 ID

1шт.

9

29214H

BEARING CUP,110mm OD x 18.82mm W

4-5/16" OD

1шт.

10

N6355

SHIM,.116" Thk

.116 - .118; Green

1шт.

11

N6356

SHIM

.123 - .125; Plain

1шт.

12

N6357

SHIM

.131 - .133; Blue

1шт.

13

N6358

SHIM

.108 - .110; Orange

1шт.

14

N6359

RING

1шт.

15

N6360

GEAR

1шт.

16

N6361

SHAFT

Output

1шт.

17

N6362

HOUSING

1шт.

18

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

8шт.

19

14-630

BOLT,Hex, 3/8" - 24 x 1-7/8", Gr 5

6шт.

20

N6363

WASHER

1шт.
