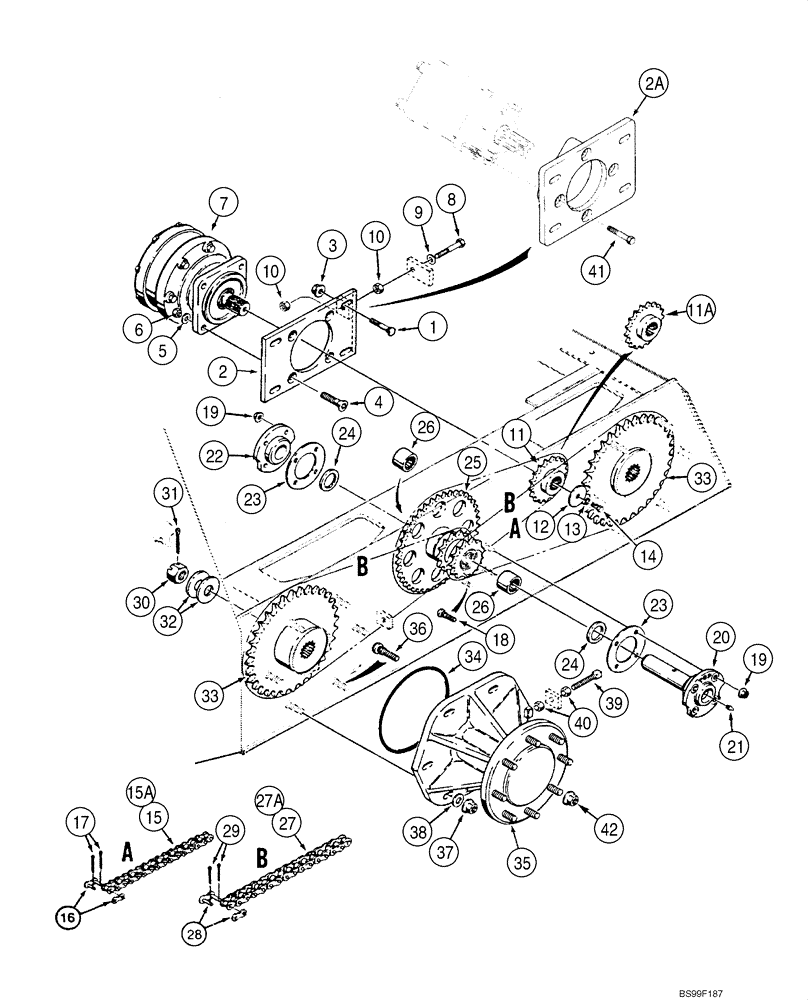

Запчасти Case IH 1845C (06-22) - DRIVE LINE - GEARS AND CHAINS (06) - POWER TRAIN

1

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

8шт.

2

H673366

PLATE

- JAF0067437

2шт.

2a

H436860

PLATE

JAF0067438 -

2шт.

3

131-943

FLANGE NUT,Flg, 1/2"-13, G5

8шт.

4

D125081

BOLT

Used with H673366

8шт.

5

496-21053

WASHER,17/32" x 1 1/16" x .134"

8шт.

6

232-4118

NUT,1/2"-13, GC

8шт.

7

D83254

GEAR WHEEL

- JAF0067438

2шт.

D83254R

1845C Prior To P.I.N JAF0067438

REMAN-REDUCTION UNIT

2шт.

D83254C

Return Number

CORE-REDUCTION UNIT

1шт.

D83254R

1845C Prior To P.I.N JAF0067438

REMAN-REDUCTION UNIT

2шт.

D83254C

Return Number

CORE-REDUCTION UNIT

1шт.

8

113-476

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5, Full Thd

2шт.

9

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

10

425-108

NUT,1/2" - 13, Gr 5

4шт.

11

D83259

SPROCKET,17T Internal / 17T External

17T; - JAF0067437

2шт.

11a

H436821

DRIVE SPROCKET

19T; JAF0067438 -

2шт.

12

T40254

WASHER

2шт.

13

492-11038

LOCK WASHER,3/8"

2шт.

14

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

15

D131408

CHAIN (CE)

Drive; LH; Incl. Connecting Link with (2) Cotter Pins

1шт.

15

D124615

CHAIN (CE)

74 Pitch, No. 60H; Drive; LH; Endless Rivet; Service Option Only

1шт.

15a

D131409

CHAIN (CE)

Drive; RH

1шт.

15a

D124616

CHAIN (CE),#60 HS, 58 Links x 19.05mm = 1104.9mm

No. 60H; Drive; RH; Endless Rivet; Service Option Only

1шт.

16

H437773

CHAIN LINK

Master; Incl. 17

1шт.

17

N8246

PIN

1/6 x 3/8

2шт.

18

H435895

BOLT

16шт.

19

131-941

FLANGE NUT,Flg, 3/8"-16, G5

16шт.

20

D124607

SHAFT

Incl. 21

2шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

22

D124610

RETAINER

2шт.

23

H436964

GASKET,1.57mm Thk

Replaces D124611

4шт.

24

A50638

BEARING WASHER,38.15mm ID x 55.3mm OD x 0.81mm Thk

4шт.

25

D76529

SPROCKET ASSY.

Incl. 26

2шт.

26

D64175

NEEDLE BEARING,Needle, 47.63mm ID x 38.1mm OD x 33.33mm W

If used

2шт.

27

D131410

CHAIN (CE)

Driven; For Service Order Ref 27A

4шт.

27a

D124614

CHAIN (CE)

No. 80H; Endless Rivet; Service Option Only

4шт.

28

H437772

LINK,Master

Master; Incl. 29

1шт.

29

N8332

PIN

3/32 x 1/2

2шт.

30

25-1316

NUT,1"-14, G5

4шт.

31

432-1028

COTTER PIN,5/32" x 1 3/4"

Replaces 32-1028

4шт.

32

D37732

WASHER,26.99mm ID x 63.5mm OD x 3.57mm Thk

1шт.

33

D120108

DRIVE SPROCKET

4шт.

34

70924143

O-RING,0.139" Thk x 8.234" ID, -267, Cl 5, 75 Duro

Replaces 238-5267

4шт.

35

D67818

AXLE

See Figs 6-24 or 6-25 for wheel hub

4шт.

36

E16592

WHEEL BOLT

1/2-20NF X 1-7/8; -JAF0162596

24шт.

36

192103A1

STUD,Pan Hd, Ribbed Nk, 9/16" - 18 x 47.50mm, Gr 5

9/16-18NF X 1-7/8; JAF0162596-

24шт.

37

131-915

FLANGE NUT,Flg, 1/2"-20, G5

Flange, 1/2" - 20

24шт.

37

G49041

WHEEL NUT

9/16" - 18

24шт.

38

495-81025

WASHER,13.49mm ID x 31.75mm OD x 4.93mm Thk

For 1/2 Bolt; -JAF0162596

24шт.

38

H439308

WASHER,16mm ID x 33.3mm OD x 4.7mm Thk

For 9/16 Bolt; JAF0162596-

24шт.

39

113-476

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5, Full Thd

4шт.

40

425-108

NUT,1/2" - 13, Gr 5

8шт.

41

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

8шт.

42

G49041

WHEEL NUT

9/16 NF

32шт.
