Запчасти Case IH 1845C (06-13E) - PUMP ASSY, TANDEM, - JAF0339423 (06) - POWER TRAIN

REF

INSTRUCTION

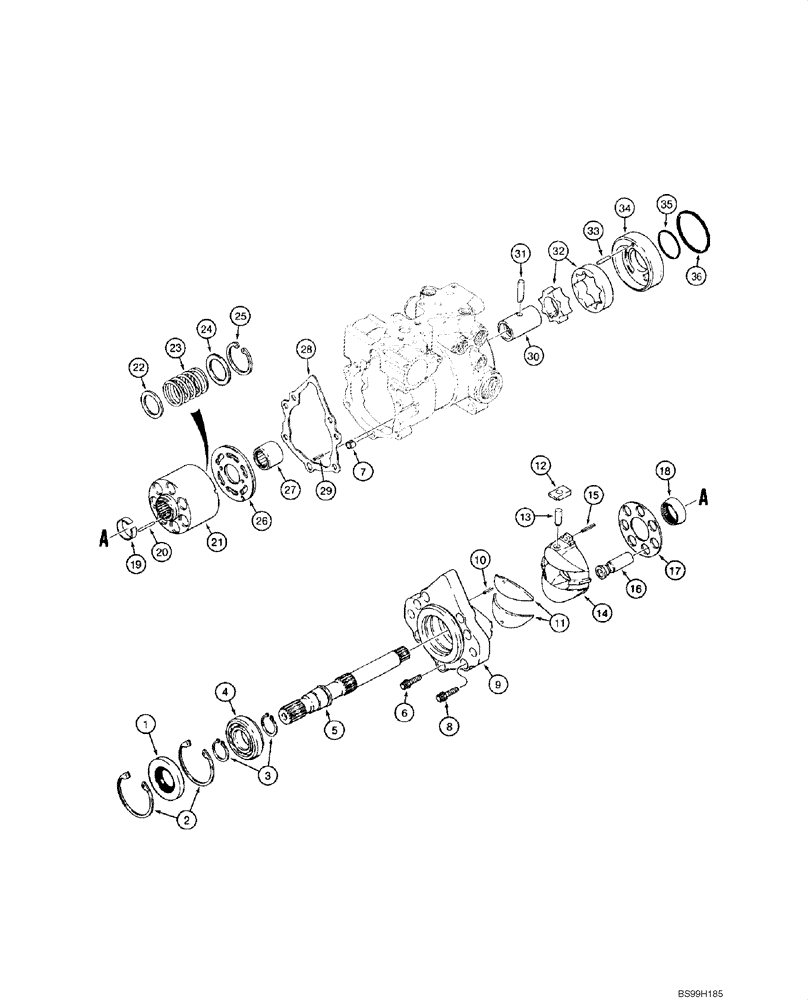

Pump Assy; See Fig 06-13

1шт.

1

N14103

SEAL

1шт.

2

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

2шт.

3

100-11137

SNAP RING,#137, Ext

2шт.

4

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

1шт.

5

N13244

SHAFT

1шт.

6

27279R1

12 PT SCREW,Flg, 3/8" - 16 x 1"

- JAF0041367

6шт.

6

80-1716

12 PT SCREW,Flg, 7/16" - 14 x 1", Gr 8

Gr 8; JAF0041368 - JAF0339423

6шт.

7

N13261

PIN

- 9892543

1шт.

7

N13994

SPACER

9892544 -

1шт.

8

N14479

12 PT SCREW

3/8 x 1-1/8

2шт.

9

N13236

COVER

- 9892543

1шт.

9

N14471

REAR COVER

9892545 - 17955711

1шт.

9

N14665

COVER

17955712 - 17956882

1шт.

9

N13991

COVER

17956883 - JAF0041367

1шт.

9

H436703

COVER

JAF0041368 -

1шт.

10

38-1806

LOCK PIN,1/8" x 3/8", Slotted

2шт.

10a

193494A1

PIN, ROLL

9892544 - 17955711; Not Illustrated

2шт.

11

N13237

BEARING LINER

- 9892543

2шт.

11

230416A1

BEARING COVER,1.36"

9892544 - 17955711

2шт.

11

193488A1

BEARING LINER

17955712 -

2шт.

12

N13224

SLEEVE

1шт.

13

N13254

PIN

1шт.

14

N13223

PLATE

- 9892543; No Longer Available, Order 127929A2, D137424; See Fig 06-13

1шт.

14

178631A1

COVER

9892544 - 17955711

1шт.

14

178632A1

COVER

17955712 - ; Replaces N14469

1шт.

15

38-31212

PIN,3/16" x 3/4", Coiled

9892543

1шт.

15

138-130

LOCK PIN,1/4" x 3/4", Slotted

9892544 - JAF0339423

1шт.

N13220

BLOCK

- 9892543

1шт.

115952A2

CYLINDER BLOCK

Incl. 16 - 25; 9892544 - JAF0339423; Replaces 115952A1

1шт.

16

NSS

NOT SOLD SEPARAT

Piston

7шт.

17

NSS

NOT SOLD SEPARAT

Retainer

1шт.

18

NSS

NOT SOLD SEPARAT

Guide; Used with N13220

1шт.

18

115942A1

GUIDE

Used with 115952A2

1шт.

19

NSS

NOT SOLD SEPARAT

Ring; Used with N13220

1шт.

19

115943A1

SNAP RING

Used with 115952A2

1шт.

20

110873A1

PIN,2.38mm OD x 33.53mm L

3шт.

21

NSS

NOT SOLD SEPARAT

Block; Used with N13220

1шт.

21

115944A2

CYLINDER BLOCK

Used with 115952A2; Replaces 115944A1

1шт.

22

115946A1

WASHER

Used with 115952A2

1шт.

23

115948A1

SPRING

Used with 4902/10015

1шт.

24

115950A1

WASHER

Used with 4902/10015

1шт.

25

NSS

NOT SOLD SEPARAT

Ring; Used with 4902/10015

1шт.

26

N13219

PLATE

- 9892543

1шт.

26

N14060

LARGE PLATE

PLATE, LARGE 9892544 - 17955711

1шт.

26

N14467

LARGE PLATE

PLATE, LARGE 17955712 - JAF0121892

1шт.

26

128928A1

LARGE PLATE

PLATE, LARGE JAF0121893 - JAF0339423

1шт.

27

1277297C1

NEEDLE BEARING

1шт.

28

H436704

GASKET,0.79mm Thk

- JAF0041367

1шт.

28

H436704

GASKET,0.79mm Thk

JAF0041368 - JAF0339423

1шт.

29

38-11208

LOCK PIN,3/16" x 1/2", Slotted

9892543

1шт.

29

38-11207

LOCK PIN,4.76mm OD x 11.11mm L, Slotted

9892544 - JAF0339423

1шт.

30

N13234

COUPLING, BREAK AWAY

1шт.

31

N13262

PIN

1шт.

32

N13247

GEAR-SET

1шт.

33

181680A1

PIN,3/16" OD x 13/16" L

1шт.

34

N13999

PLATE,3.9985" OD x 1.58" ID

1шт.

35

238-5224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

- JAF0016190

1шт.

35

H435776

O-RING,44.04mm ID x 51.10mm OD x 7.06mm W

JAF0016191 -

1шт.

36

238-6240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

- JAF0016190

1шт.

36

238-6238

O-RING,0.139" Thk x 3.484" ID, -238, Cl 6, 90 Duro

AF0016191 - JAF0339423

1шт.
