Запчасти Case IH 1845C (06-13D) - PUMP ASSY, TANDEM, - JAF0339423 (06) - POWER TRAIN

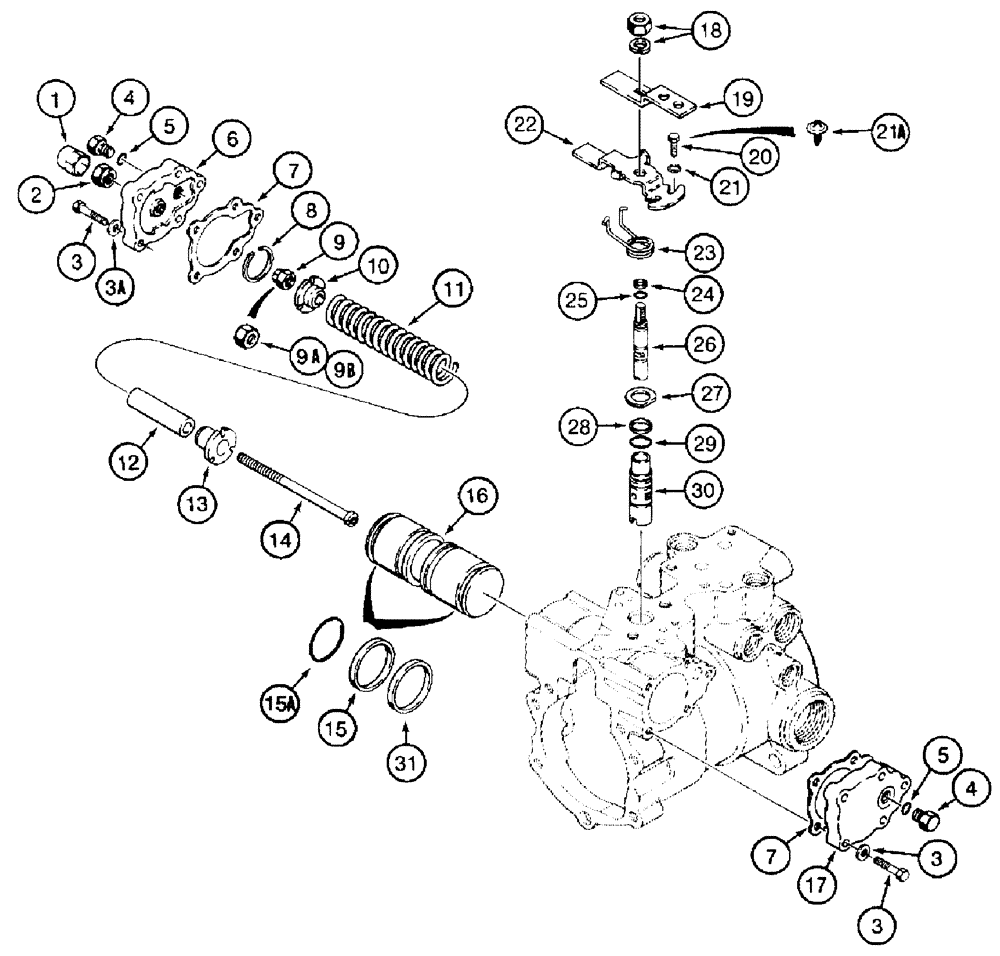

Схема запчастей Case IH 1845C - (06-13D) - PUMP ASSY, TANDEM, - JAF0339423 (06) - POWER TRAIN
22
4
10
17
2
24
3
26
12
2
16
19
9b
15
29
7
18
21
30
28
3
4
11
14
3
15a
25
21a
6
13
20
5
23
9
5
9a
27
31
7
3a
8

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Pump Assy; See Fig 06-13

1шт.

1

N13249

CAP

1шт.

2

N13260

NUT,Inverted Lock

5/8 NF

1шт.

3

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- 17956882

10шт.

3

H438321

BOLT,M6 x 1 x 20mm, Cl 10.9

1/4 x 1-1/4; 8; 17956883 -

10шт.

3a

A22354

WASHER

- JAF0016190

10шт.

3a

A23082

SPRING

JAF0016191 - JAF0339423

10шт.

4

9672438

PLUG,7/16" - 20 ORB

Incl. 5

2шт.

5

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

6

H436065

COVER

1шт.

7

N14063

GASKET

2шт.

8

N13255

RING

1шт.

9

131-528

LOCK NUT,3/8"-24

- JAF0041367

1шт.

9a

425-116

NUT,3/8" - 24, Gr 5

JAF0041368 - JAF0339423

1шт.

9b

425-156

JAM NUT,Jam, 3/8"-24, G5

JAF0041368 - JAF0339423

1шт.

10

N14666

GUIDE,1.292" OD

1шт.

11

N13226

SPRING

1шт.

12

N13242

SLEEVE

1шт.

13

N13241

GUIDE,1.292" OD

Inner

1шт.

14

370531A1

SCREW

Replaces N13267, 244905A1

1шт.

H673773

KIT

Incl. 15, 15A

1шт.

15

N14668

RING, PISTON

- 17956882; JAF0016191 - JAF0339423

2шт.

15

N14478

SEALING RING

SEALRING 17956883 - JAF0016190

2шт.

15a

238-5131

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

2шт.

16

N13225

PISTON

- 9892543

1шт.

16

N14470

PISTON

9892544 - JAF0016190

1шт.

16

H435772

PISTON

JAF0016191 - JAF0339423

1шт.

17

H436053

COVER

1шт.

18

193-1009

NUT,Keps, w/LW, 5/16"-18

- JAF0016190

1шт.

18

H436054

SPECIAL NUT,Lock, 5/16" - 18

JAF0016191 - JAF0339423

1шт.

19

N13251

HANDLE

1шт.

20

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- JAF0016190

1шт.

21

493-41026

LOCK WASHER,Ext Tooth, 1/4"

- JAF0016190

1шт.

21a

H435770

FLANGE BOLT,1/4" - 20 x 5/8"

JAF0016191 - JAF0339423

2шт.

22

N13250

BRACKET

1шт.

23

N13248

SPRING,3/4" OD

1шт.

24

S99877

BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk

1шт.

25

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Splined End Only

1шт.

26

N13243

SPOOL

- 9892543

1шт.

26

N14475

SPOOL

9892544 - JAF0016190

1шт.

26

H435769

SPOOL

JAF0016191 - JAF0339423

1шт.

27

N13256

WASHER

1шт.

28

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

1шт.

29

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

30

N13252

SLEEVE

- 9892543

1шт.

30

110671A2

SLEEVE

9892544 - ; Gold; Replaces 110671A1, N14477

1шт.

31

100536A1

BEARING WASHER,47.24mm ID x 50.34mm OD x 3.1mm Thk

17956883 - JAF0339423

2шт.
