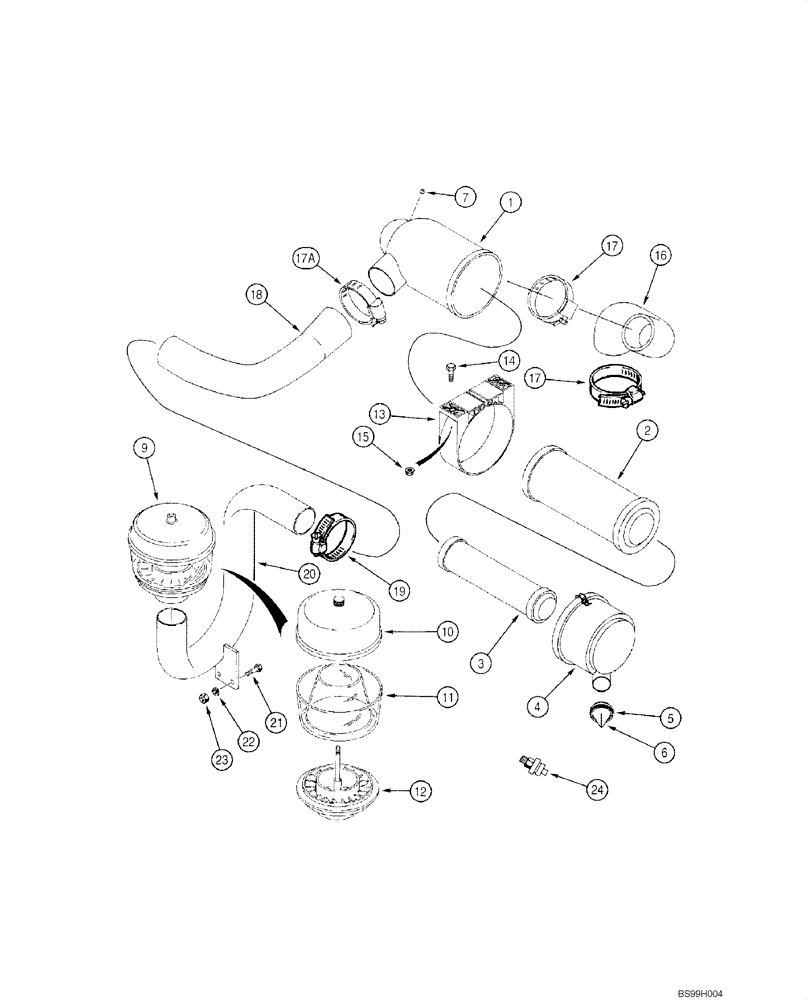

Запчасти Case IH 1845C (02-04) - AIR CLEANER - PRECLEANER ASSY, 4-390 EMISSIONS CERTIFIED ENGINE, ASN JAF0250483 (02) - ENGINE

315050A1

AIR CLEANER

Incl. 1 - 7

1шт.

1

323277A1

BODY

1шт.

2

222425A1

AIR FILTER

Primary, Outer

1шт.

3

222429A1

AIR FILTER

Secondary, Inner

1шт.

4

323278A1

COVER

1шт.

5

323279A1

CLAMP

1шт.

6

A184597

VALVE POPPET,1.93" ID x 2.24" OD x 1.84" L

1шт.

7

236690A1

PLUG

1шт.

9

258642A1

PRECLEANER

Standard; Incl. 10 - 12

1шт.

10

365412R91

COVER

1шт.

11

365413R1

BOWL

1шт.

12

NSS

NOT SOLD SEPARAT

Base

1шт.

13

315052A1

BRACKET

Incl. Hardware

1шт.

14

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

16

305507A1

INTAKE AIR HOSE,76.00 mm ID x 170.00 mm, SAE J200

1шт.

17

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

2шт.

17a

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

1шт.

18

320291A1

HOSE

1шт.

19

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

Precleaner Hose to Tube

1шт.

20

D133046

TUBE

1шт.

21

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

22

492-11031

LOCK WASHER,5/16"

2шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

24

293797A1

RESTRICTION SWITCH

Air

1шт.
