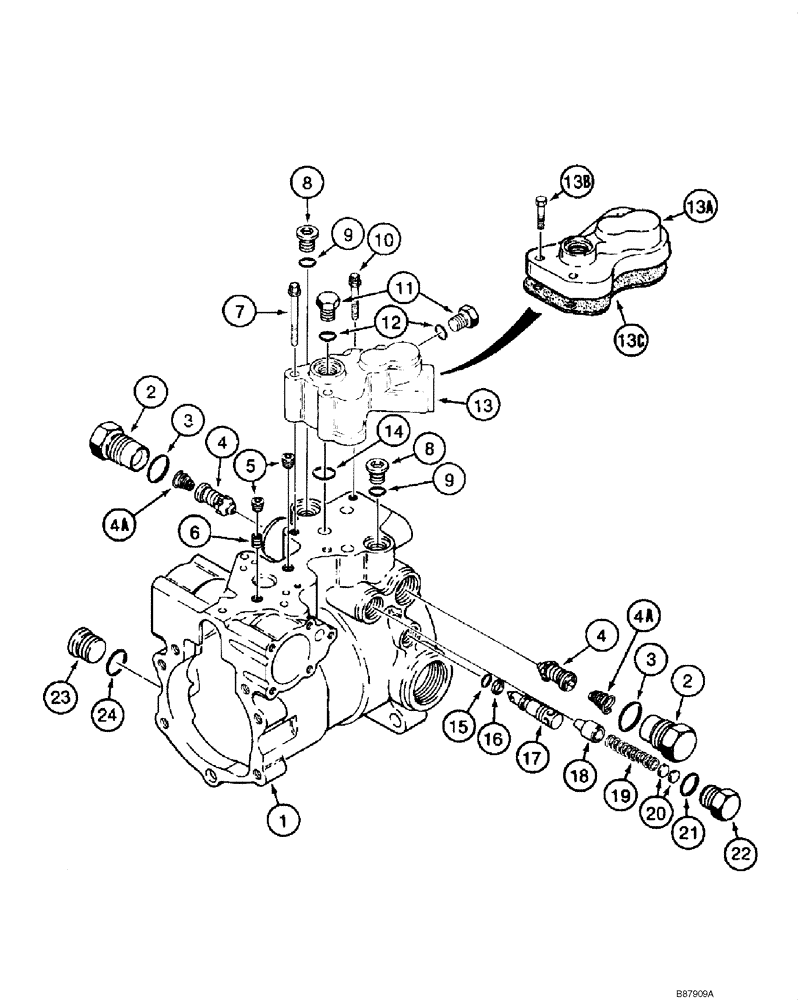

Запчасти Case IH 1845C (06-13C) - PUMP ASSY, TANDEM, - JAF0339423 (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
Pump; See Fig 06-13
1шт.
1
NSS
NOT SOLD SEPARAT
Housing
1шт.
N14463
KIT
- 17956882; Incl. 2 - 4
2шт.
N14848
VALVE, PRESSURE RELI
EF 50 psi; 17956883 - JAF0339423; Incl. 2 - 4A
2шт.
2
NSS
NOT SOLD SEPARAT
Plug; Incl. 3
1шт.
3
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
4
NSS
NOT SOLD SEPARAT
Valve, Relief
1шт.
4a
NSS
NOT SOLD SEPARAT
Spring; Used with N14848
2шт.
5
F23137
PLUG
2шт.
6
N13257
PLUG
- 9892543
1шт.
6
H435773
PLUG
9892544 - 17956882
1шт.
6
N14000
PLUG
17956883 - JAF0016190
1шт.
6
H435774
PLUG
JAF0016191 - JAF0339423
1шт.
7
413-524
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
- 9892544; Used with N13233, Ref 13
2шт.
7
166-31
12 PT SCREW,Flg, 5/16" - 18 x 2 1/4", Gr 8
9892544 - JAF0339423; Used with N13998, Ref 13
2шт.
8
76349
PLUG,9/16" - 18 ORB
Incl. 9
2шт.
9
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
10
413-524
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
- 9892544; Used with N13233, Ref 13
1шт.
10
380-2524
12 PT SCREW,Flg, 5/16" - 18 x 1 1/2"
9892544 - JAF0339423; Used with N13998, Ref 13
1шт.
11
76349
PLUG,9/16" - 18 ORB
Incl. 12
2шт.
12
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
13
N13233
ADAPTER
- 9892543
1шт.
13
N13998
ADAPTER
9892544 - JAF0339423; No Longer Used, Order 101462A1, Ref 13A, (3) 413-516
1шт.
13a
101462A1
ADAPTER
9892544 - JAF0339423; Also Order (3) 413-516
1шт.
13b
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
3шт.
13c
101463A1
SEAL
If used
1шт.
14
N13253
O-RING
- 9892543
3шт.
14
H438322
O-RING
9892544 - JAF0339423
3шт.
15
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
16
S99877
BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk
1шт.
17
N14663
BY-PASS VALVE
1шт.
18
H387670
VALVE POPPET
- 9892543
1шт.
18
V38371
VALVE
9892544 - JAF0339423
1шт.
14
N13253
O-RING
- 9892543
3шт.
14
H438322
O-RING
9892544 - JAF0339423
3шт.
15
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
16
S99877
BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk
1шт.
17
N14663
BY-PASS VALVE
1шт.
18
H387670
VALVE POPPET
- 9892543
1шт.
18
V38371
VALVE
9892544 - JAF0339423
1шт.
19
H387688
SPRING
- 9892543
1шт.
19
V38370
SPRING
9892544 - JAF0339423
1шт.
20
N7977
BLOCK
Kit; - 9892543
1шт.
20
H407767
KIT
Shim; 9892544 - JAF0339423
1шт.
21
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
22
H387696
PLUG
- 9892543
1шт.
23
9841223
PLUG,1-1/16" - 12 ORB
Incl. 24
1шт.
24
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
2шт.
Выбрано товаров: 48
