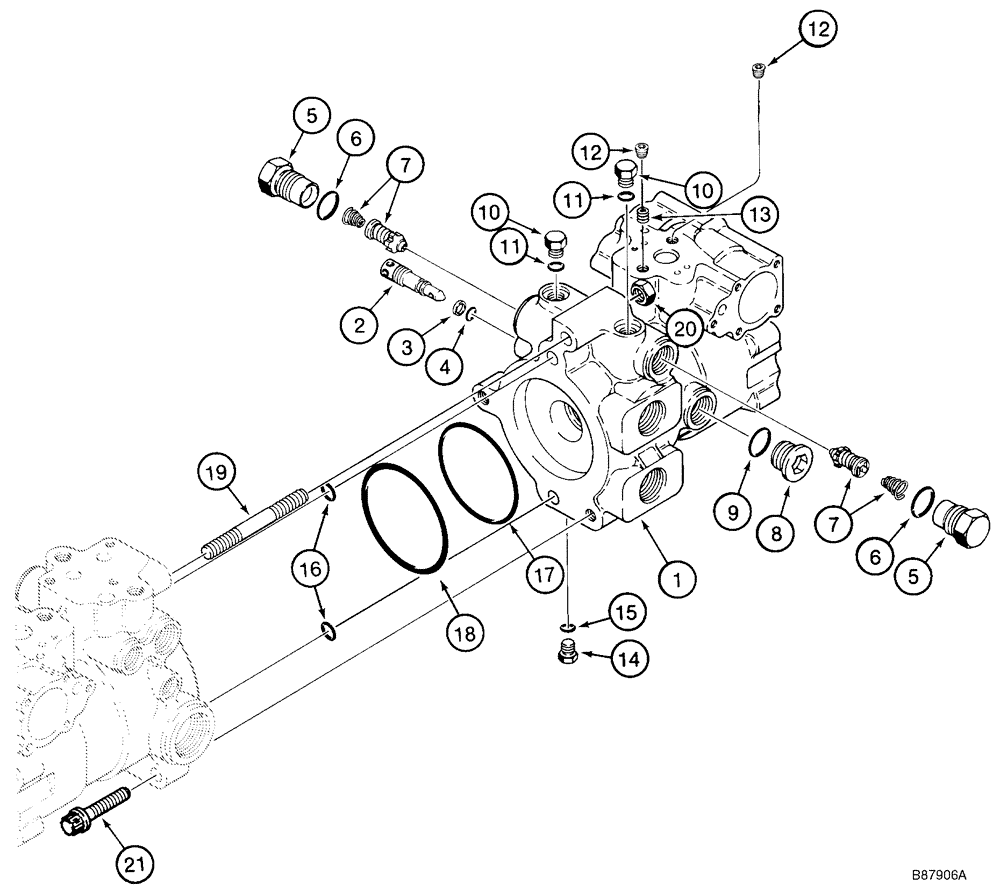

Запчасти Case IH 1845C (06-13) - PUMP ASSY, TANDEM, - JAF0339423 (06) - POWER TRAIN

D132912

PUMP

M91-4612; Tandem; Incl. 06-13 - 06-13E; - 989253; No Longer Available, Order 127929A1R, D137424

1шт.

D137398

PUMP

M91-4612; Tandem; Incl. 06-13 - 06-13E; 9892544 - 17955711; No Longer Available, Order 127929A1R

1шт.

D137461

PUMP, HYDRAULIC

M91-46101; Tandem; Incl. 06-13 - 06-13E; 17955712 - 17956882; No Longer Available, Order 127929A1R

1шт.

H672995

PUMP, HYDRAULIC

M91-46225; Tandem; Incl. 06-13 - 06-13E; 17956883 - JAF0016190; No Longer Available, Order 127929A1R

1шт.

H673153

PUMP, HYDRAULIC

M91-46260; Tandem; Incl. 06-13 - 06-13E; JAF0016191 - JAF0041367; No Longer Available, Order 127929A1R

1шт.

H673668

PUMP, HYDRAULIC

M91-46260; Tandem; Incl. 06-13 - 06-13E; JAF0041368 - JAF0121892; No Longer Available, Order 127929A1R

1шт.

127929A2

PUMP

M91-46507; Tandem; Incl. 06-13 - 06-13E; JAF0121893 - JAF0339423; Replaces 127929A1; No Longer Available, Order 388796A1, See Figure 06-14

1шт.

388796A1

PUMP,45.88 CC

Tandem; Tandem; Incl. 06-14 - 06-14D; JAF0339424 -

1шт.

388796A1R

REMAN-HYD PUMP

1845C, Prior To SN JAF0339423

1шт.

388796A1C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

.

FRONT DRIVE

1шт.

.

HOUSING AND VALVES

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

N14663

BY-PASS VALVE

1шт.

3

S99877

BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk

1шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

N14463

KIT

Valve, Relief; - 17956882; Incl. 5 - 7

2шт.

N14848

VALVE, PRESSURE RELI

EF 17956883 -; Incl. 5 - 7A

2шт.

5

NSS

NOT SOLD SEPARAT

Plug; Incl. 6

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

NSS

NOT SOLD SEPARAT

Valve, Relief

1шт.

7a

NSS

NOT SOLD SEPARAT

Spring; Used with N14848; Not Illustrated

2шт.

8

9841223

PLUG,1-1/16" - 12 ORB

Incl. 9

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

76349

PLUG,9/16" - 18 ORB

Incl. 11

2шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

F23137

PLUG

2шт.

13

N13257

PLUG

- 9892544

1шт.

13

H435773

PLUG

9892545 - 17956882

1шт.

13

N14000

PLUG

17956883 - JAF0016190

1шт.

13

H435774

PLUG

JAF0016191 - JAF0339423

1шт.

14

9672438

PLUG,7/16" - 20 ORB

Incl. 15

1шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

16

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

JAF0016191 - JAF0339423

2шт.

17

238-6238

O-RING,0.139" Thk x 3.484" ID, -238, Cl 6, 90 Duro

1шт.

18

D41420

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

1шт.

19

K608432

STUD,1/2" - 13 x 4-1/2"

1шт.

20

425-108

NUT,1/2" - 13, Gr 5

1шт.

21

26044R1

12 PT SCREW,Flg, 1/2" - 13 x 2"

2шт.

22

NSS

NOT SOLD SEPARAT

Bracket; Not Illustrated

1шт.

23

140008A1

GASKET KIT

Not Illustrated

1шт.
