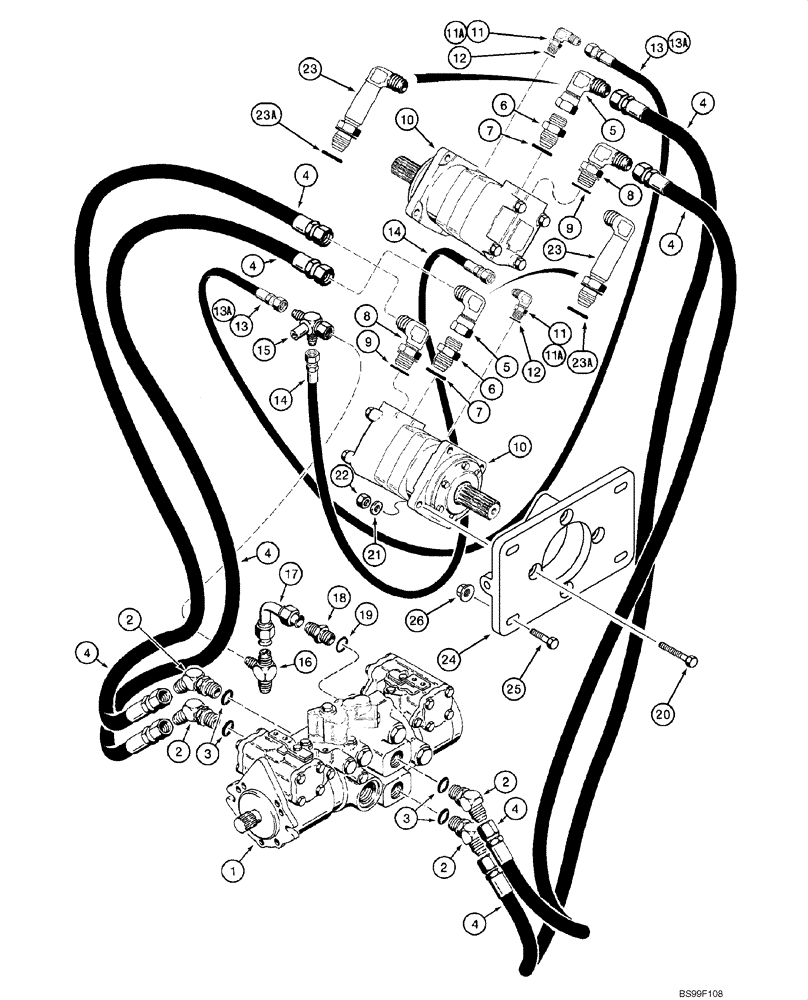

Запчасти Case IH 1845C (06-09) - HYDROSTATIC - PUMP AND DRIVE MOTORS, JAF0067438 - (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
Pump Assy; Tandem; See Fig 06-13 - 06-14D
1шт.
2
218-5140
45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
Incl. 3
4шт.
4
H435736
HOSE ASSY.,19.05mm ID x 1100mm L, SAE 100R12
1100 mm (43-3/8 in)
4шт.
5
218-5231
ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw
If Used
2шт.
6
218-5064
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
Incl. 7
2шт.
7
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
8
218-5108
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
Incl. 9
2шт.
9
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
10
REF
INSTRUCTION
Hydrostatic Drive; See Fig 06-17, 06-18
2шт.
11
218-5280
ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring
Incl. 12; If Used
2шт.
11a
218-5105
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
Incl. 12; If Used
2шт.
12
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
13
H436988
HOSE
1220 mm (48-1/8 in); LH; - JAF0102061
1шт.
13a
106497A1
HOSE ASSY.
455 mm (18 in); JAF0102062 -
2шт.
14
H436876
HOSE
850 mm (33-1/2 in); RH; - JAF0102061
1шт.
15
H435873
TEE
1шт.
16
218-1578
TEE,37 Degree, 1 1/16"-12 x 3/4"-16, Br
1шт.
17
D129154
TUBE
1шт.
18
218-5064
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
Incl. 19
1шт.
19
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
20
426-848
BOLT,Hex, 1/2" - 13 x 3", Gr 8
8шт.
21
496-21053
WASHER,17/32" x 1 1/16" x .134"
8шт.
22
232-4118
NUT,1/2"-13, GC
8шт.
23
218-5553
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
Incl. 23A
2шт.
23a
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
24
H436860
PLATE
2шт.
25
433-824
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5
8шт.
26
131-943
FLANGE NUT,Flg, 1/2"-13, G5
8шт.
Выбрано товаров: 29
