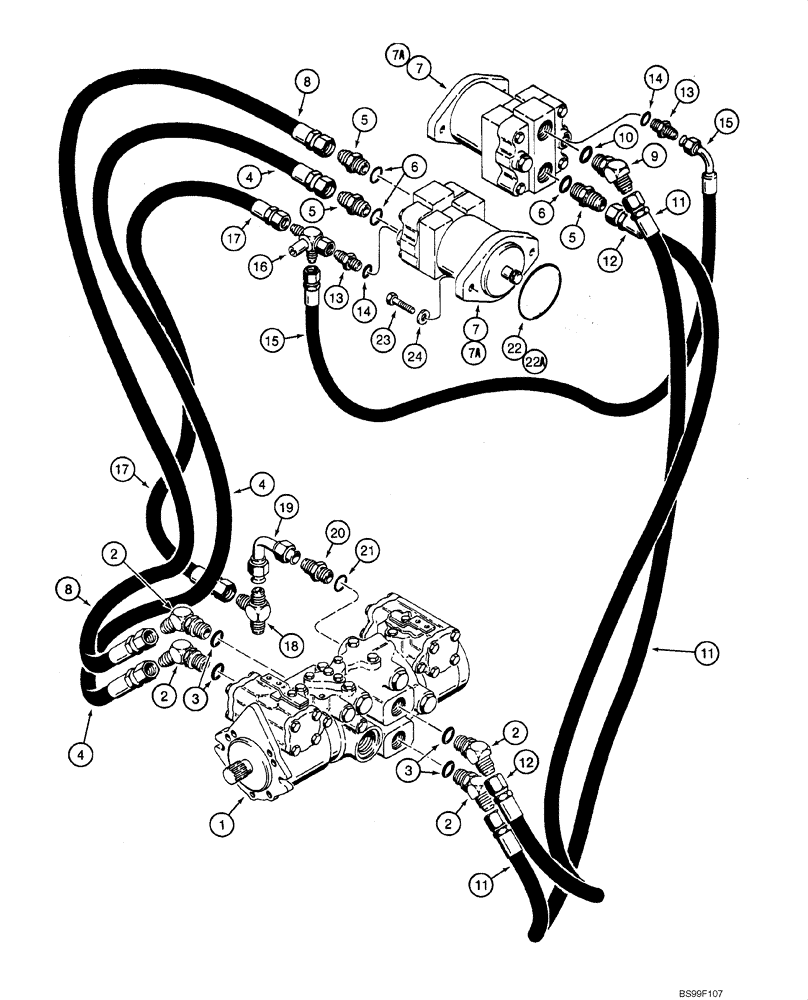

Запчасти Case IH 1845C (06-08) - HYDROSTATIC - PUMP AND DRIVE MOTORS, JAF0041368 - JAF0067437 (06) - POWER TRAIN

1

REF

INSTRUCTION

Pump Assy; Tandem; See Figs 06-13 - 06-14D

1шт.

2

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 3

4шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

4

D124638

HOSE,19.05mm ID x 725mm L, SAE 100R12

725 mm (28-5/8 in)

1шт.

5

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 6

3шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

7

D138153

HYDRAULIC MOTOR

Hydrostatic Drive; See Fig 06-15; No Longer Available, Order Ref 10A, Ref 22A

2шт.

7

1971652C1

REMAN-HYD MOTOR

Reman For New PN D138153

2шт.

7

1971653C1

CORE-MOTOR HYDRAULIC

Return Number

2шт.

7a

H674364

MOTOR, HYDRAULIC

Hydrostatic Drive; See Fig 06-15

2шт.

7a

1971652C1

REMAN-HYD MOTOR

1845C CASE UNI-LOADER SKID STEER LOADER (NORTH AMERICA) (1/86-)

2шт.

7a

1971653C1

CORE-MOTOR HYDRAULIC

Return Number

2шт.

8

D132186

HOSE ASSY.,19.05mm ID x 675mm L, SAE 100R12

675 mm (26-5/8 in)

1шт.

9

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 10

1шт.

10

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

11

D124640

HOSE,19.05mm ID x 950mm L, SAE 100R12

950 mm (37-1/2 in)

1шт.

12

D124639

HOSE,19.05mm ID x 1050mm L, SAE 100R12

1050 mm (41-3/8 in)

1шт.

13

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 14

2шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

D124717

HOSE

450 mm (17-3/4 in)

1шт.

16

H435873

TEE

1шт.

17

D124641

HOSE

350 mm (13-7/8 in)

1шт.

18

218-596

TEE,1 1/16"-12 37 Degree

1шт.

19

D129154

TUBE

1шт.

20

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 21

1шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

22

238-5242

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

Used with D138153

2шт.

22a

238-5155

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

Used with H674364

2шт.

23

113-2461

PREV TORQUE BOLT,Locking, 1/2"-13 x 1 1/2", G8

4шт.

24

H274894

WASHER

4шт.
