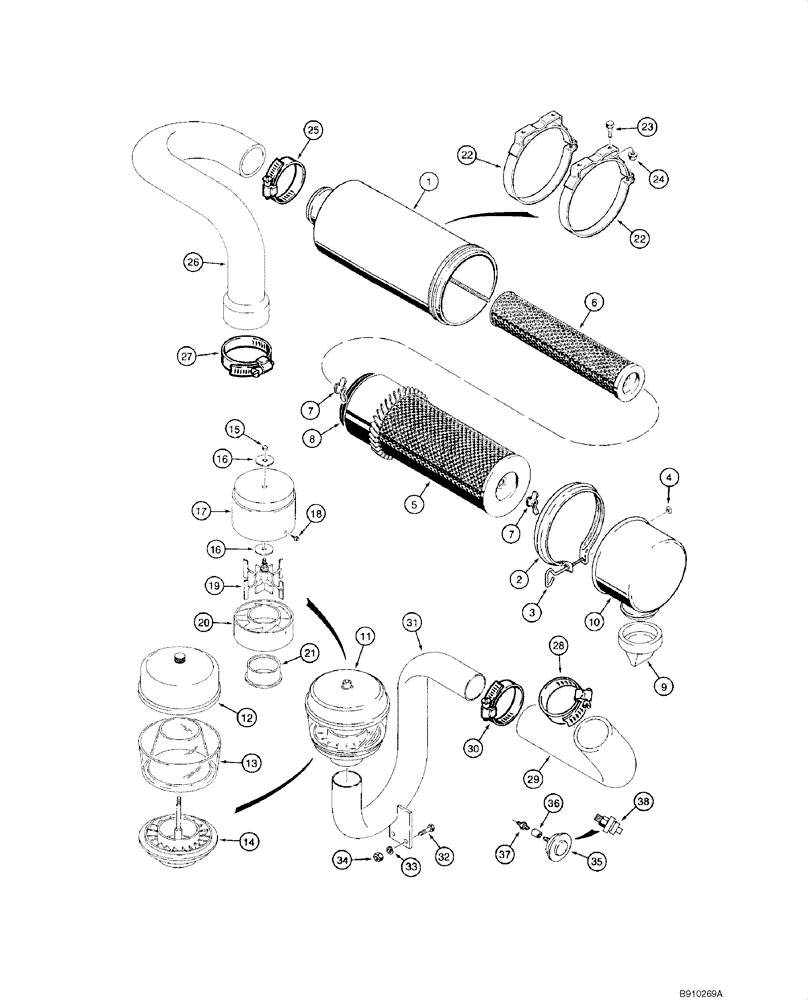

Запчасти Case IH 1845C (02-03) - AIR CLEANER - PRECLEANER ASSY (02) - ENGINE

A189348

AIR CLEANER

Incl. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

F84999

CLAMP,168.28mm

Incl. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Clamp

1шт.

3

L30338

BOLT,Band Clamp Wing, 1/4" - 20 x 3.875", Gr 2

1шт.

4

88994

SQUARE NUT,Sq, 1/4"-20

1шт.

5

A173290

AIR FILTER

Primary, Outer

1шт.

6

A173291

AIR FILTER

Secondary, Inner

1шт.

7

D78354

WING NUT

Incl. Washer

2шт.

8

D37976

GASKET,14.61mm ID x 27.43mm OD x 3.3mm Thk

1шт.

9

S113982

CAP

76 mm (3 in); Dust; - JAF0041250

1шт.

9a

A189052

DUST VALVE

51 mm (2.12 in); Dust; JAF0041251- ; Not Illustrated

1шт.

10

A184598

COVER

1шт.

11

A64589

PRECLEANER

Standard; No Longer Available; Order 258642A1

1шт.

11

258642A1

PRECLEANER

Standard; Replaces A64589; Incl. 12 - 14

1шт.

12

365412R91

COVER

1шт.

13

365413R1

BOWL

1шт.

14

NSS

NOT SOLD SEPARAT

Base

1шт.

D82128

PRECLEANER

Optional; If used; Incl. 15 - 21

1шт.

15

J906649

NUT

1/4

1шт.

16

195-2016

WASHER

4 x 1-3/4 x 1/16

2шт.

17

NSS

NOT SOLD SEPARAT

Cover

1шт.

18

280-1848

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

3шт.

19

N6640

ROTOR

1шт.

20

NSS

NOT SOLD SEPARAT

Body

1шт.

21

N6641

ADAPTER

1шт.

22

L113910

CLAMP

Incl. Hardware

2шт.

23

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

24

231-5146

FLANGE NUT,3/8"-16

4шт.

25

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

1шт.

26

D128303

INTAKE AIR HOSE,63.50 mm ID, 76.2 mm ID, SAE J200

1шт.

27

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

Air Cleaner Hose to Engine

1шт.

28

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

Precleaner Hose to Air Cleaner

1шт.

29

D133047

INTAKE AIR HOSE,63.50 mm ID, 76.2 mm ID, SAE 20R4 Class D2

1шт.

30

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

Precleaner Hose to Tube

1шт.

31

D133046

TUBE

1шт.

32

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

33

492-11031

LOCK WASHER,5/16"

2шт.

34

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

35

L103131

INDICATOR

Sender; No Longer Available; Order 1983233C1, Ref 38

1шт.

36

221-1335

COUPLING,Pipe, 1/8" NPT

1шт.

37

D36264

FITTING

1шт.

38

1983233C1

RESTRICTION SWITCH

Air Restriction Switch; Replaces L103131

1шт.
