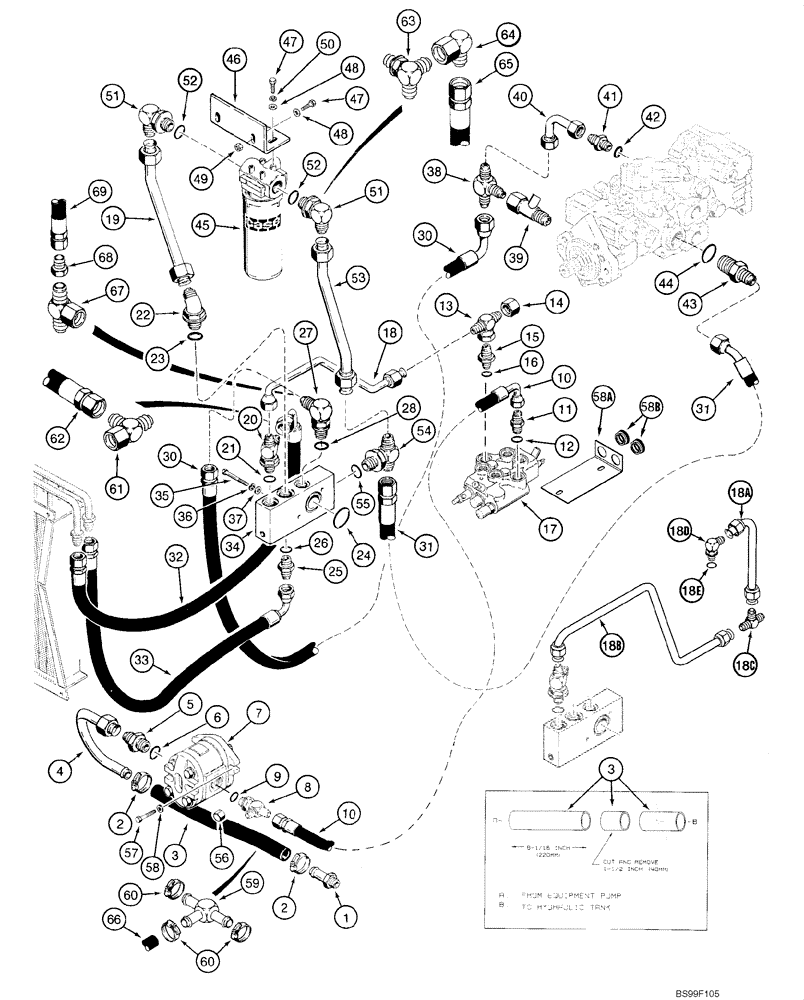

Запчасти Case IH 1845C (06-05) - HYDROSTATIC - PUMP, SUPPLY AND RETURN, JAF0102062 - (06) - POWER TRAIN

1

217-156

FITTING,1" Hose Barb x 1" Male NPTF

1шт.

2

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

3

D124619

HOSE,25.4 mm ID x 525.00 mm, SAE 100R3

Cut from S118383X

1шт.

4

103121A1

TUBE,25.4 mm OD, 205, 114 mm Length

205 mm

1шт.

5

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 6

1шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

7

REF

INSTRUCTION

Pump Assy; See Fig 06-11

1шт.

8

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. 9

1шт.

9

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

10

D134380

HOSE ASSY.,15.88mm ID x 850mm L

850 mm (33-1/2 in)

1шт.

11

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Incl. 12

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

13

218-837

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

1шт.

14

218-335

CAP,37 Degree, 1 1/16"-12

If Used

1шт.

15

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Incl. 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

REF

INSTRUCTION

Valve, Fig 08-14, 08-15, Fig 08-03

1шт.

18

104761A1

TUBE,19.05 mm OD, 475, 39 mm Length

Models with Fuel Injection Pump J935677; See Fig 03-10

1шт.

18a

297050A1

TUBE,225, 78 mm Length

Models with Fuel Injection Pump J931397; See Fig 03-09

1шт.

18b

297052A1

TUBE,606, 229 mm Length

Models with Fuel Injection Pump J931397; See Fig 03-09

1шт.

18c

218-596

TEE,1 1/16"-12 37 Degree

Models with Fuel Injection Pump J931397; See Fig 03-09

1шт.

18d

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Incl. 18E; Models with Fuel Injection Pump J931397; See Fig 03-09

1шт.

18e

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

19

104760A1

TUBE,25.4 mm OD, 503, 69.5 mm Length

1шт.

20

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 21

1шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

22

218-5147

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adj Or; Incl. 23

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

24

238-5219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

1шт.

25

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 26

1шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

27

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 28

1шт.

28

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

30

104703A1

HOSE ASSY.

1600 mm (63 in)

1шт.

31

H435844

HOSE,25.4mm ID x 1400mm L

1400 mm (55-1/8 in)

1шт.

32

H437055

HOSE,19.05mm ID x 1000mm L, SAE 100R3

1000 mm (39-3/8 in)

1шт.

For Oil Cooler See Figure 02-01

1шт.

33

D137610

HOSE ASSY.,19.05mm ID x 890mm L, SAE 100R3

890 mm (35-1/8 in)

1шт.

For Oil Cooler See Figure 02-01

1шт.

34

104702A4

MANIFOLD

Check Valve; Incl. O-ring, To Replace Order 238-5120; Component Parts Not Serviced Separately

1шт.

35

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

Replaces 413-636

2шт.

36

492-11038

LOCK WASHER,3/8"

2шт.

37

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

38

218-1578

TEE,37 Degree, 1 1/16"-12 x 3/4"-16, Br

1шт.

39

H435873

TEE

1шт.

40

D129154

TUBE

1шт.

41

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 42

1шт.

42

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

43

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

Incl. 44

1шт.

44

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

45

D125507

FILTER

Hydraulic Oil; See Fig 06-21

1шт.

46

H436292

BRACKET

1шт.

47

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

48

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

49

231-5146

FLANGE NUT,3/8"-16

2шт.

50

492-11038

LOCK WASHER,3/8"

2шт.

51

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 52

2шт.

52

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

53

104759A1

TUBE,25.4 mm OD, 553, 65 mm Length

1шт.

53

296301A1

TUBE,562, 65 mm Length

Emissions Certified Engine

1шт.

54

218-5512

TEE,1 5/16"-12, 37 Degree x1 5/16"-12 x 1 1/16"-12, O-Ring Br

Incl. 55

1шт.

55

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

56

218-756

CAP,37 Degree, 7/8"-14

1шт.

57

868-10030

12 PT SCREW,M10 x 30mm, Cl 12.9

Replaces 413-720

2шт.

58

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

(11 x 21 x 2 mm); Replaces 496-21047

2шт.

58a

194403A2

SUPPORT

1шт.

58b

195614A1

BOOT

2шт.

*

HIGH FLOW HYDRAULIC SYSTEM

1шт.

59

D55776

TEE

Ref 59 - 69, Used on High Flow Hydraulic Systems

1шт.

60

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

Ref 59 - 69, Used on High Flow Hydraulic Systems

3шт.

61

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

Ref 59 - 69, Used on High Flow Hydraulic Systems

1шт.

62

117289A1

HOSE ASSY.

1250 mm (49-1/4 in); See Fig 08-10, Ref 11; Ref 59 - 69, Used on High Flow Hydraulic Systems

1шт.

63

103754A1

ELBOW,90 Degree, 1 5/16" ORB x 1 1/16"-12 JIC

Replaces 218-5110, Ref 51, See Above; Ref 59 - 69, Used on High Flow Hydraulic Systems

1шт.

64

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

Ref 59 - 69, Used on High Flow Hydraulic Systems

1шт.

65

117288A1

HOSE ASSY.

630 mm (24-7/8 in); See Fig 08-10, Ref 30; Ref 59 - 69, Used on High Flow Hydraulic Systems

1шт.

66

117290A1

HOSE ASSY.

400 mm (15-3/4 in); See Fig 08-10, Ref 31; Ref 59 - 69, Used on High Flow Hydraulic Systems

1шт.

67

218-837

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

Ref 59 - 69, Used on High Flow Hydraulic Systems

1шт.

68

218-767

REDUCER,37 Degree, 1 1/16"-12, Fem x 3/4"-16 Male

Ref 59 - 69, Used on High Flow Hydraulic Systems

1шт.

69

117291A1

HOSE ASSY.

2250 mm (88-5/8 in); See Fig 08-10, Ref 32; Ref 59 - 69, Used on High Flow Hydraulic Systems

1шт.
