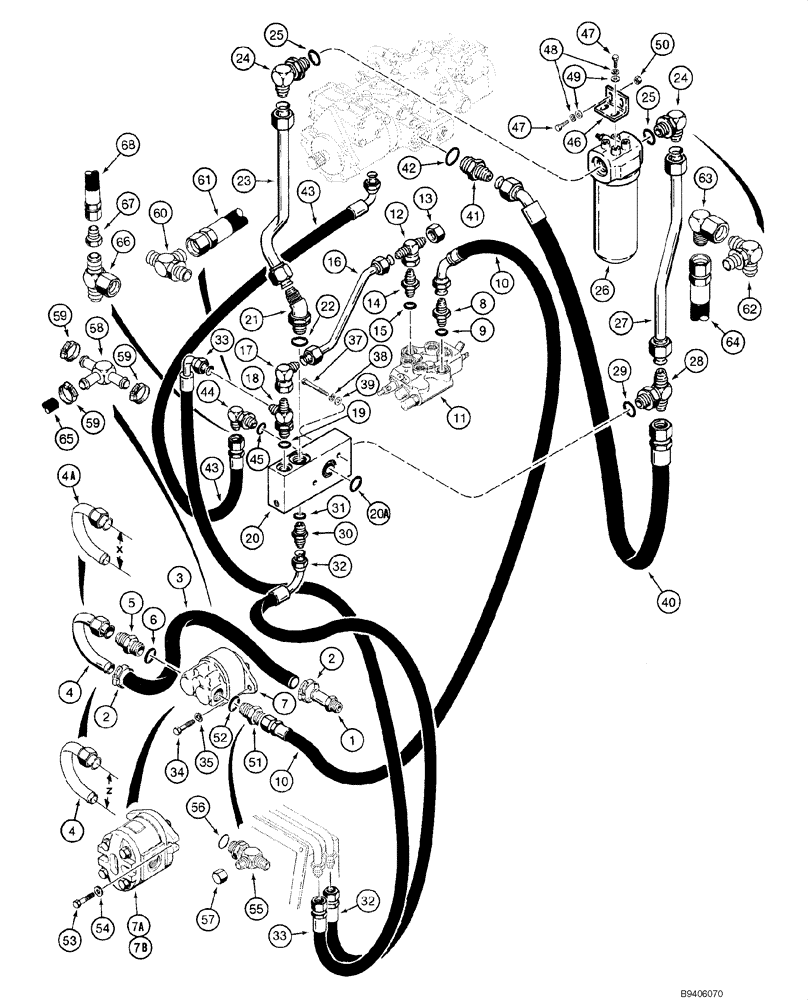

Запчасти Case IH 1845C (06-04) - HYDROSTATIC - PUMP, SUPPLY AND RETURN, JAF0041368 - JAF0102061 (06) - POWER TRAIN

1

217-156

FITTING,1" Hose Barb x 1" Male NPTF

1шт.

2

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

2шт.

3

D124619

HOSE,25.4 mm ID x 525.00 mm, SAE 100R3

Cut from S118383X

1шт.

4

D126506

TUBE

102 mm; Used with Ref 7

1шт.

4a

103121A1

TUBE,25.4 mm OD, 205, 114 mm Length

205 mm

1шт.

5

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 6

1шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

7

D135547

PUMP

See Fig 06-11; No Longer Used, Order Ref 7B, 4A; Also Order 131693A1; Fig 06-11, Ref 1A

1шт.

7a

H674907

PUMP

See Fig 06-11; No Longer Used, Order Ref 7B, 4A; Also Order 131693A1; Fig 06-11, Ref 1A

1шт.

7b

131694A1

PUMP

No Longer Available, Order 319602A1; See Fig 06-11

1шт.

7b

319602A1

PUMP, HYDRAULIC

See Fig 06-11; No Longer Available, Order 87413847

1шт.

7b

87413847

PUMP, HYDRAULIC

Component Parts Not Serviced Separately; For Seal Replacement, Order 87413478

1шт.

7b

87413847R

REMAN-HYD PUMP

1шт.

7b

87413847C

CORE-HYDRAULIC PUMP

Return Number

1шт.

87413478

SEAL KIT

Not Illustrated

1шт.

8

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Incl. 9

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

D134380

HOSE ASSY.,15.88mm ID x 850mm L

850 mm (33-1/2 in)

1шт.

11

REF

INSTRUCTION

Valve, Control; Loader; See Fig 08-14, 08-15

1шт.

12

218-837

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

1шт.

13

218-335

CAP,37 Degree, 1 1/16"-12

1шт.

14

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Incl. 15

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

16

H673722

PIPE

1шт.

17

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

18

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 19

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

20

D137500

MANIFOLD

Check Valve; Incl. 20A; See Fig 08-13, 08-17

1шт.

20a

238-5219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

1шт.

21

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 22

1шт.

22

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

21шт.

23

H673718

PIPE

1шт.

24

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 25

1шт.

25

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

26

D125507

FILTER

Hydraulic Oil; See Fig 06-21

1шт.

27

H673717

PIPE

1шт.

28

218-5187

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 29

1шт.

29

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

30

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 31

1шт.

31

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

32

D137610

HOSE ASSY.,19.05mm ID x 890mm L, SAE 100R3

890 mm (35-1/8 in)

1шт.

33

H437055

HOSE,19.05mm ID x 1000mm L, SAE 100R3

1000 mm (39-3/8 in)

1шт.

34

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

2шт.

35

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

37

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

38

492-11038

LOCK WASHER,3/8"

2шт.

39

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

40

H435844

HOSE,25.4mm ID x 1400mm L

1400 mm (55-1/8 in)

1шт.

41

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

Incl. 42

1шт.

42

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

43

104703A1

HOSE ASSY.

1600 mm (63 in)

1шт.

44

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 45

1шт.

45

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

46

H436292

BRACKET

1шт.

47

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

48

492-11038

LOCK WASHER,3/8"

2-4шт.

49

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

50

231-5146

FLANGE NUT,3/8"-16

2шт.

51

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Incl. 52

1шт.

52

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

53

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

2шт.

54

496-21047

WASHER

15/32 x 59/64 x 7/64

2шт.

55

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. 56

1шт.

56

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

57

218-756

CAP,37 Degree, 7/8"-14

1шт.

58

D55776

TEE

Ref 58 - 68 Used on High Flow Hydraulic System

1шт.

59

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

Ref 58 - 68 Used on High Flow Hydraulic System

3шт.

60

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

Ref 58 - 68, Used on High Flow Hydraulic System

1шт.

61

117289A1

HOSE ASSY.

1250 mm (49-1/4 in); See Fig 08-10, Ref 11; Ref 58 - 68 Used on High Flow Hydraulic System

1шт.

62

103754A1

ELBOW,90 Degree, 1 5/16" ORB x 1 1/16"-12 JIC

Ref 58 - 68, Used on High Flow Hydraulic System

1шт.

63

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

Ref 58 - 68, Used on High Flow Hydraulic System

1шт.

64

117288A1

HOSE ASSY.

630 mm (24-7/8 in); See Fig 08-10, Ref 30; Ref 58 - 68, Used on High Flow Hydraulic System

1шт.

65

117290A1

HOSE ASSY.

400 mm (15-3/4 in); See Fig 08-10, Ref 31; Ref 58 - 68, Used on High Flow Hydraulic System

1шт.

66

218-837

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

Ref 58 - 68, Used on High Flow Hydraulic System

1шт.

67

218-767

REDUCER,37 Degree, 1 1/16"-12, Fem x 3/4"-16 Male

Ref 58 - 68, Used on High Flow Hydraulic System

1шт.

68

117291A1

HOSE ASSY.

2250 mm (88-5/8 in); See Fig 08-10, Ref 32; Ref 58 - 68, Used on High Flow Hydraulic System

1шт.
