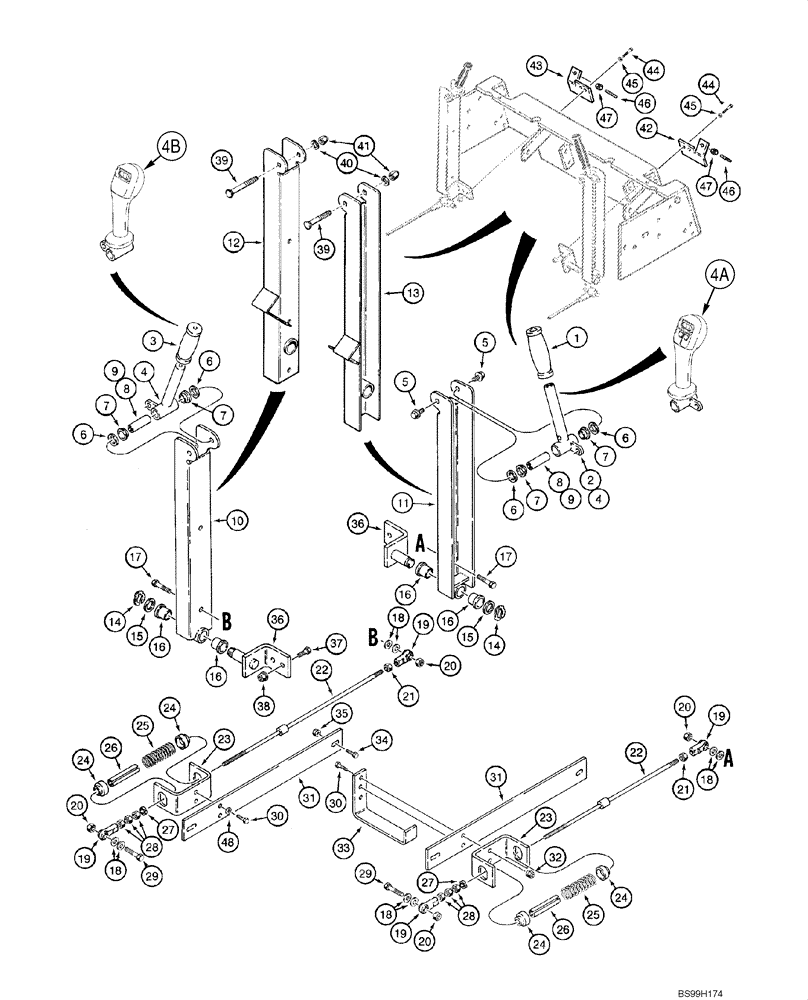

Запчасти Case IH 1845C (06-01) - CONTROLS - PUMP, FORWARD AND REVERSE (06) - POWER TRAIN

1

D133282

HANDLE

With Hole; If used; Replaces D128268

1шт.

2

D133283

LEVER

RH; Used with D133282; - JAF0289363

1шт.

3

D133282

HANDLE

North American Models; Without hole; If used; Replaces D128268

1-2шт.

4

D128278

LEVER

RH; LH; North American Models; Used with D128268; Replaces H439164

2шт.

4a

347923A1

HANDLE

RH; JAF0289364 - ; No Longer Available; Order 337855A1; 347598A1

1шт.

337855A1

LEVER

RH; LH; Not Illustrated

1шт.

347598A1

HANDLE

RH; Not Illustrated

1шт.

4b

347922A1

HANDLE

LH; JAF0289364 - ; No Longer Available, Order 337855A1; 339752A1

1шт.

339752A1

HANDLE

LH; Use with 337855A1

1шт.

5

409-7612

BOLT,3/8"-16 x 1.09" OAL

Used with D137033, Ref 10; D137034, Ref 11

4шт.

6

D128964

WASHER

If used

1шт.

7

D123758

FLANGED BEARING,15.9mm ID x 17.4mm OD x 9.46mm L

Replaces E20959

4шт.

8

D128243

SPACER

Used with D137033, Ref 10; D137034; Ref 11

2шт.

9

H435707

SPACER,11.66mm ID x 15.88mm OD x 53mm L

Used with H673190, Ref 12; H674191, Ref 13

2шт.

10

D137033

ARM

LH; No Longer Available, Order H673190,(REF 1); H673191, Ref 13

1шт.

11

D137034

ARM

No Longer Available, Order 12, 13; RH

1шт.

12

H673190

ARM

LH

1шт.

13

H673191

ARM

RH

1шт.

14

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

Replaces D95097

2шт.

15

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

1шт.

16

72323

BUSHING,19.07mm ID x 28.57mm OD x 19.05mm L

4шт.

17

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

18

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

8шт.

19

A32398

BALL JOINT

3/8 fem NF; Replaces S108030

4шт.

20

232-4116

NUT,3/8"-16, GC

4шт.

21

425-116

NUT,3/8" - 24, Gr 5

2шт.

22

D128248

ROD

2шт.

23

D127561

BRACKET

2шт.

24

D63156

SPRING CUP

4шт.

25

D70304

COMPRESSION SPRING,0.955" OD x 4.00" L

2шт.

26

D127563

PIN, SPLIT (COTTER)

PIN, COTTER

2шт.

27

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

If used

2шт.

28

425-116

NUT,3/8" - 24, Gr 5

6шт.

29

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

30

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

31

D127565

BRACKET

- JAF0040228

2шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

33

D127557

BRACKET

RH; If used

1шт.

34

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

35

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

36

D128237

PIVOT

2шт.

37

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

38

231-5146

FLANGE NUT,3/8"-16

4шт.

39

411-544

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 3/4", Gr 2

Used with 12, 13

2шт.

41

234-10431

CROWN NUT,Crown, 5/16"-18

Used with 12, 13

2шт.

H673166

SET

Incl. 42 - 48

1шт.

42

H673168

LARGE PLATE

PLATE, LARGE RH

1шт.

43

H673167

LARGE PLATE

PLATE, LARGE LH

1шт.

44

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

45

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

46

481-33832

SET SCREW,3/8"-16 x 2", Slotted

2шт.

47

425-146

JAM NUT,3/8" - 16, Gr 5

2шт.

48

87016603

WASHER,0.34" ID x 0.69" OD x 0.07" Thk

Replaces H426775; H426775

2шт.

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP Used with H673191; Not Illustrated

1шт.
