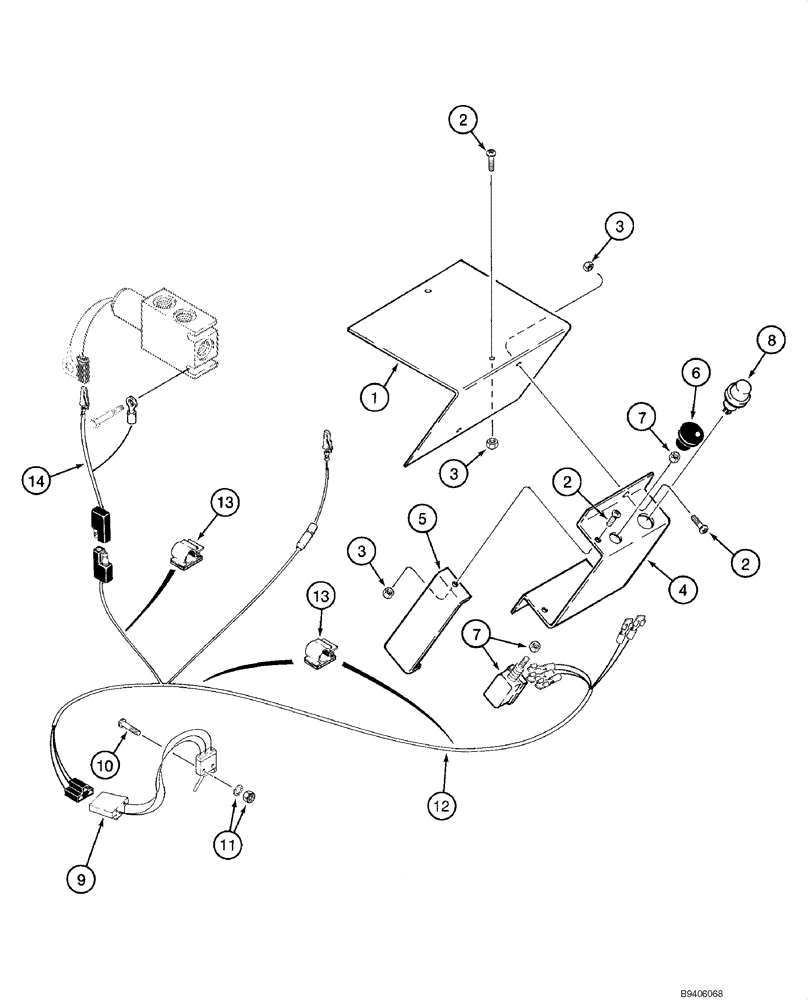

Запчасти Case IH 1845C (04-19) - HARNESS - BRAKE (EUROPE), JAF0142298 - (04) - ELECTRICAL SYSTEMS

1

125103A1

SUPPORT

1шт.

2

440-10810

SCREW,Cross Pan Hd, #8-32 x 5/8"

6шт.

3

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

6шт.

4

141281A1

COVER

Cover, Brake Switch

1шт.

5

104823A1

COVER

1шт.

6

141063A1

BUTTON

Knob, Parking Brake

1шт.

7

141100A1

IGNITION SWITCH

Switch, SPDT Push-Pull

1шт.

8

H603852

LIGHT

1шт.

9

1343288C2

LIMIT SWITCH

Brake

1шт.

10

140-103

SCREW,Cross Pan Hd, #6 - 32 x 3/4"

2шт.

11

193-1003

NUT,Keps, w/LW,#6-32

2шт.

12

141435A1

HARNESS

1шт.

13

H439303

CLIP

1шт.

14

142196A1

HARNESS

1шт.
