(04-18A) - HARNESS - HYDRAULICS, HIGH FLOW (EUROPE)

Запчасти Case IH 1845C (04-18A) - HARNESS - HYDRAULICS, HIGH FLOW (EUROPE) (04) - ELECTRICAL SYSTEMS

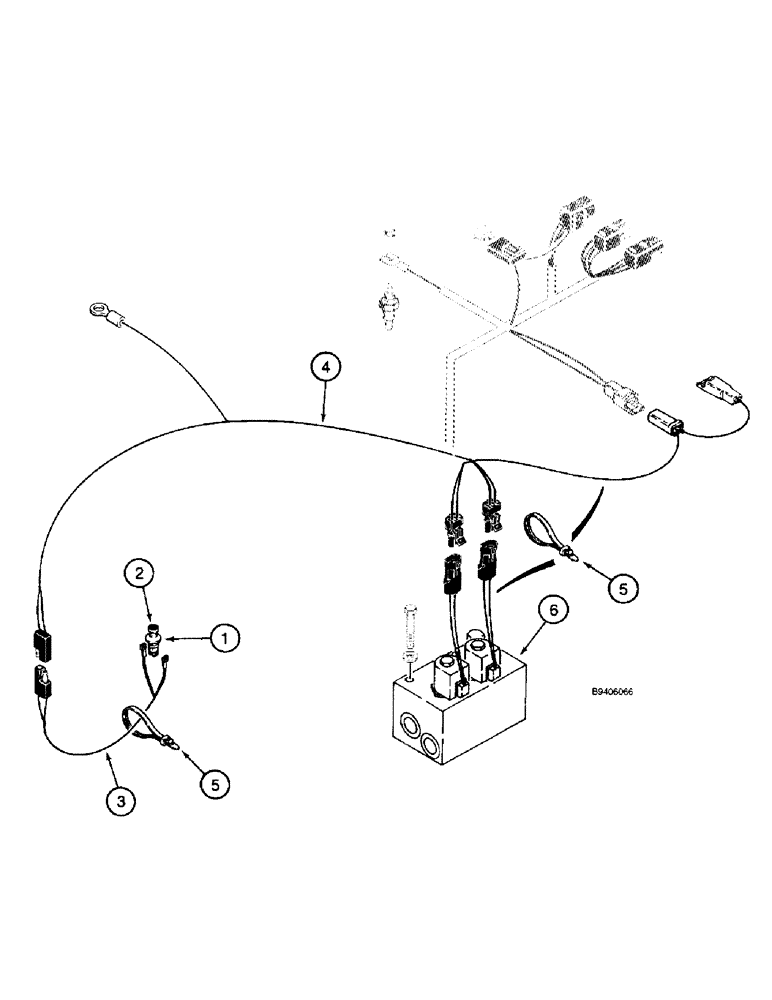

Схема запчастей Case IH 1845C - (04-18A) - HARNESS - HYDRAULICS, HIGH FLOW (EUROPE) (04) - ELECTRICAL SYSTEMS
2
3
5
4
1
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

SINGLE DIRECTIONAL

1шт.

1

D74330

SWITCH

High Flow

1шт.

2

137092A1

BUTTON

Switch

1шт.

3

137072A1

HARNESS

Jumper

1шт.

4

112654A1

HARNESS

High Flow; Single Directional

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

3шт.

6

117870A1

SOLENOID

High Flow; Single Directional; See Fig 08-19

1шт.

7

137073A1

DECAL

High Flow; Single Directional; Not Illustrated; See Fig 09-46

1шт.
