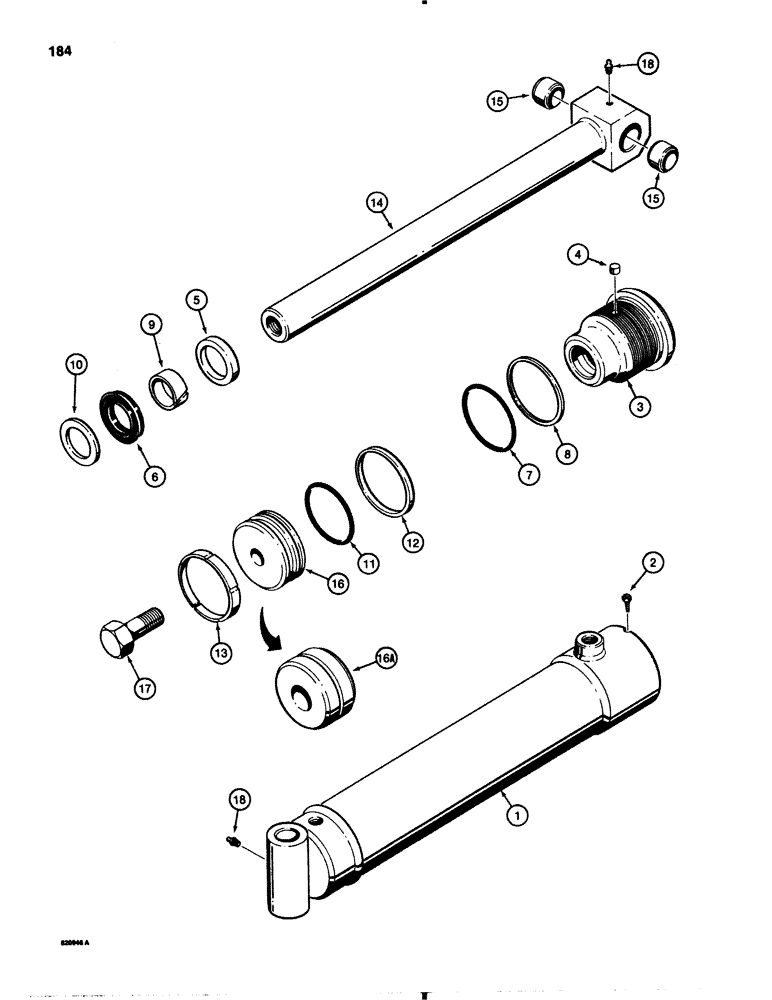

Запчасти Case IH 1845B (184) - G33744 SCARIFIER CYLINDER (08) - HYDRAULICS

G33744

CYLINDER BLOCK

CYLINDER scarifier, 3", 76 mm ID x 13", 330 mm stroke, Inc: Ref. 1 - 18

1шт.

1

G32271

TUBE,19.56" L

cylinder

1шт.

2

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW self-tapping, hex slotted head, No. 8 - 32 NC x 3/8", plated, if used

1шт.

G104222

GLAND

ASSEMBLY cylinder, Inc: Ref. 3 - 10

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

4

G102569

PLUG

nylon, thread locking, gland, if used

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER piston rod, outer

1шт.

Part number D63672 subs to 222930A 1 hub assembly-axle the assembly includes 1 axle hub, 2 cup-bearings, and 1 grease fitting. PA-TSG 9-1-99

1шт.

Part of seal kit, P/N G109418

1шт.

6

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

U-CUP SEAL piston rod, wide, with o-ring

1шт.

Part number D63672 subs to 222930A 1 hub assembly-axle the assembly includes 1 axle hub, 2 cup-bearings, and 1 grease fitting. PA-TSG 9-1-99

1шт.

Part of seal kit, P/N G109418

1шт.

7

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

gland

1шт.

Part number D63672 subs to 222930A 1 hub assembly-axle the assembly includes 1 axle hub, 2 cup-bearings, and 1 grease fitting. PA-TSG 9-1-99

1шт.

Part of seal kit, P/N G109418

1шт.

8

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

BACKUP RING gland O-ring

1шт.

Part number D63672 subs to 222930A 1 hub assembly-axle the assembly includes 1 axle hub, 2 cup-bearings, and 1 grease fitting. PA-TSG 9-1-99

1шт.

Part of seal kit, P/N G109418

1шт.

9

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center

1шт.

Part number D63672 subs to 222930A 1 hub assembly-axle the assembly includes 1 axle hub, 2 cup-bearings, and 1 grease fitting. PA-TSG 9-1-99

1шт.

Part of seal kit, P/N G109418

1шт.

10

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

piston rod, narrow, used in addition to item 6 in some glands

1шт.

Part number D63672 subs to 222930A 1 hub assembly-axle the assembly includes 1 axle hub, 2 cup-bearings, and 1 grease fitting. PA-TSG 9-1-99

1шт.

Part of seal kit, P/N G109418

1шт.

11

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

piston

1шт.

Part number D63672 subs to 222930A 1 hub assembly-axle the assembly includes 1 axle hub, 2 cup-bearings, and 1 grease fitting. PA-TSG 9-1-99

1шт.

Part of seal kit, P/N G109418

1шт.

12

G32034

RING

seal

1шт.

Part number D63672 subs to 222930A 1 hub assembly-axle the assembly includes 1 axle hub, 2 cup-bearings, and 1 grease fitting. PA-TSG 9-1-99

1шт.

Part of seal kit, P/N G109418

1шт.

13

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING wear, piston, used with G33747 piston

1шт.

Part number D63672 subs to 222930A 1 hub assembly-axle the assembly includes 1 axle hub, 2 cup-bearings, and 1 grease fitting. PA-TSG 9-1-99

1шт.

Part of seal kit, P/N G109418

1шт.

14

G33753

ROD

piston, 1-1/2", 38 mm diameter, Inc: Ref. 15

1шт.

15

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

rod eye

2шт.

16

G33747

PISTON

cylinder, double groove, uses G100449 wear ring, no longer

1шт.

available, order G104108 piston for service

1шт.

16a

G104108

PISTON

cylinder, single groove, replaces G33747 piston

1шт.

17

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING straight, 1/8" NPT

2шт.

G109418

GASKET KIT

KIT seal, Includes: Ref. 5, 6, 7, 8, 9, 10, 11, 12, 13

1шт.

Part number D63672 subs to 222930A 1 hub assembly-axle the assembly includes 1 axle hub, 2 cup-bearings, and 1 grease fitting. PA-TSG 9-1-99

1шт.

Part number D63672 subs to 222930A 1 hub assembly-axle the assembly includes 1 axle hub, 2 cup-bearings, and 1 grease fitting. PA-TSG 9-1-99

1шт.
