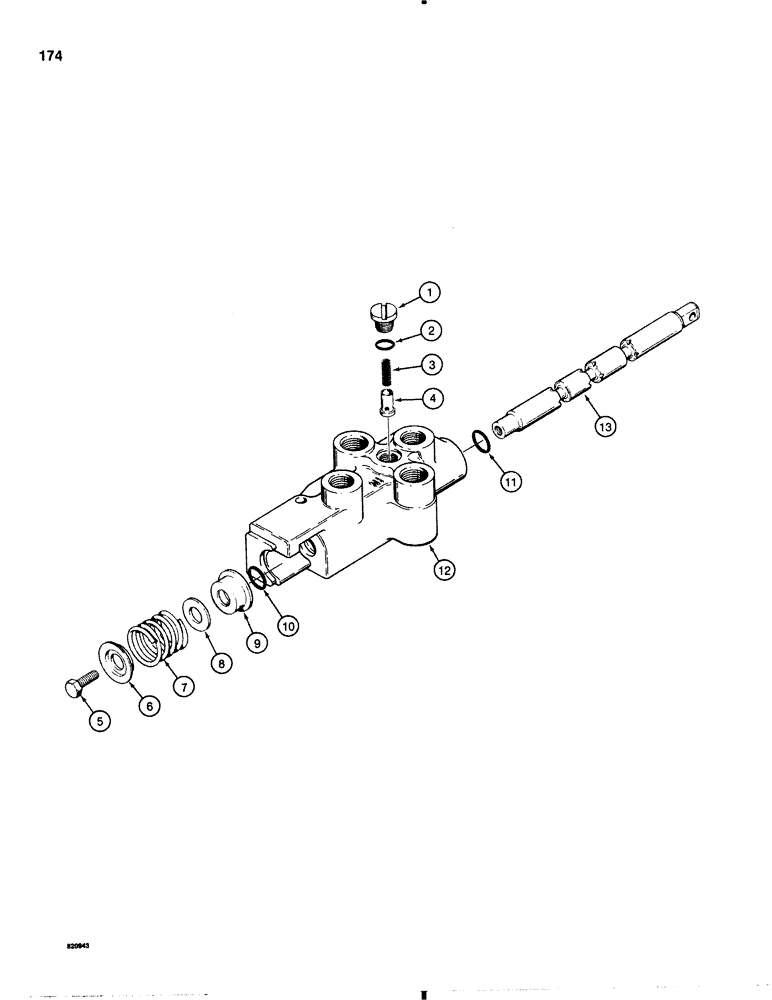

Запчасти Case IH 1845B (174) - D64670 AUXILIARY CONTROL VALVE (08) - HYDRAULICS

D64670

VALVE

CONTROL VALVE auxiliary, one spool, Inc: Ref. 1 - 13

1шт.

1

H47506

PLUG

load check valve, Inc: Ref. 2

1шт.

2

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

plug

1шт.

3

FH730374

SPRING

load check valve

1шт.

4

FH730366

PLUNGER

POPPET load check valve

1шт.

5

H428292

SCREW,1/4" - 20 x 0.972"

special

1шт.

6

F59116

WASHER

RETAINER spring

1шт.

7

H220517

SPRING

spool, centering

1шт.

8

H746164

WASHER

special

1шт.

9

H52902

CAP

RETAINER spring

1шт.

10

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

valve body, retainer end

1шт.

11

F37887

O-RING

valve body, spool end

1шт.

12

NSS

NOT SOLD SEPARAT

BODY control valve

1шт.

13

NSS

NOT SOLD SEPARAT

SPOOL control valve

1шт.
