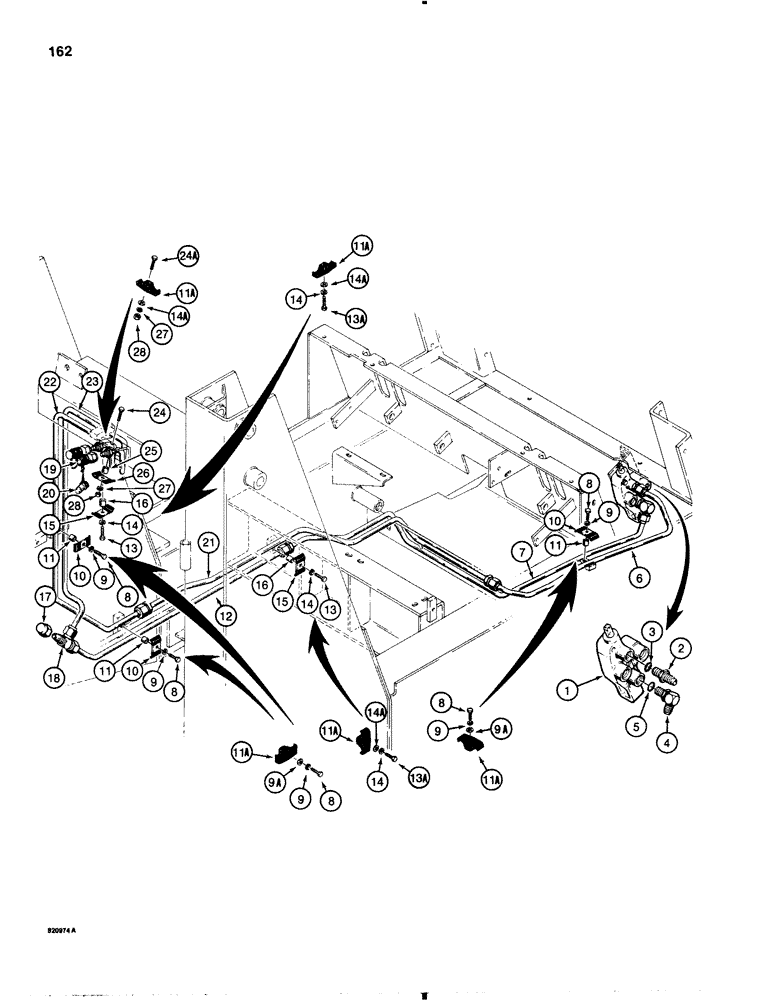

Запчасти Case IH 1845B (162) - AUXILIARY HYDRAULIC CIRCUIT, REAR HYDRAULIC CIRCUIT WITHOUT SELECTOR VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE auxiliary, parts list Figure: 174

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTER, HYD., , Adapter, Straight, Male, Incl. Ref 3 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

4

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree, adjustable, Inc: Ref. 5

1шт.

6

D122081

TUBE

auxiliary control valve, upper port

1шт.

7

D122083

TUBE

auxiliary control valve, lower port

1шт.

8

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

9a

195-525

WASHER,3/8", SAE

flat, 3/8", plated, if used

3шт.

10

D42504

CLAMP

tube, metal with plastic coated ends, if used

3шт.

11

D33551

BUSHING

SPACER clamp, used with D42504 clamp

3шт.

11a

D120679

CLAMP,Tube, 1/2"

tube, plastic, if used

6шт.

12

D70297

HYD TUBE,0.5" OD x 4.58, 33.15" L

TUBE connection to tee, lower port

1шт.

13

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

If used Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

13a

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

If used Hex, 5/16"-18 x 1 1/4", G5

2шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

14a

195-103

WASHER,5/16"

flat, , plated, if used 5/16"

3шт.

15

R17319

CLAMP

tube, metal with plastic coated ends, if used

2шт.

16

D33551

BUSHING

SPACER clamp, used with R17319 clamp

2шт.

17

218-755

CAP,37 Degree, 3/4"-16

Tee 37º, 3/4"-16

1шт.

18

218-594

TEE,3/4"-16, 37 Degree

male

1шт.

19

D60707

COUPLING, BREAK AWAY

QUICK DISCONNECT female

2шт.

20

D62402

PLUG

dust, quick disconnect

2шт.

21

D69438

TUBE,0.5" OD x 35, 4.7" L

connecting, upper port

1шт.

22

D69452

HYD TUBE,0.5" OD x 37, 18.58" L

TUBE outer, upright crossmember

1шт.

23

D69446

TUBE,0.5" OD x 26.47, 20.6" L

inner, tee to upright crossmember

1шт.

24

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

If used Hex, 5/16"-18 x 1 1/2", G5

1шт.

24a

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

If used Hex, 5/16"-18 x 1 3/4", G5

1шт.

25

D33551

BUSHING

SPACER clamp, used with R 17319 clamp

1шт.

26

R17319

CLAMP

tube, metal with plastic coated ends, if used

1шт.

27

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

28

9635082

NUT,5/16" - 18, Gr 5

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.
