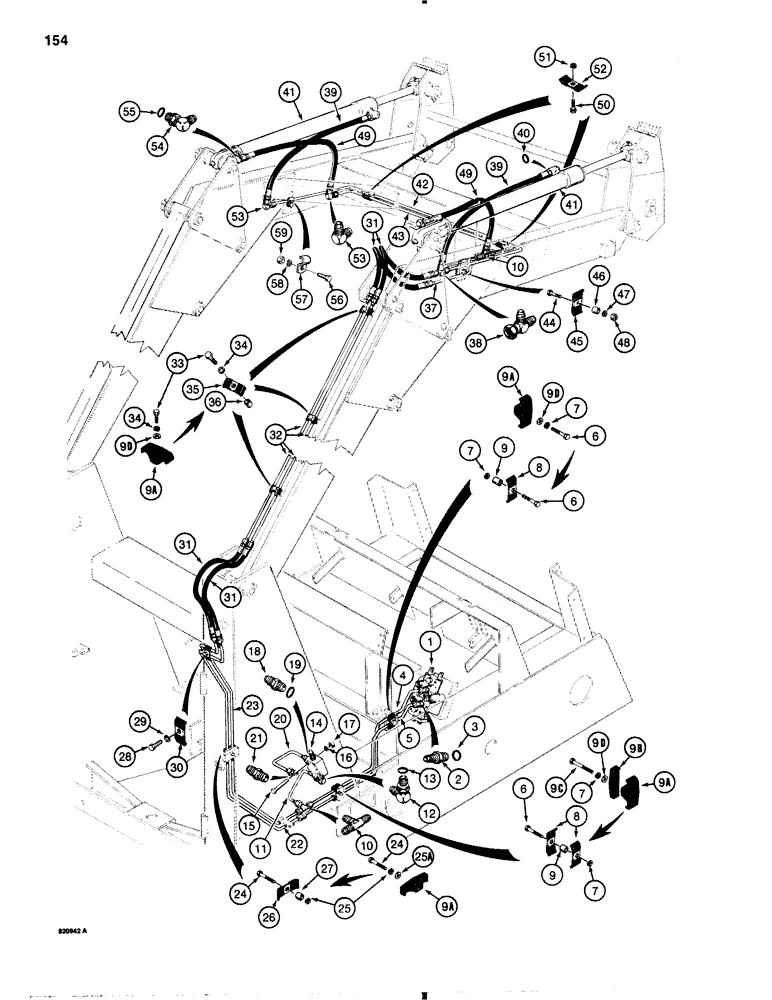

Запчасти Case IH 1845B (154) - LOADER BUCKET CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE loader, two spool, parts list Figure: 168

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, male, Incl. Ref 3 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

adapter

1шт.

4

D68847

HYD TUBE,0.5" OD x 19.11, 18.32" L

TUBE at control valve, A port

1шт.

5

D68849

HYD TUBE,0.5" OD x 18.4, 11.8" L

TUBE at control valve, B port

1шт.

6

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

8

R17319

CLAMP

tube, metal with plastic coated ends, if used

3шт.

9

D33551

BUSHING

SPACER clamp, used with R 17319 clamp

2шт.

9a

D120679

CLAMP,Tube, 1/2"

tube, plastic, if used

6шт.

9b

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

tube, plastic, if used

1шт.

9c

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

hex head, 5/16" - 18 NC x 1-7/8", plated, if used

1шт.

9d

195-103

WASHER,5/16"

flat, , plated, if used 5/16"

5шт.

10

218-594

TEE,3/4"-16, 37 Degree

male

2шт.

11

D64468

TUBE

to relief valve inlet

1шт.

12

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

90 degree, relief valve inlet, Inc: Ref. 13

1шт.

13

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

14

REF

INSTRUCTION

RELIEF VALVE parts list Fig. 170

1шт.

15

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

2шт.

16

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

17

9635082

NUT,5/16" - 18, Gr 5

2шт.

18

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER straight, male, relief valve outlet, Inc: Ref. 19

1шт.

19

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

20

D64470

TUBE

relief valve, Serial Range: outlet-tank

1шт.

21

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER straight, male

1шт.

22

D69081

HYD TUBE,0.5" OD x 43.5, 21.2" L

TUBE outer, to lift arms

1шт.

23

D69079

HYD TUBE,0.5" OD x 42.05, 21.1" L

TUBE inner, to lift arms

1шт.

24

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

25a

195-525

WASHER,3/8", SAE

flat, 3/8", plated, if used

1шт.

26

D42504

CLAMP

tube, metal with plastic coated ends, if used

1шт.

27

D33551

BUSHING

SPACER clamp, used with D42504 clamp

1шт.

28

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

29

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

30

R17319

CLAMP

tube, metal with plastic coated ends, if used

1шт.

31

D61484

HOSE

hydraulic, 29", 737 mm long

4шт.

32

D64344

TUBE

hydraulic, loader arm

2шт.

33

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

3шт.

34

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

35

R17319

CLAMP

tube, metal with plastic coated ends, if used

3шт.

36

D33551

BUSHING

SPACER clamp used with R17319 clamp

3шт.

37

D68609

HYD TUBE,0.5" OD x 9.2, 2.27" L

TUBE special connecting

1шт.

38

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

male, swivel

1шт.

39

D70254

HOSE,9.53mm ID x 762mm L, SAE 100R2

rollback, 30", 762 mm long, Inc: Ref. 40

2шт.

41

REF

INSTRUCTION

CYLINDER loader bucket, parts list Figure 180

2шт.

42

D71682

TUBE,0.5" OD x 14.7, 32.24" L

crossover, inner

1шт.

43

D67055

PIPE

TUBE crossover, outer

1шт.

44

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

45

R17319

CLAMP

tube

1шт.

46

D76208

SPACER

clamp

1шт.

47

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

48

9635082

NUT,5/16" - 18, Gr 5

1шт.

49

D64604

HOSE,9.53mm ID x 558.8mm L, SAE 100R1

dump, 22", 559 mm long

2шт.

50

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

51

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

52

R17319

CLAMP

tube

2шт.

53

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

male 90º, 3/4"-16, 37º x 3/4"-16, 37º

2шт.

54

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree, adjustable, Inc: Ref. 55

2шт.

56

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

57

49778

CLAMP

tube

1шт.

58

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

59

9635082

NUT,5/16" - 18, Gr 5

1шт.

40

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.

55

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.
