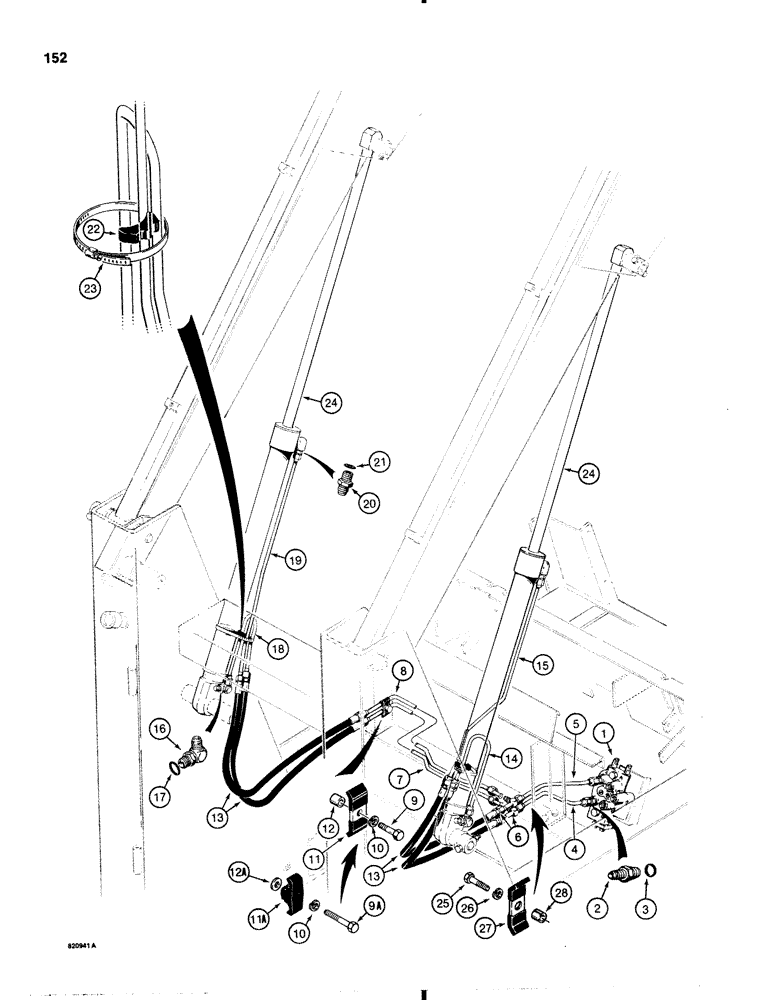

Запчасти Case IH 1845B (152) - LOADER LIFT CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE loader, two spool, parts list Figure 168

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, male, Incl. Ref 3 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

adapter

1шт.

4

D71008

TUBE,0.5" OD x 1.22, 8.38" L

at control valve, B port

1шт.

5

D71006

HYD TUBE,0.5" OD x 1.85, 9.12" L

TUBE at control valve, A port

1шт.

6

D71000

PIPE,0.5" OD x 2.8" L

TUBE special connecting

2шт.

7

D71004

HYD TUBE,0.5" OD x 22.81, 3.5" L

TUBE crossover, lower

1шт.

8

D71002

HYD TUBE,0.5" OD x 22.77, 3.5" L

TUBE crossover, upper

1шт.

9

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

Used with R17319 clamp, item 11 Hex, 5/16"-18 x 1 1/4", G5

1шт.

9a

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

Used with D120679 clamp, item 11A Hex, 5/16"-18 x 1 1/2", G5

1шт.

10

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

WASHER lock, 5/16", plated

1шт.

11

R17319

CLAMP

tube, metal with plastic coated ends, if used

1шт.

11a

D120679

CLAMP,Tube, 1/2"

tube, plastic, if used

1шт.

12

D33551

BUSHING

SPACER clamp, used with R17319 clamp

2шт.

12a

195-103

WASHER,5/16"

flat, , plated, used with D120679 clamp, item 11A 5/16"

1шт.

13

D61484

HOSE

hydraulic, 29", 737 mm long

4шт.

14

D64531

TUBE

lift cylinder, closed end, right-hand

1шт.

15

D64527

TUBE

lift cylinder, rod end, right-hand

1шт.

16

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree, adjustable, Inc: Ref. 17

2шт.

18

D64529

TUBE

lift cylinder, closed end, left-hand

1шт.

19

D64525

TUBE

lift cylinder, rod end, left-hand

1шт.

20

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTER, HYD., , Adapter, Straight, Male, Incl. Ref 21 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

22

R24703

SUPPORT

SPACER tube, rubber

2шт.

23

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP worm screw type

2шт.

24

REF

INSTRUCTION

CYLINDER loader lift, parts list Fig. 178

2шт.

25

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

Replaces 1-1/2" long bolt used on models with plastic tube clamp Hex, 5/16"-18 x 1 1/4", G5

1шт.

26

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Replaces item 12A flat washer used on models with plastic tube clamp 5/16"

1шт.

27

R17319

CLAMP

tube, metal with plastic coated ends, replaces plastic clamp used on some models

1шт.

28

D76208

SPACER

clamp, used with R17319 clamp

1шт.

17

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.
