Запчасти Case IH 1845B (148) - PARKING LATCH (07) - BRAKES

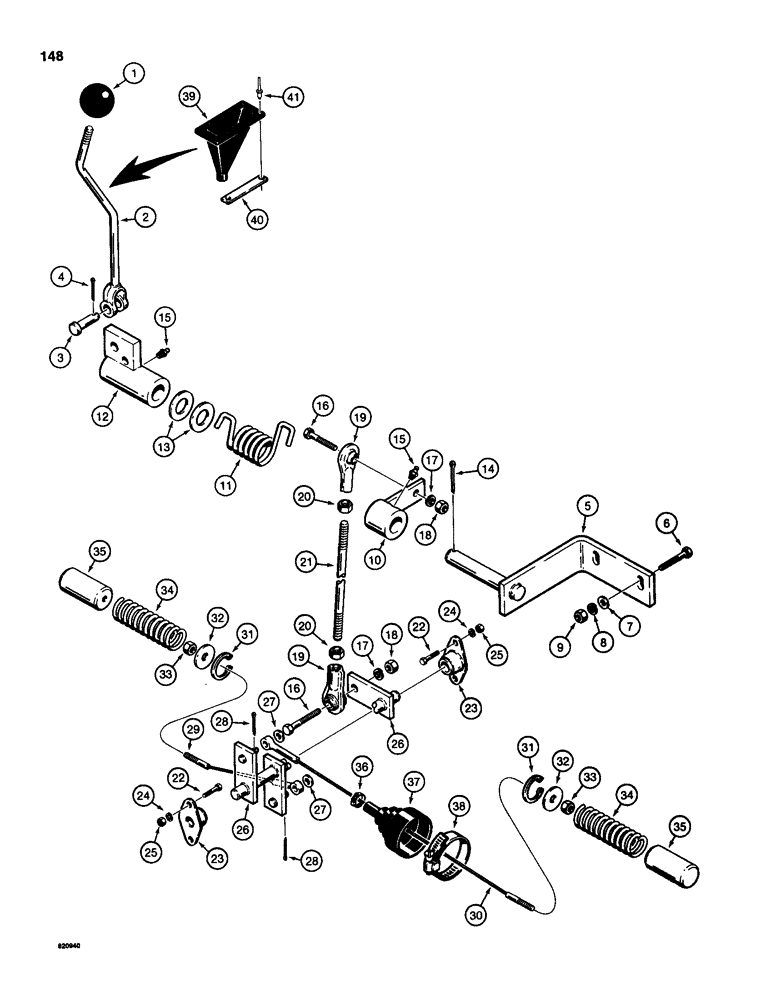

Схема запчастей Case IH 1845B - (148) - PARKING LATCH (07) - BRAKES
31
36
4
32
3
25
20
41
17
13
33
2
24
35
23
34
16
15
9
11
25
35
34
17
28
8
15
22
26
18
32
16
30
39
27
29
33
6
7
19
27
24
20
10
28
22
19
26
18
38
5
37
40
14
23
21
31
1
12

Артикул

Название

Примечание

Количество

1

D60437

KNOB

parking lever

1шт.

2

D64233

LEVER

parking

1шт.

3

141-54

CLEVIS PIN,3/8" x 1 1/16"

1шт.

4

132-331

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

1шт.

5

D72975

BRACKET

SHAFT AND BRACKET parking latch mounting

1шт.

6

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

7

195-525

WASHER,3/8", SAE

flat, 3/8", plated

2шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

10

D70242

LEVER

shaft

1шт.

11

D71942

SPRING

lever

1шт.

12

D72026

LEVER

control lever mounting

1шт.

13

195-2087

WASHER,0.81" ID x 1.12" OD x 0.15" Thk

flat, special

2шт.

14

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING straight, 1/8" NPT

2шт.

16

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

19

D59922

BALL JOINT

rod end, 3/8", female

2шт.

20

129-123

NUT,3/8"-24, G5

2шт.

21

D72976

ROD

brake

1шт.

22

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

23

D63966

FLANGED BEARING,0.508" ID x 1.12" OD x 0.56"

BEARING flange style

2шт.

24

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

25

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

26

D64231

DIPPER

BELLCRANK brake rod

1шт.

27

195-518

WASHER,1/4", SAE

flat, 1/4", plated

2шт.

28

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

29

D64143

CABLE

brake, left-hand

1шт.

30

D64142

CABLE

brake, right-hand

1шт.

31

A37550

SNAP RING,1.00", Int, #100

Ring, Snap, 1.00", Int, #100

2шт.

32

195-525

WASHER,3/8", SAE

flat, 3/8", plated

2шт.

33

129-141

JAM NUT,Jam, 1/4"-20, G5

2шт.

34

D64141

SPRING

brake latch

2шт.

35

D64228

PIN,25.45mm OD x 53.34mm L

brake latch

2шт.

36

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

2шт.

37

D70018

BOOT

rubber, seal

2шт.

38

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

screw type #28, 1.31/2.25 Type F Worm

2шт.

39

D75731

BOOT

parking latch, used only on models with noise control

1шт.

40

D76875

LOCKING TAB

TAB boot, used with item 39

2шт.

41

151-538

RIVET,Pop, 3/16" x .575"

POP RIVET 3/16", used with item 39

4шт.

Выбрано товаров: 41
