Запчасти Case IH 1845B (146) - AXLES AND WHEELS (06) - POWER TRAIN

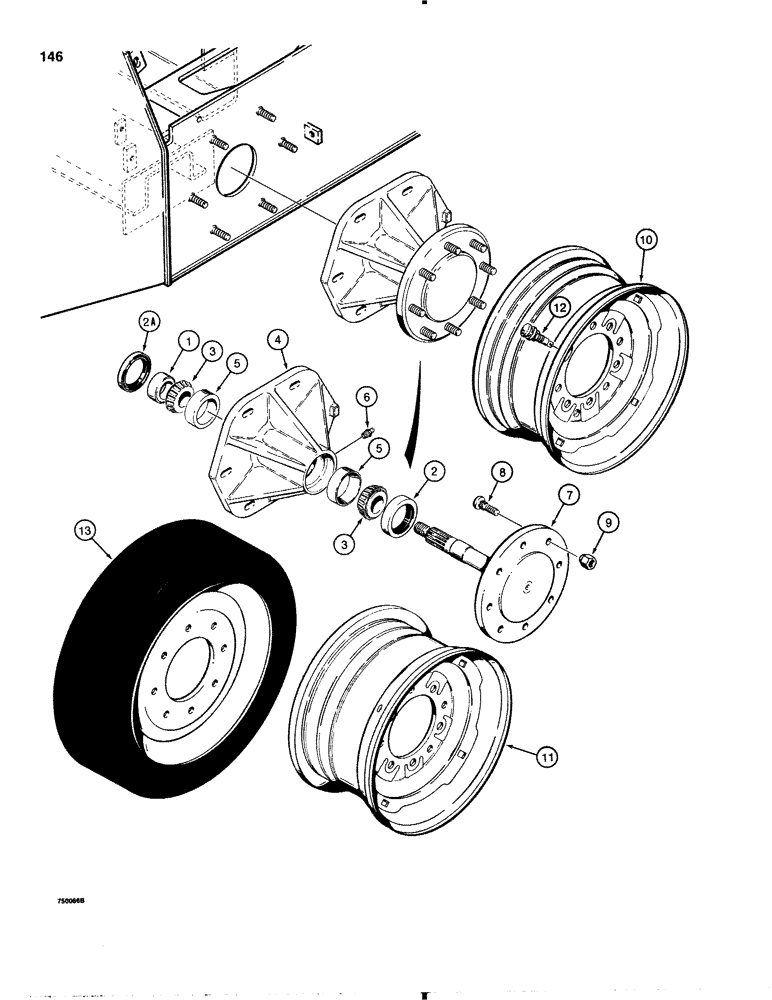

Схема запчастей Case IH 1845B - (146) - AXLES AND WHEELS (06) - POWER TRAIN
13
2
3
4
5
12
10
11
9
2a
3
6
1
5
8
7

Артикул

Название

Примечание

Количество

1

D64018

SPACER,50.85mm ID x 63.58mm OD x 18.11mm L

axle

4шт.

2

D63674

SEAL,63.5mm ID x 89.15mm OD x 11.13mm Thk

grease, outer

4шт.

2a

A156927

OIL SEAL,63.5mm ID x 89.08mm OD x 6.76mm Thk

grease, inner

4шт.

3

D63653

ROLLER BEARING,2.0005" ID

TAPERED ROLLER BEARING axle

8шт.

D63672

HUB

ASSEMBLY axle, Inc: Ref. 4 - 6

4шт.

4

NSS

NOT SOLD SEPARAT

HUB axle

1шт.

5

R32216

BEARING CUP,82 mm OD x 17 mm

CUP bearing

2шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING straight, 1/8" NPT

1шт.

D67818

AXLE

ASSEMBLY wheel, Inc: Ref. 7 - 8

4шт.

7

NSS

NOT SOLD SEPARAT

AXLE wheel

1шт.

8

D72157

WHEEL BOLT

BOLT press-in, 9/16" - 18 NF, special

8шт.

9

G49041

WHEEL NUT

hex, 9/16" - 18 NF, special

32шт.

10

D67871

WHEEL

rim, for 7.50" x 16" tire

4шт.

11

D67136

WHEEL

rim, for 12.00" x 16.5" tire

4шт.

12

D48692

VALVE

STEM rim, used with items 10 and 11

4шт.

13

REF

INSTRUCTION

WHEEL with solid rubber tire, machinery item, see Ref. 2 for ordering

4шт.

Part number D63672 subs to 222930A 1 hub assembly-axle the assembly includes 1 axle hub, 2 cup-bearings, and 1 grease fitting. PA-TSG 9-1-99

1шт.

Part number D67818 axle assembly - axle includes 1 axle and 8 wheel bolt studs. PA-TSG 9-1-99

1шт.

B93175 Wheel Bearing Kit consists of: 1 Pc Ref 2 - D63674 seal, 1 Pc Ref 2A - R24000 seal, 2 Pcs Ref 3 - D63653 cone and 2 Pcs Ref 5 - R32216 cup. 1 kit per wheel) 3/3/99 BW CAM

1шт.

Выбрано товаров: 19
