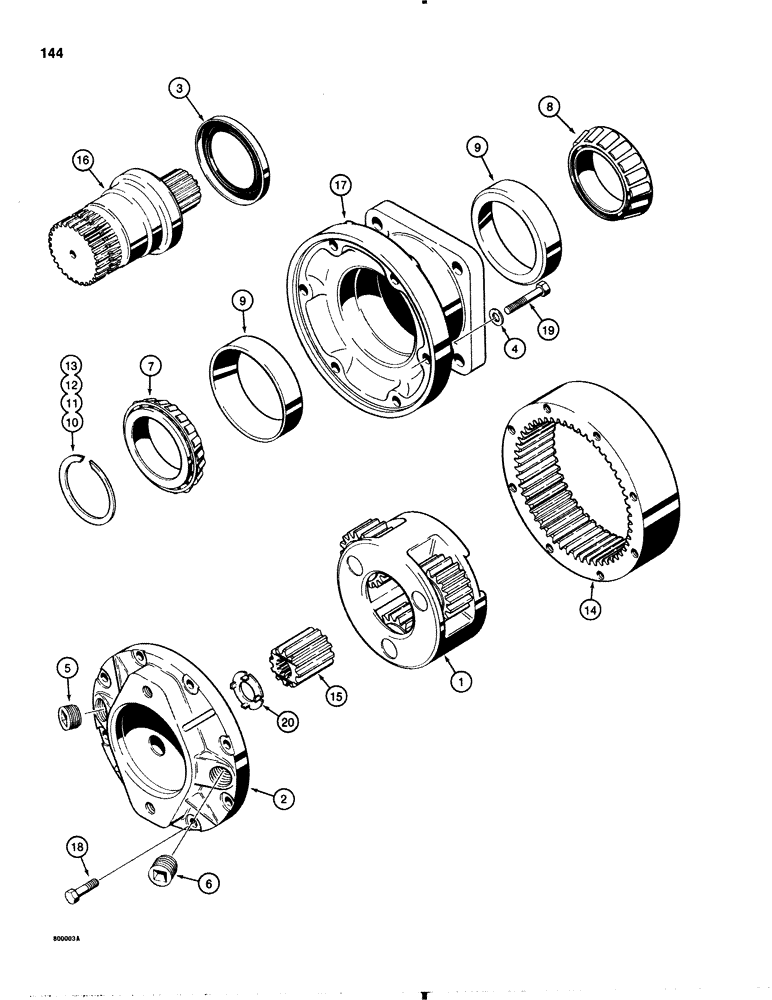

Запчасти Case IH 1845B (144) - D83254 PLANETARY (06) - POWER TRAIN

D83254

GEAR WHEEL

PLANETARY ASSEMBLY used with 17 tooth sprocket, Inc: Ref. 1 - 20

2шт.

D83254R

1845B

REMAN-REDUCTION UNIT

2шт.

D83254C

Return Number

CORE-REDUCTION UNIT

1шт.

1

N6350

CARRIER

PLANETARY head

1шт.

2

N6351

COVER

planetary

1шт.

3

N6352

OIL SEAL

OIL SEAL planetary

1шт.

4

N6353

WASHER

flat, special

6шт.

5

221-844

PLUG,Hex Soc, 1/2"-14

hex socket, 1/2" NPT

1шт.

6

221-886

DRAIN PLUG,Hex Hd, 1/2" NPT

PLUG hex socket, magnetic, 1/2" NPT

1шт.

7

T15892

TAPERED BEARING,2.625" ID x 0.866"

housing

1шт.

8

N6354

ROLLER BEARING,2.688" ID x 0.8741"

TAPERED ROLLER BEARING housing

1шт.

9

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP tapered roller bearing

2шт.

10

N6355

SHIM,.116" Thk

RETAINING RING, .116" - .118" thick, color code dark green

1шт.

11

N6356

SHIM

RETAINING RING, .123" - .125" thick, color code plain

1шт.

12

N6357

SHIM

RETAINING RING, .131" - .133" thick, color code blue

1шт.

13

N6358

SHIM

RETAINING RING, .108" - .110" thick, color code orange

1шт.

14

N6359

RING

GEAR planetary

1шт.

15

N6360

GEAR

SUN GEAR planetary

1шт.

16

N6361

SHAFT

output

1шт.

17

N6362

HOUSING

planetary

1шт.

18

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

8шт.

19

14-630

BOLT,Hex, 3/8" - 24 x 1-7/8", Gr 5

hex head, 3/8" - 24 NF x 1-7/8"

6шт.

20

N6363

WASHER

THRUST WASHER sun gear

1шт.

WASHERS USED ON EITHER SIDE OF GEARS IS 139077A1

1шт.
