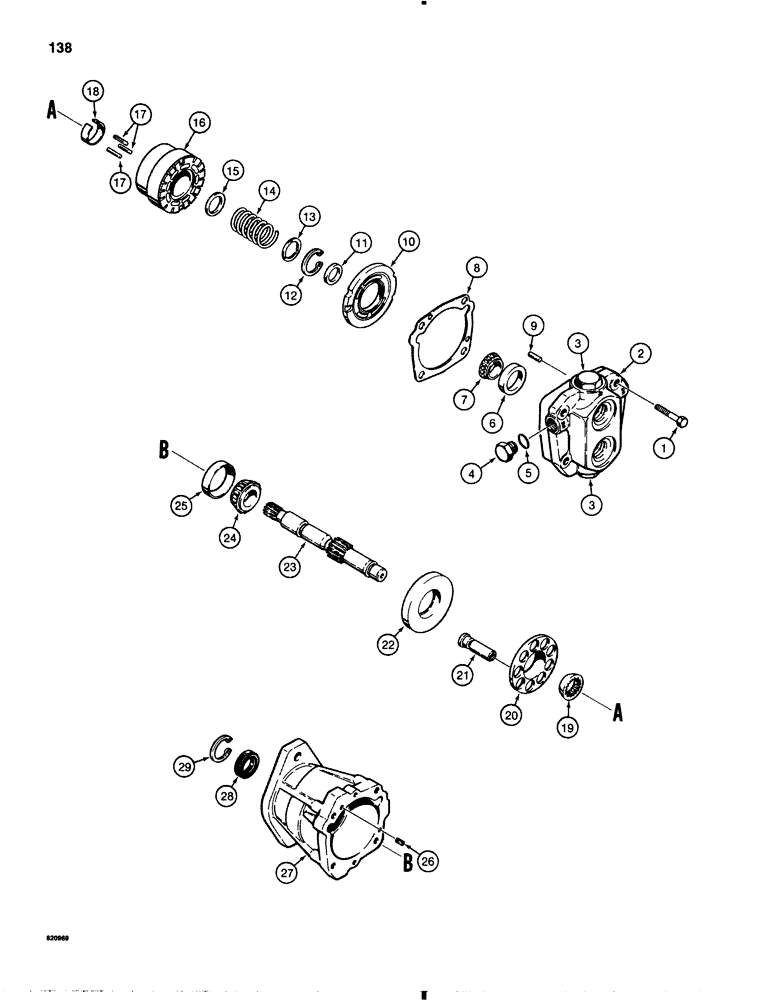

Запчасти Case IH 1845B (138) - D91933 HYDROSTATIC DRIVE MOTOR (06) - POWER TRAIN

D91933

MOTOR, HYDRAULIC

MOTOR hydrostatic drive, Inc: Ref. 1 - 29

2шт.

1

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

2

NSS

NOT SOLD SEPARAT

PLATE backing

1шт.

3

NSS

NOT SOLD SEPARAT

PLUG special, do not remove

2шт.

4

86512512

PLUG,7/8" - 14 ORB

Incl. Ref. 5 Hex Hd, 7/8"-14 ORB

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

plug

1шт.

6

FB14849

BEARING CUP

tapered roller bearing

1шт.

7

FB14850

ROLLER BEARING

TAPERED ROLLER BEARING shaft to back plate

1шт.

8

N8305

GASKET

back plate to motor housing

1шт.

9

A47309

PIN

headless, 1/4" x 1/2"

1шт.

10

N8306

PLATE

port

1шт.

11

A47303

KIT

bearing spacer, includes eleven spacers ranging in size from 0.139" - 0.169", 3.53 mm - 4.29 mm in increments of 0.003", 0.08 mm

1шт.

12

NLS

NO LONGER SERVICED

Ring, Snap, , cylinder block 1.625", Int, #162

1шт.

Part of kit, P/N N8304

1шт.

13

A47300

SPRING WASHER

WASHER spring, outer, special

1шт.

Part of kit, P/N N8304

1шт.

14

NSS

NOT SOLD SEPARAT

SPRING cylinder block

1шт.

Part of kit, P/N N8304

1шт.

15

A47299

WASHER

spring, inner, special

1шт.

Part of kit, P/N N8304

1шт.

16

NSS

NOT SOLD SEPARAT

BLOCK cylinder

1шт.

Part of kit, P/N N8304

1шт.

17

A47296

PIN

cylinder block

3шт.

Part of kit, P/N N8304

1шт.

18

A47297

SNAP RING,7.11mm Thk, Int

pin

1шт.

Part of kit, P/N N8304

1шт.

19

A47293

WASHER

spherical, special

1шт.

Part of kit, P/N N8304

1шт.

20

A47292

PLATE

piston shoe

1шт.

Part of kit, P/N N8304

1шт.

21

A47334

PACKAGE

KIT piston, includes nine pistons and nine shoes

1шт.

Part of kit, P/N N8304

1шт.

22

NSS

NOT SOLD SEPARAT

SWASH PLATE hydraulic drive motor

1шт.

Part of kit, P/N N8304

1шт.

23

N8307

SHAFT

hydraulic drive motor

1шт.

24

A31272

ROLLER BEARING,1" ID x 0.8125"

TAPERED ROLLER BEARING shaft to motor housing

1шт.

25

D59595

TAPERED BEARING

CUP tapered roller bearing

1шт.

26

N8308

PIN

DOWEL PIN back, Serial Range: plate-housing

2шт.

27

NSS

NOT SOLD SEPARAT

HOUSING hydraulic drive motor

1шт.

28

A47480

SEAL,25.35mm ID x 44.78mm OD x 7.57mm Thk

shaft

1шт.

29

G109044

SNAP RING,1.75", Int, #175

Ring, Snap, , seal 1.75", Int, #175

1шт.

N8304

KIT

rotating group, Includes: Ref. 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22

1шт.
