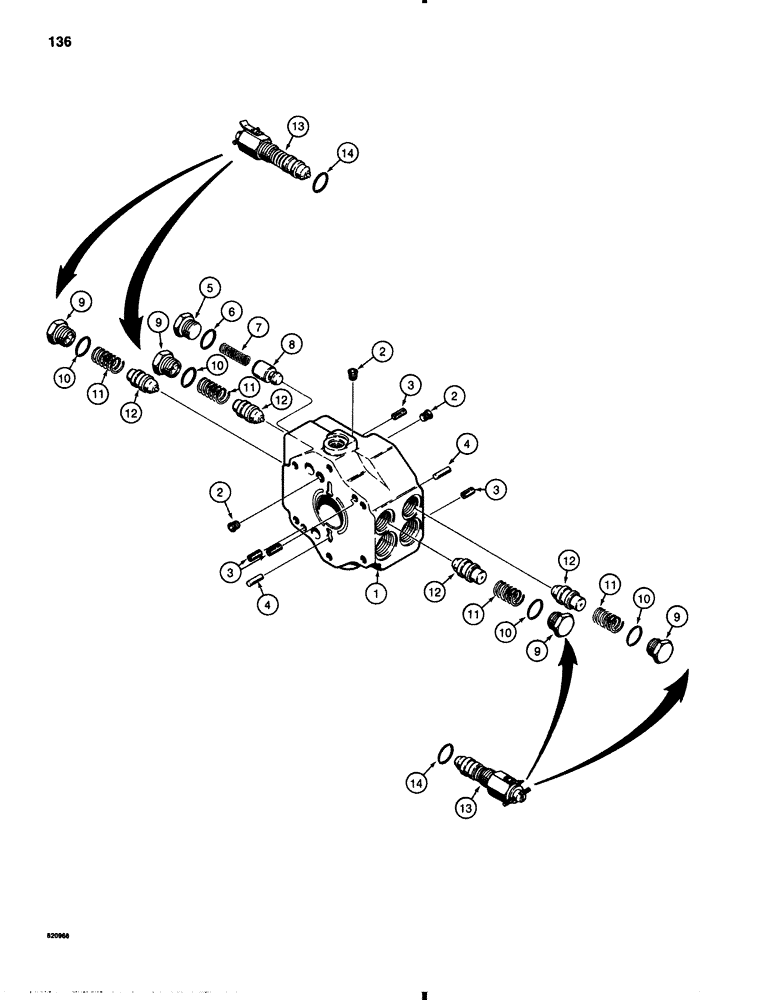

Запчасти Case IH 1845B (136) - TANDEM PUMP ASSEMBLY, VALVE BLOCK, OPTIONAL DRIVE CIRCUIT RELIEF VALVE, ALLOWS MACHINE TO BE TOWED (06) - POWER TRAIN

D82518

PUMP

ASSEMBLY tandem, Sperry-Vickers, right-hand and left-hand, Inc: Ref. 1 - 12

1шт.

drive, also includes parts on Figures: 132 and 134

1шт.

NSS

NOT SOLD SEPARAT

VALVE BLOCK ASSEMBLY tandem pump, Inc: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

BLOCK valve

1шт.

2

221-841

PLUG

hex socket head, 1/4" NPT

3шт.

3

A47301

PIN

DOWEL PIN valve block to pump housing

4шт.

4

A47309

PIN

headless, 1/4" x 1/2"

2шт.

5

N8302

PLUG

charge circuit relief valve

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

charge circuit relief valve

1шт.

7

N8301

SPRING

charge circuit relief valve

1шт.

8

115834A1

VALVE POPPET

POPPET charge circuit relief valve

1шт.

9

N7923

PLUG

drive circuit relief valve

4шт.

10

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

drive circuit relief valve

4шт.

11

N7925

SPRING

drive circuit relief valve

4шт.

12

N7927

VALVE

CARTRIDGE drive circuit relief valve

4шт.

D123774

VALVE

CIRCUIT RELIEF VALVE optional, must be installed in all four circuit relief, Inc: Ref. 13 - 14, valve locations, replaces items 9-12 above, if use optional drive circuit relief valve allows machine to be towed

4шт.

13

NSS

NOT SOLD SEPARAT

CARTRIDGE ASSEMBLY circuit relief valve, optional drive circuit relief valve allows machine to be towed

1шт.

14

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

circuit relief valve, optional drive circuit relief valve allows machine to be towed

1шт.
